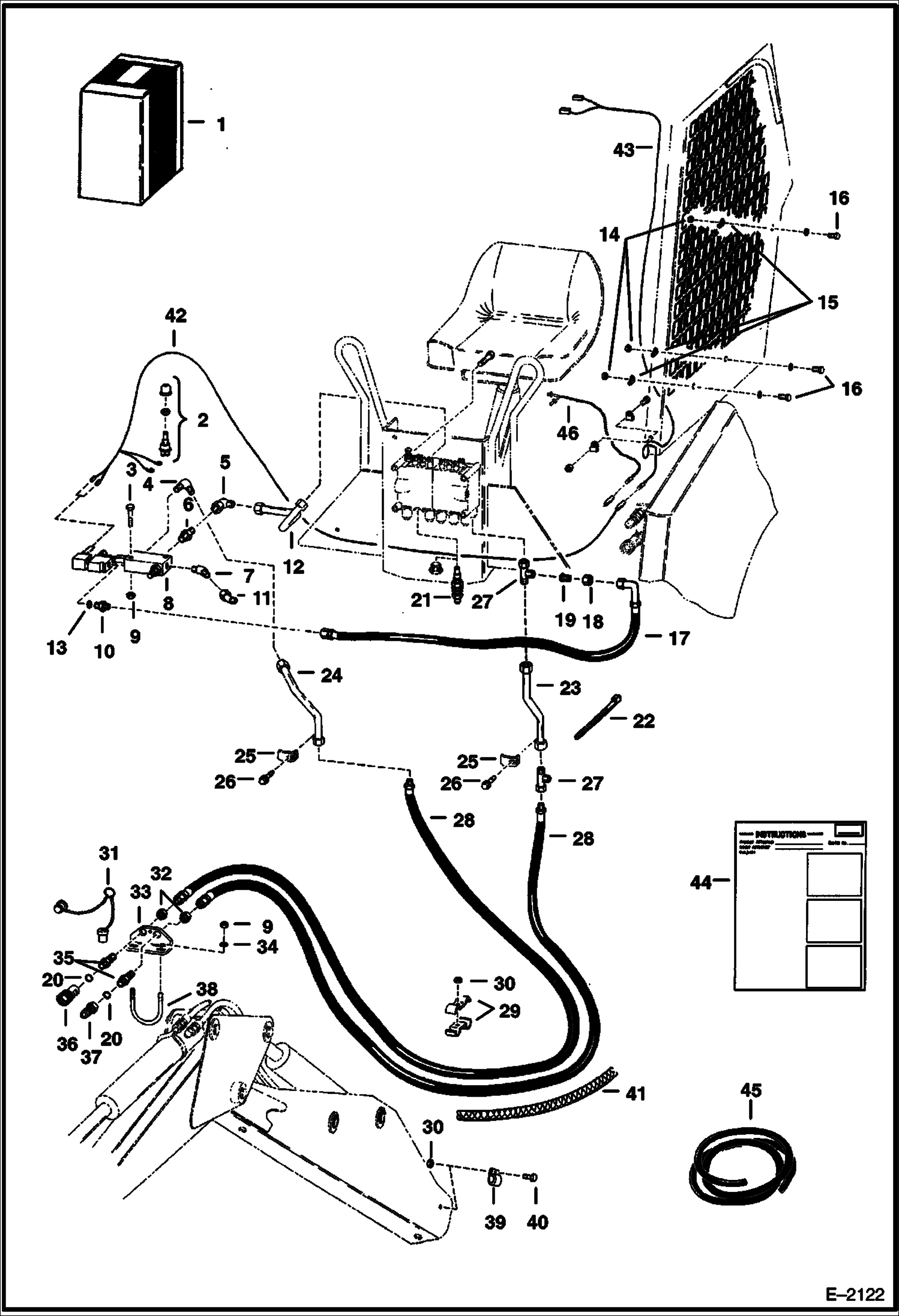

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker Backhoe Mtg) (Use on 811) Loader

1

6712033

KIT W/Ref. 2 - 46 - Was SALES - A

2

6632973

SWITCH horn - Was 6654809 - A

2

VALVE, AUX NLA - Use 6692330 - Was 6685738 - A

3

17C532

BOLT 5

4

83F7

ELBOW pipe threads

4

17KB1008

FITTING, HYD ELBOW o-ring boss threads

5

11K7

ADAPTER

6

89F7

ADAPTOR pipe threads

6

15KB1008

FITTING, HYD CONNECTOR o-ring boss threads

7

84F7

ELBOW HYDR 45 MALE pipe threads

7

18KB1008

FITTING, HYD ELBOW o-ring boss threads

8

VALVE See Illustration BREAKER/ B13650 NLA - Use W/ pipe fittings - Order 6688736, 17KB-1008, 15KB-1008, 18KB-1008 - Was 6593217 - A

8

VALVE, AUX See Illustration BREAKER/ B13650 NLA - Use W/ O-Ring boss fitting - Was 6692330 - A

9

91D5

NUT 5 Was 81D000005B - A

10

15K5

FITTING W/Ref. 13

11

12K7

UNION

12

6539465

TUBE

13

79K6

O RING 10

14

61D4

NUT 5

15

30H21

CLAMP 10

16

17C412

BOLT 5

17

6587032

HOSE

18

9K5

ADAPTER

19

80F7

NUT

20

79K10

O RING 10 Use with poppet couplers

20

79K12

O RING 10 Use with flush face couplers

21

VALVE NLA - port relief - Was 6661280 - A

22

6610510

TIE Was 1715312B - A

23

6539466

TUBE

24

6539464

TUBE

25

6562266

CLAMP

26

84G3728

BOLT

27

13K7

FITTING

28

6587031

HOSE

29

6591804

CLAMP

30

81D6

NUT

31

6513709

CAP PLUG

32

86F7

LOCK NUT

33

6537312

PLATE

34

25E15

WASHER

35

45K7

CONNECTR Use with poppet couplers

35

6711625

FITTING Use with flush face couplers

36

6598758

COUPLER, POPPET FEMALE straight

36

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

36

6680017

COUPLER, FF FEMALE heavy duty

37

6598757

COUPLER, POPPET MALE straight

37

6674688

COUPLER, FF MALE straight - Was 6667808 - A

37

6679841

SEAL Was 6672026 - A

38

6537314

KEY

39

30H46

CLIP

40

17C612

BOLT 5

41

HOSE COVER NLA - 45'' (1143mm) long - Order Ref. 45 - Was 6533944 - A

42

6537982

HARNESS

43

6538634

HARNESS

44

6720652

INSTRUCTIONS

45

6650108

HOSE COVER bulk - Sold Per Foot

46

6813379

HARNESS 40'' long - for F-series & later loaders
