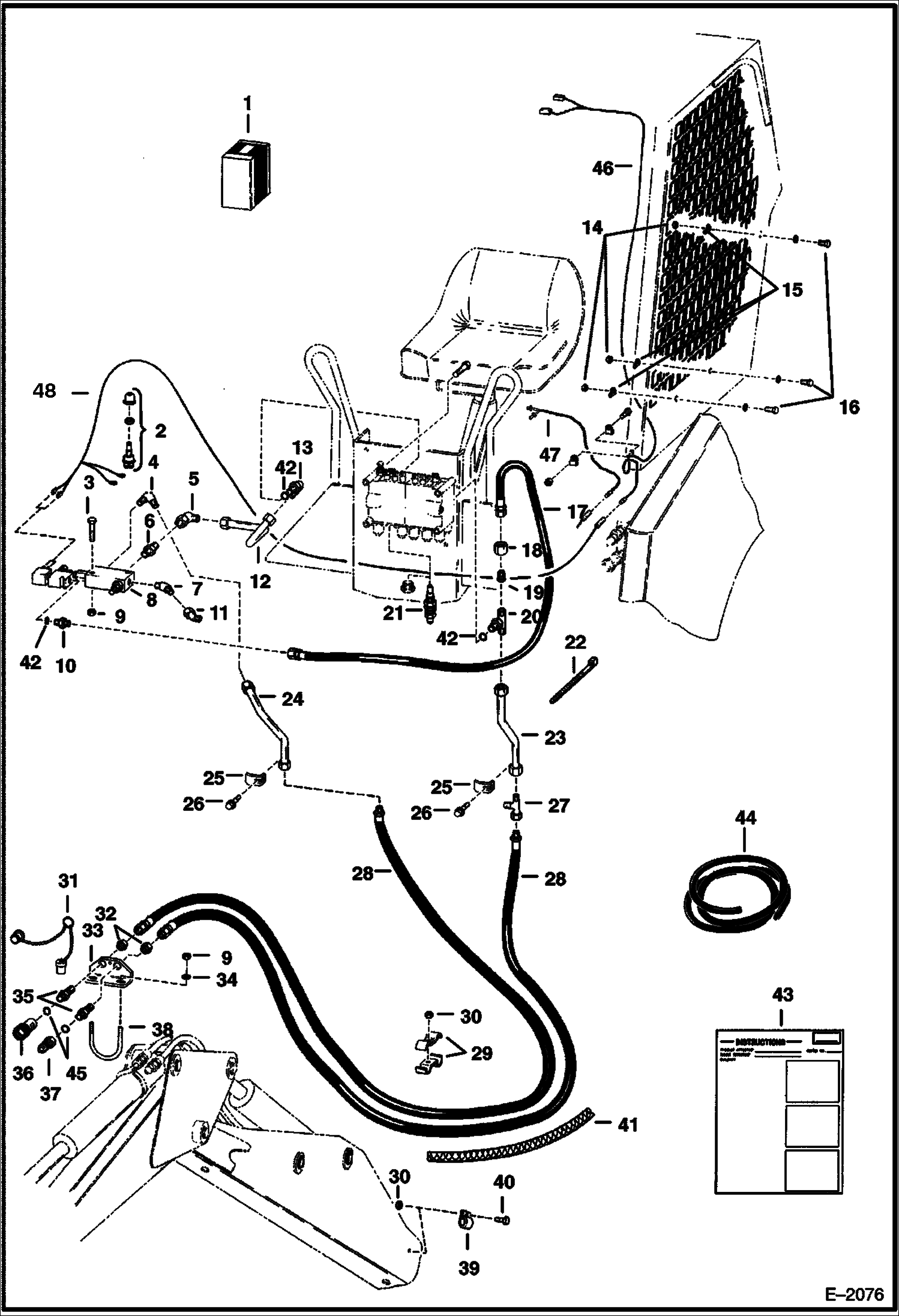

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker Backhoe Mtg) (Use on 607, 709) Loader

1

6712030

KIT W/Ref. 2-48 - Does not work with Nimco control valve - Was SALES - A

2

6632973

SWITCH horn - Was 6654809 - A

3

17C532

BOLT 5

4

6586321

ELBOW pipe threads

4

17KB1008

FITTING, HYD ELBOW o-ring boss threads

5

11K7

ADAPTER

6

6586345

ADAPTER pipe threads

6

15KB1008

FITTING, HYD CONNECTOR o-ring boss threads

7

6586322

ELBOW pipe threads

7

18KB1008

FITTING, HYD ELBOW o-ring boss threads

8

VALVE NLA - Use W/ pipe fittings - Order 6688736, 17KB-1008, 15KB-1008, 18KB-1008 - Was 6593217 - A

8

VALVE, AUX NLA - Use W/ O-Ring boss fitting - Was 6692330 - A

9

91D5

NUT 5 Was 81D000005B - A

10

15K5

FITTING W/Ref. 42

11

12K7

UNION

12

6537977

TUBELINE

13

17K7

ELBOW W/Ref. 42

14

61D4

NUT 5

15

30H21

CLAMP 10

16

17C412

BOLT 5

17

6618194

HOSE

18

9K5

ADAPTER

19

80F7

NUT

20

19K7

TEE W/Ref. 42

21

6658685

RELIEF VALVE port relief

22

6610510

TIE Was 1715312B - A

23

6537979

TUBELINE

24

6537978

TUBELINE

25

6562266

CLAMP

26

84G3728

BOLT

27

13K7

FITTING

28

6537976

HOSE

29

6591804

CLAMP

30

81D6

NUT

31

6513709

CAP PLUG

32

86F7

LOCK NUT

33

6537312

PLATE

34

25E15

WASHER

35

45K7

CONNECTR Use with poppet couplers

35

6711625

FITTING Use with flush face couplers

36

6598758

COUPLER, POPPET FEMALE straight

36

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

36

6680017

COUPLER, FF FEMALE heavy duty

37

6598757

COUPLER, POPPET MALE straight

37

6674688

COUPLER, FF MALE straight - Was 6667808 - A

37

6679841

SEAL Was 6672026 - A

38

6537313

U-BOLT

39

30H46

CLIP

40

17C612

BOLT 5

41

HOSE COVER NLA - 45''(1143mm) long - Order Ref. 44

42

79K6

O RING 10

43

6720652

INSTRUCTIONS

44

6656155

HOSE COVER bulk - sold per foot

45

79K10

O RING 10 Use with poppet couplers

45

79K12

O RING 10 Use with flush face couplers

46

6538634

HARNESS

47

6813379

HARNESS 40'' long - for F-series & later loaders

48

6537982

HARNESS
