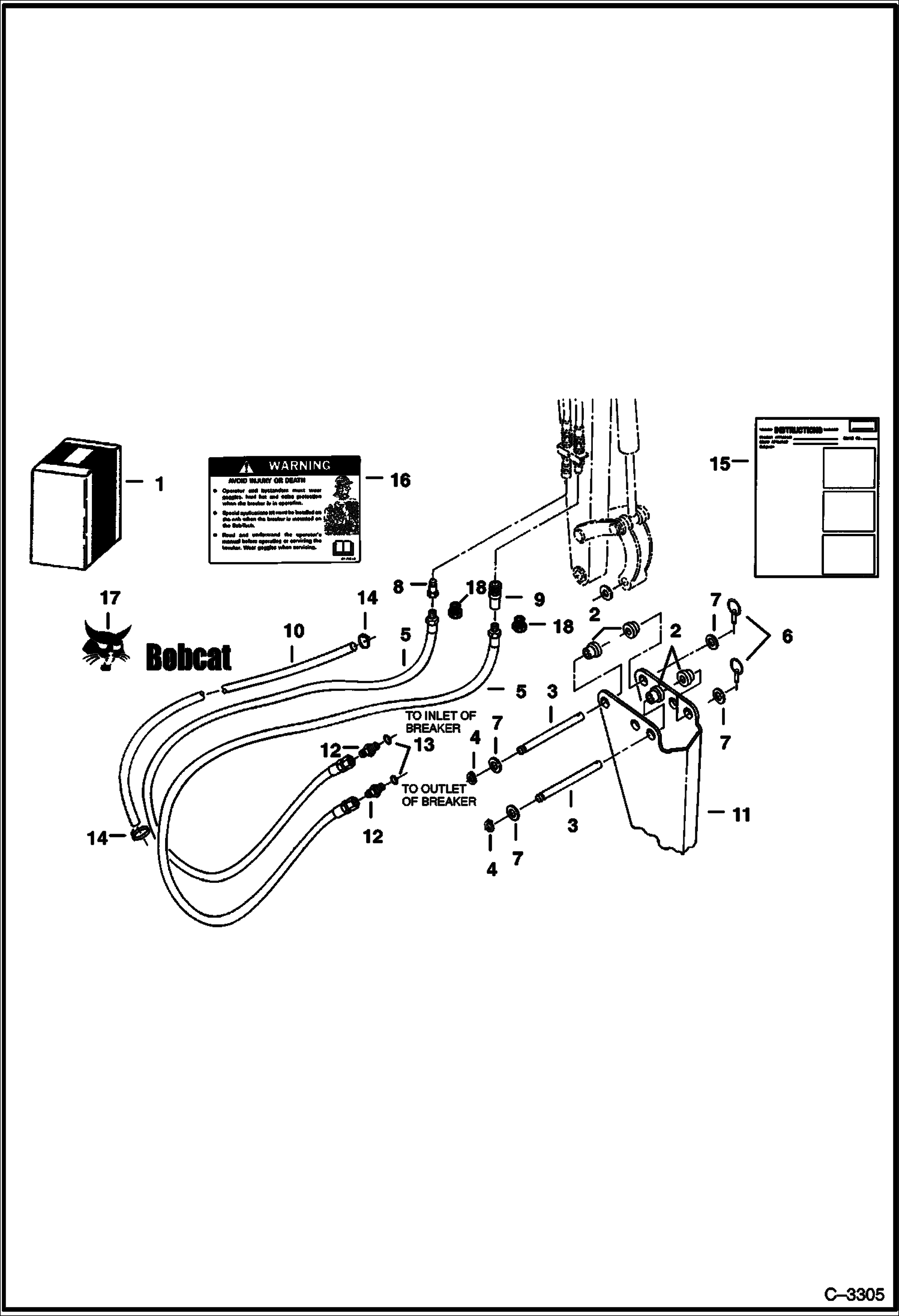

Запчасти Bobcat BREAKERS BREAKER (Breaker Mounting Kit) (2500X) (Use on 709 Backhoe) Loader

1

KIT SALES - Ref. 2 - 15

2

6539009

BUSHING

3

6539008

PIN

4

6538285

LOCK RING

5

6538809

HOSE

6

6560382

PIN, LOCK retaining

7

6584872

WASHER

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

6680017

COUPLER, FF FEMALE heavy duty

10

6656155

HOSE COVER bulk - sold per foot

11

6657379

BRACKET

12

15K8

FITTING W/Ref. 13

13

79K12

O RING 10

14

6610510

TIE Was 1715312B - A

15

6720424

INSTRUCTION

16

6572074

DECAL

17

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

17

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

18

6668096

ADAPTER Use with flush face couplers
