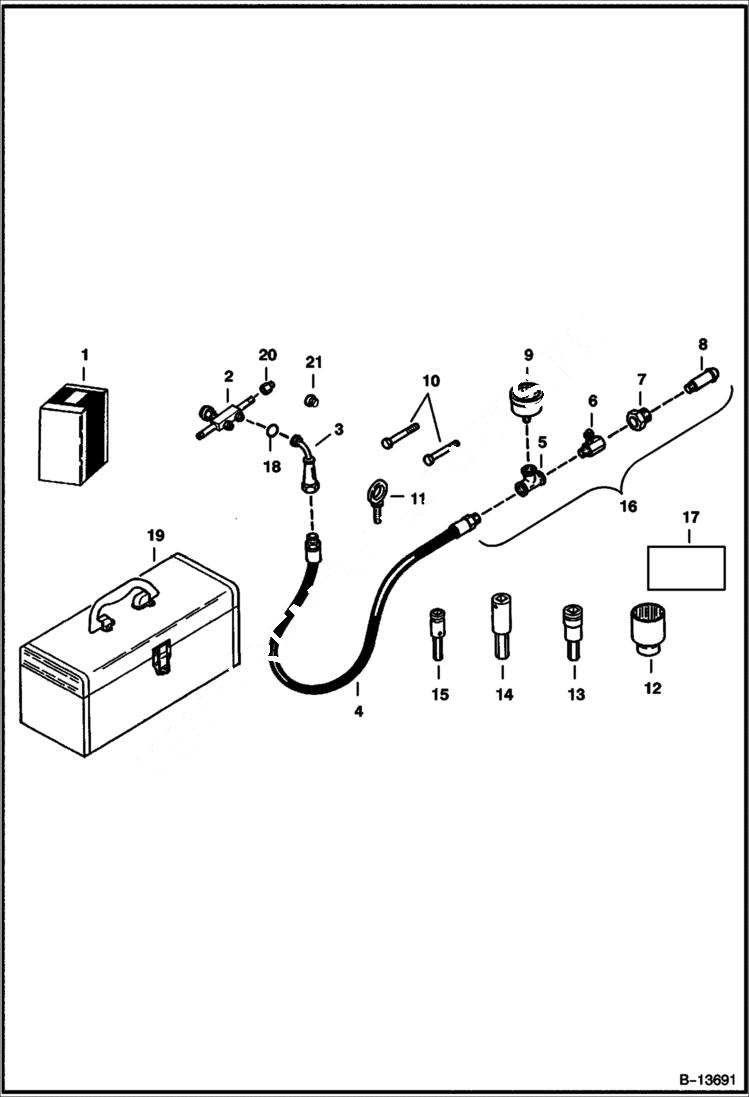

Запчасти Bobcat BREAKERS BREAKER (Charge Kit) (Use on all breakers except 1250) Loader

1

6568037

KIT, HAMMER CHARGE Hydraulic Breaker Service - Ref. 2 - 20 - Was Sales - A

2

6630651

TOOL

3

6630659

SWIVEL

4

6660839

HOSE

5

6651644

TEE

6

6651645

SNUBBER

7

6630655

NUT inlet

8

6651646

NIPPLE

9

GAUGE NLA - pressure - Was 6651643 - A

10

17C524

BOLT

11

6660840

EYE lifting

12

6660841

SOCKET

13

6660842

HEX DRIVER 1/2'' (12,7mm)

14

6660843

HEX DRIVER 5/8'' (15,88mm)

15

6661199

HEX DRIVER 3/4'' (19,05mm)

16

6630653

KIT charging - Ref. 3 - 9

17

6630652

DECAL

18

6630660

GASKET

19

6660838

TOOL BOX

20

6661802

ADAPTER .3125 - Used on 2560, 3560, 2570 & 3570 breakers

21

ADAPTER NSS - order Ref. 3
