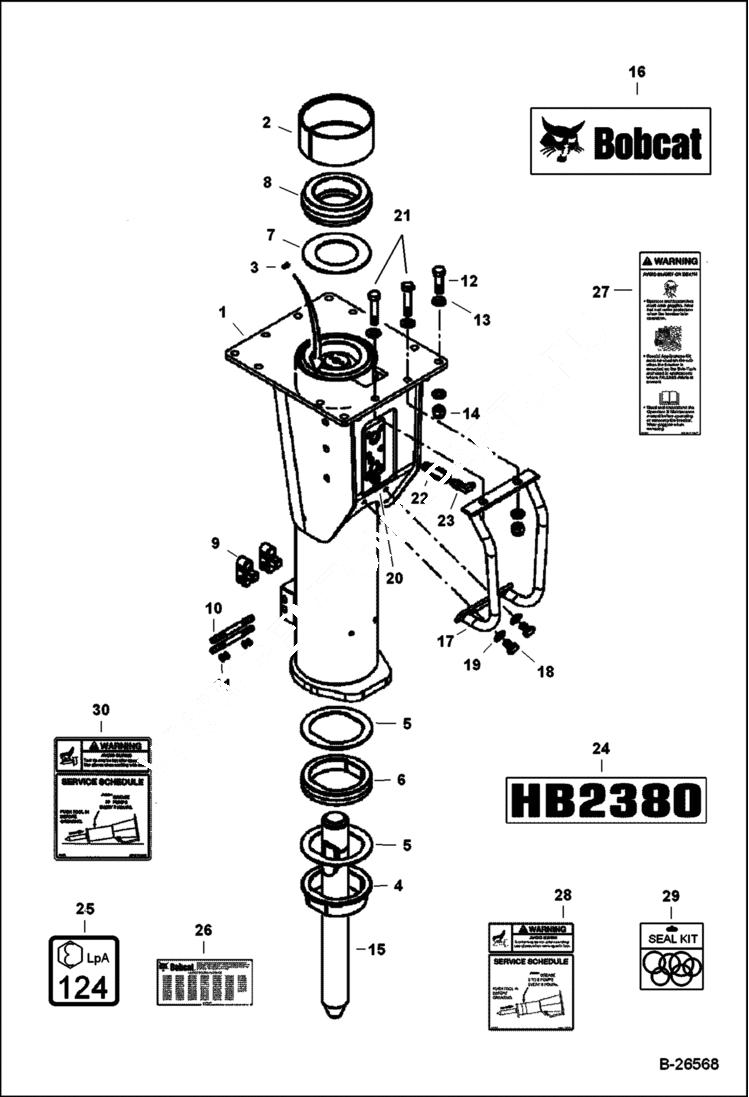

Запчасти Bobcat BREAKERS BREAKER (Main Frame & Attaching Parts) (HB2380 A5T6) Loader

1

86656667

HOUSING

2

86647187

CLAMP

3

86226768

PIN Was 86234028 - A

4

86646130

BUSHING

5

86646148

SPACER

6

86646163

BUSHING

7

86646155

DISK

8

86646189

MOUNT

9

86654662

RETAINER

10

86645785

PIN

11

86645777

RING

12

1CM2070

SCREW

13

86228285

WASHER Was 86303369 - A

14

40DM20

NUT

15

TOOL See Illustration BREAKER/ MS2127D

16

7109473

DECAL, LOGO BOBCAT AND HEAD

17

86656766

GUARD

18

86424488

BOLT

19

WASHER NLA - Was 86309812 - A

20

86448545

NUT

21

1CM2080

SCREW

22

86640364

ADAPTER

23

95280186

ELBOW

24

7133454

DECAL model HB2380

25

86602273

DECAL decibel

26

DECAL NLA - patent - Was 7158126 - C

27

7112677

DECAL, WARNING See Illustration BREAKER/ NA6236

27

7193690

DECAL, WARNING See Illustration BREAKER/ NA6236 - no-text

28

7136743

DECAL service schedule

29

86662715

SEAL KIT complete - Was 86647443 - A

30

7112678

DECAL, SERVICE See Illustration BREAKER/ NA6236

30

7193689

DECAL, SERVICE See Illustration BREAKER/ NA6236 - no-text
