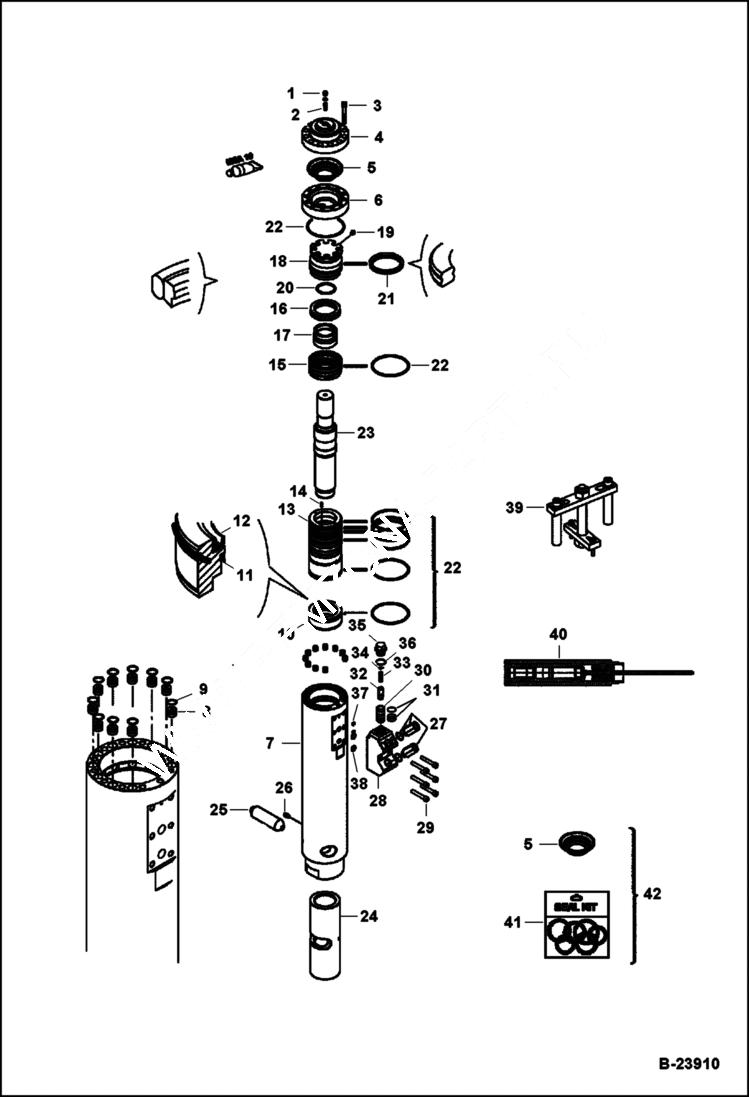

Запчасти Bobcat BREAKERS BREAKER (Internal Parts) (HB1380) Loader

1

6676691

PLUG

2

6679894

VALVE

3

95847927

BOLT

4

86672755

FLANGE

5

86654688

DIAPHRAGM

6

86665213

FLANGE

7

86665221

HOUSING, BREAKER

8

86639275

PLUG

9

O-RING NSS Order Seal Kit

10

86665239

CARRIER, SEAL

11

SEAL NSS

12

SEAL, LIP NSS - backup - Order Ref. 14 Seal Kit

13

86665247

CYLINDER, HYD BREAKER

14

86640976

PIN

15

86665254

RING, DISTRIBUTOR

16

86665262

VALVE, BREAKER

17

86665270

DISTRIBUTOR, BREAKER

18

86665288

COVER, PISTON

19

86418365

PLUG

20

SEAL, ROD NSS

21

SEAL, QUAD RING NSS

22

O-RING NSS

23

86665296

PISTON, HYD BREAKER

24

86665304

BUSHING, BREAKER HYD

25

86665312

PIN, RETAINER

26

6693011

GREASE ZERK

27

86640364

ADAPTER

28

86675592

BLOCK, BREAKER

29

86676970

BOLT

30

86645918

CARRIER

31

O-RING NSS

32

86670460

PISTON, HYD BREAKER

33

86605417

SPRING

34

86719416

SPACER Was 86605409 - A

35

86645892

PLUG

36

O-RING NSS

37

O-RING NSS

38

O-RING NSS

39

86681020

TOOL Was 86627965 - A

40

86675873

TOOL, DISMANTLING

41

86675840

KIT, SEAL W/Ref. 9, 11, 12, 20-22, 31 & 36-38

42

86675857

KIT, REBUILD W/Ref. 5 & 41
