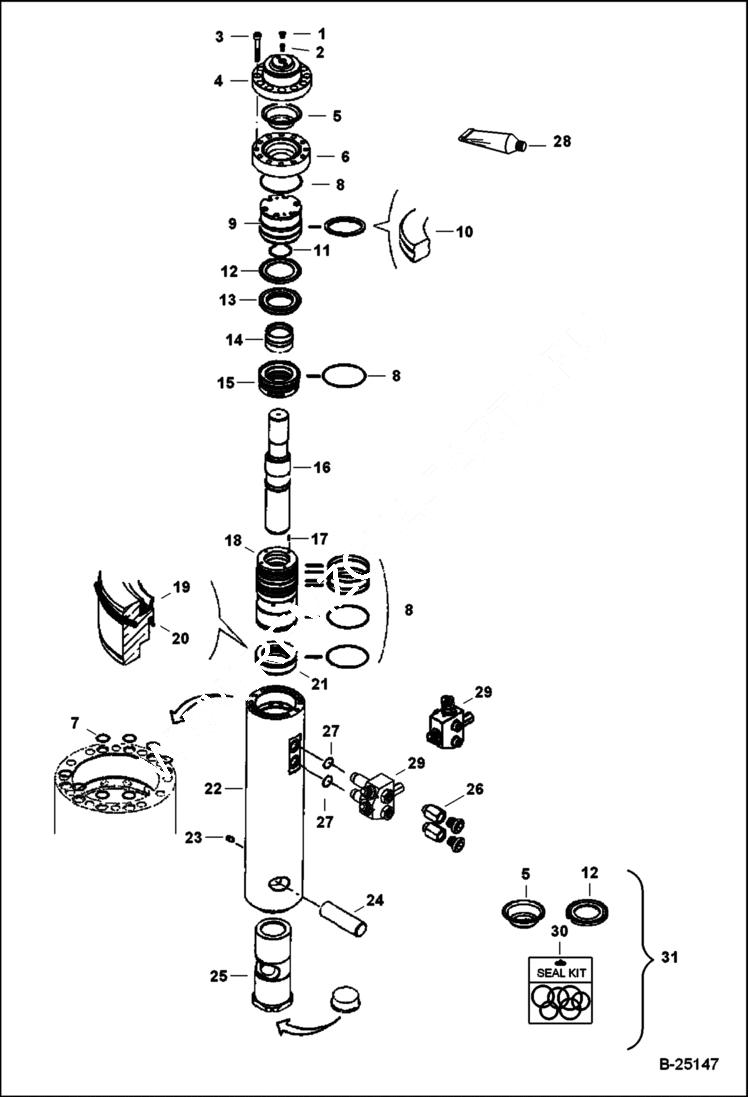

Запчасти Bobcat BREAKERS BREAKER (Internal Parts) (HB980 A00Y) (Use on 329, 331, 331E, 334, 335 ,337, 341, 430, 435) Loader

1

6676691

PLUG

2

6679894

VALVE charge

3

86626009

BOLT

4

86624319

FLANGE upper

5

86633930

DIAPHRAGM W/Ref. 33

6

86624301

FLANGE lower

7

O-RING NSS - Order Ref. 28

8

O-RING NSS - Order Ref. 28

9

86637816

COVER piston

10

SEAL NSS - quad ring - Order Ref. 28

11

SEAL NSS - rod - Order Ref. 28

12

86637808

VALVE pressure regulator

13

86626421

COVER distributor

14

86624400

DISTRIBUTOR

15

86626413

RING distributor

16

86624459

PISTON

17

86624160

PIN

18

86626405

CYLINDER, BREAKER HYD

19

SEAL NSS - lip - Order Ref. 28

20

SEAL NSS - scraper - Order Ref. 28

21

86624343

CARRIER seals

22

86624335

HOUSING

23

6693011

GREASE ZERK Was 6676685 - A

24

86624475

PIN, SHAFT BREAKER Use W/external clamp

24

86693777

PIN, RETAINER Use W/internal clamp

25

86624467

BUSHING, BREAKER HYD

26

86631199

ADAPTER Not Used W/Ref. 29

27

79K12

O RING 10

28

LUBRICANT NSS - Order Ref. 28

29

VALVE, DIVERTER See Illustration BREAKER/ NA2342 - For Use on approved carriers with hydraulic flow of 23 GPM or higher

29

VALVE, DIVERTER See Illustration BREAKER/ NA2993 - For Use on approved carriers with hydraulic flow of 23 GPM or higher

30

86633070

KIT, SEAL W/Ref. 7, 8, 10, 11, 19, 20 & 28

31

86638988

KIT, REBUILD Ref. 5, 12 & 30
