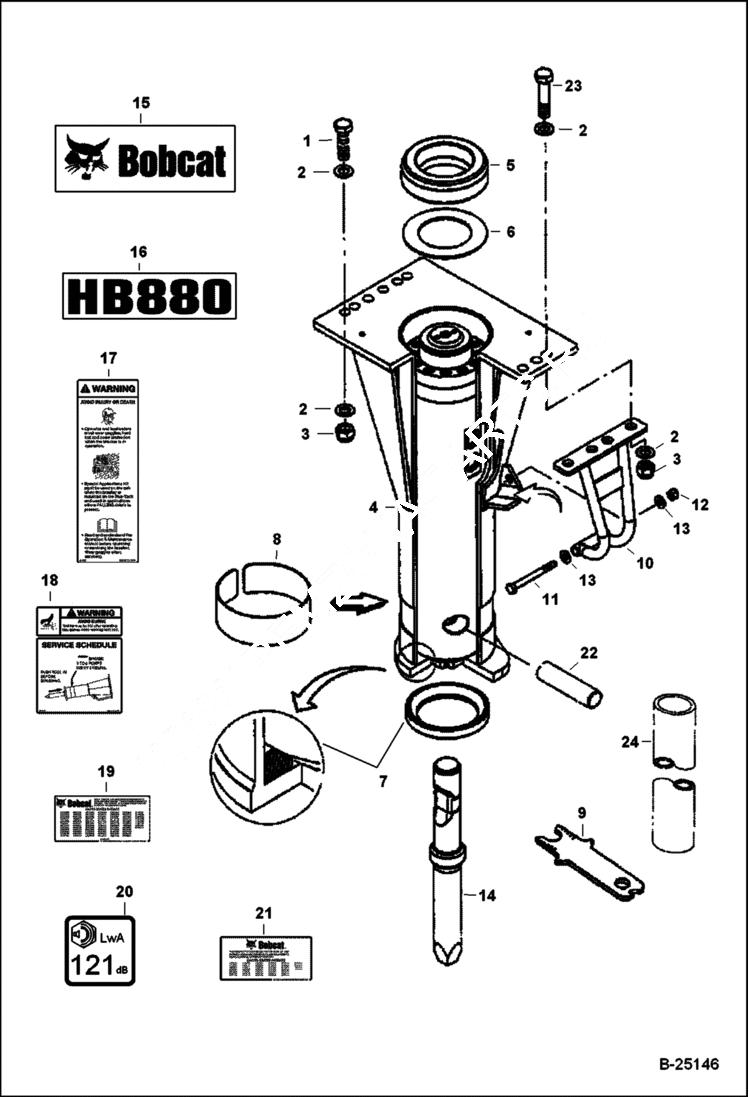

Запчасти Bobcat BREAKERS BREAKER (Main Frame & Attaching Parts) (HB880 A00X) Loader

1

1CM2070

SCREW Was 86578051 - D

2

86228285

WASHER

3

40DM20

NUT Was 86259264 - A

4

HOUSING NLA - Use W/external clamp - Order 86693728 housing, 86693736 clamp, 86693744 pin & 86694544 tool - Was 86624772 - A

4

86693728

HOUSING, BREAKER Use W/internal clamp

5

86624798

MOUNT shock absorber - upper

6

86624806

DISK support

7

86624780

MOUNT shock absorber - lower

8

86624814

CLAMP retaining - Use W/external clamp

8

86693736

CLAMP, BREAKER retaining - Use W/internal clamp

9

86629227

TOOL Use W/external clamp

9

86694544

TOOL, MAINTENANCE Use W/internal clamp

10

86636602

GUARD

11

86636628

BOLT

12

40DM16

NUT Was 86226123 - A

13

86384898

WASHER

14

TOOL See Illustration BREAKER/ MS2128

15

7109473

DECAL, LOGO BOBCAT AND HEAD

16

7112675

DECAL Model HB880

17

7112677

DECAL, WARNING See Illustration BREAKER/ NA6236

17

7193690

DECAL, WARNING See Illustration BREAKER/ NA6236 - no-text

18

7112678

DECAL, SERVICE See Illustration BREAKER/ NA6236

18

7193689

DECAL, SERVICE See Illustration BREAKER/ NA6236 - no-text

19

DECAL NLA - patent - Was 6557224 - C

20

86602240

DECAL decibel

21

DECAL NLA - patent - IR - Was 86638301 - A

21

DECAL NLA - patent - Was 7158126 - C

22

86624764

PIN retaining - Use W/external clamp

22

86693744

PIN, RETAINER retaining - Use W/internal clamp

23

1CM2080

SCREW Was 86640950 - A

24

86632874

TUBE dismantling - HB880
