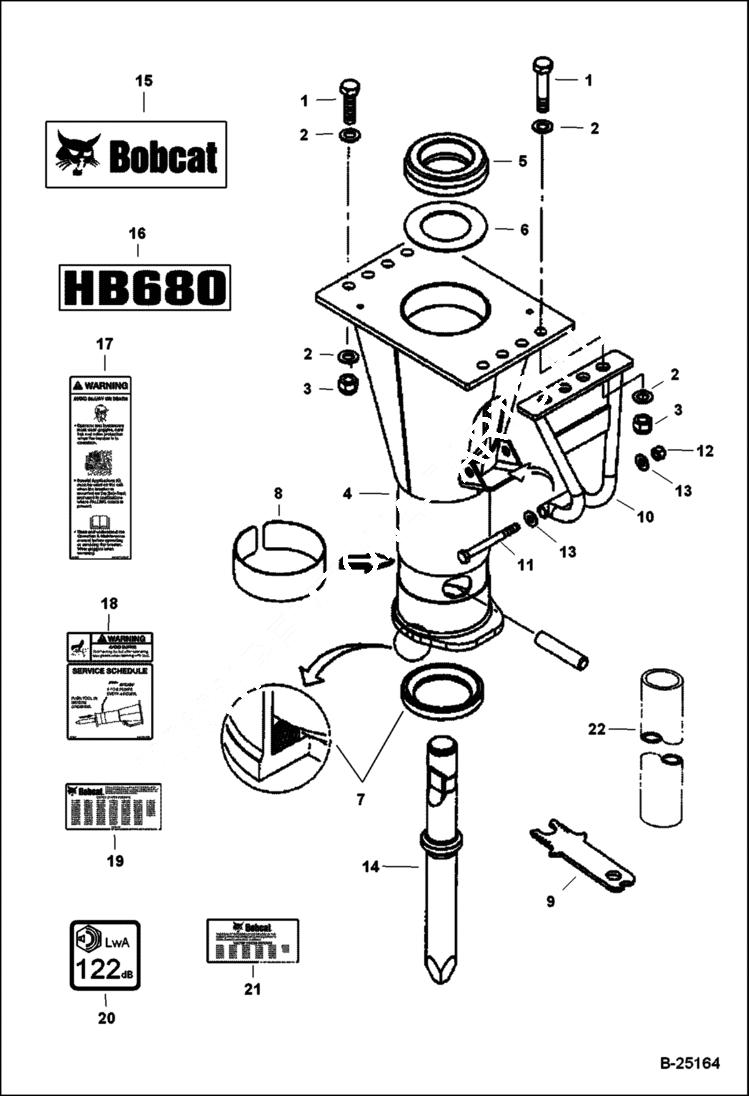

Запчасти Bobcat BREAKERS BREAKER (Main Frame & Attaching Parts) (HB680 A00W) Loader

1

1CM2070

SCREW Was 86578051 - D

2

86228285

WASHER

3

40DM20

NUT Was 86259264 - A

4

86625597

HOUSING

5

86625613

MOUNT shock absorber - upper

6

86625621

DISK support

7

86625605

MOUNT shock absorber - lower

8

86625639

CLAMP retaining

9

86629235

TOOL

10

86636594

GUARD

11

86636784

BOLT

12

40DM16

NUT Was 86226123 - A

13

86384898

WASHER

14

TOOL See Illustration BREAKER/ MS2127B

15

7109473

DECAL, LOGO BOBCAT AND HEAD

16

7112674

DECAL model HB680

17

7112677

DECAL, WARNING See Illustration BREAKER/ NA6236

17

7193690

DECAL, WARNING See Illustration BREAKER/ NA6236 - no-text

18

7112678

DECAL, SERVICE See Illustration BREAKER/ NA6236

18

7193689

DECAL, SERVICE See Illustration BREAKER/ NA6236 - no-text

19

DECAL NLA - patent - Was 6557224 - C

20

86602257

DECAL decibel

21

DECAL NLA - patent - IR - Was 86638301 - A

21

DECAL NLA - patent - Was 7158126 - C

22

86632882

TUBE dismantling - HB680
