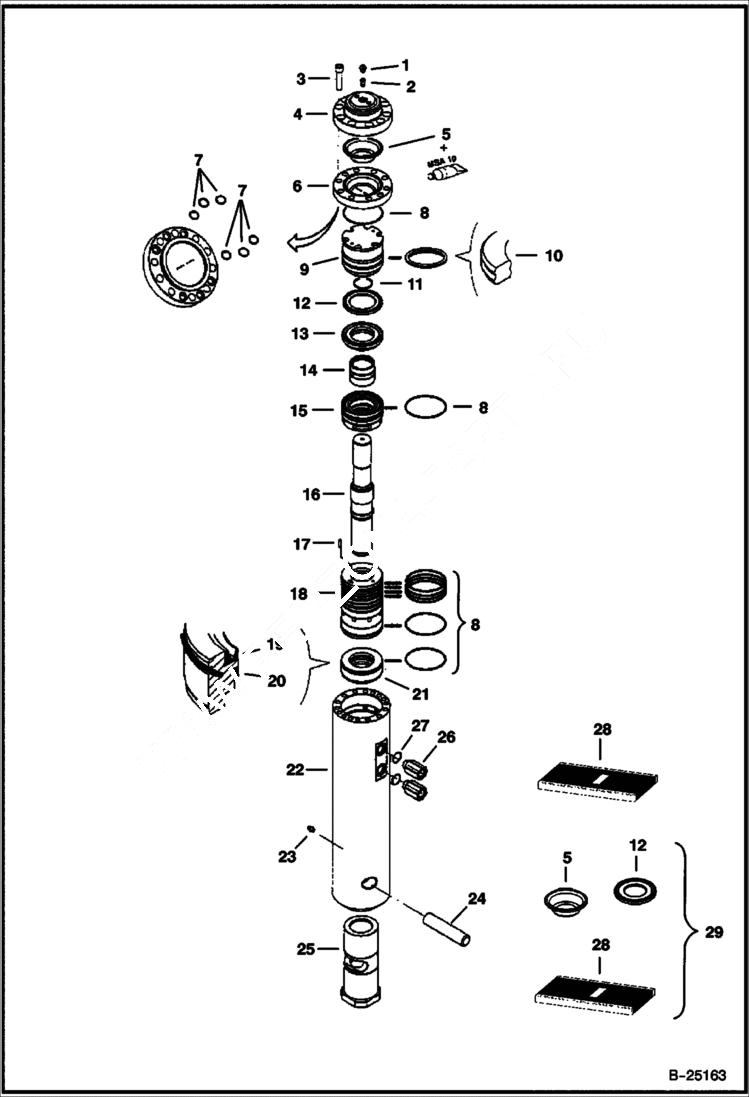

Запчасти Bobcat BREAKERS BREAKER (HB680) Loader

1

6676691

PLUG

2

6679894

VALVE charge

3

86626066

BOLT

4

86625472

FLANGE upper

5

86633948

DIAPHRAGM

6

86625464

FLANGE lower

7

O-RING NSS - Order Ref. 28 seal kit

8

O-RING NSS - Order Ref. 28 seal kit

9

86625563

COVER piston

10

SEAL quad ring - NSS - Order Ref. 28 seal kit

11

O-RING NSS - Order Ref. 28 seal kit

12

86626660

VALVE pressure regulator

13

86625555

COVER distributor

14

86625548

DISTRIBUTOR

15

86625530

RING distributor

16

86625522

PISTON

17

86624160

PIN

18

86625514

CYLINDER

19

SEAL lip - NSS - Order Ref. 28 seal kit

20

SEAL scraper - NSS - Order Ref. 28 seal kit

21

86625506

CARRIER seals

22

86625498

HOUSING

23

6693011

GREASE ZERK Was 6676685 - A

24

86625647

PIN retaining

25

86625571

BUSHING

26

86632361

ADAPTER

27

79K12

O RING 10

28

86633013

SEAL KIT W/Ref. 7, 8, 10, 11, 19 & 20

29

86638962

REBUILD KIT Includes Ref. 5, 12 & 28
