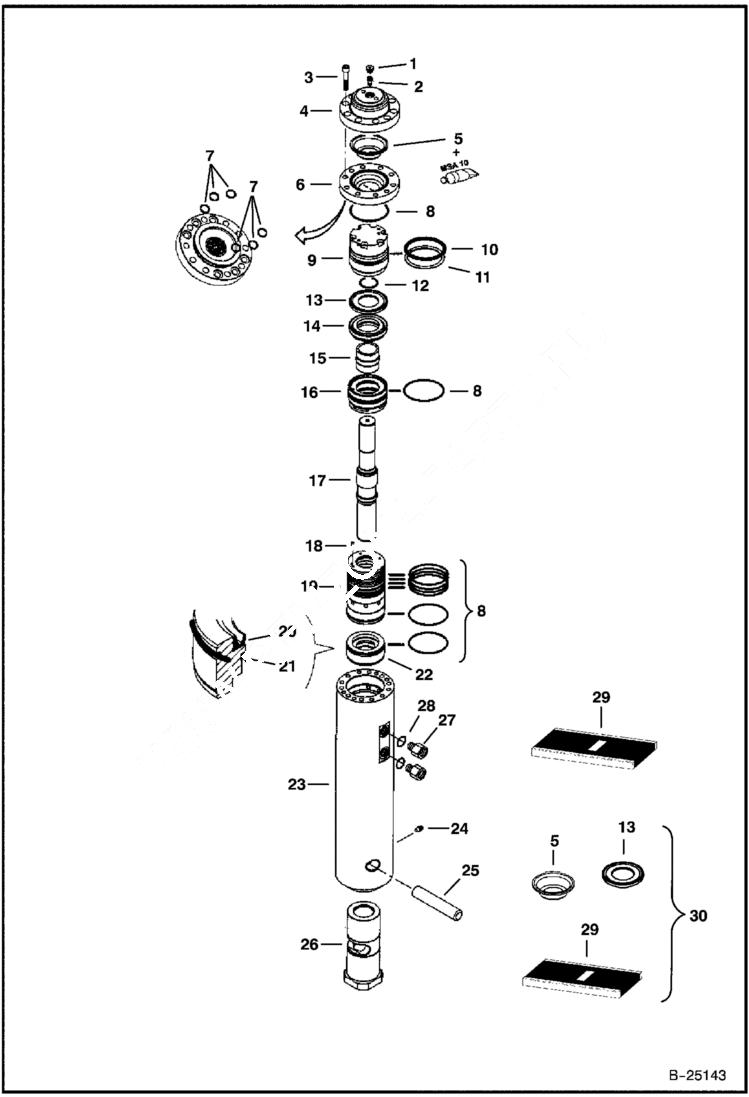

Запчасти Bobcat BREAKERS BREAKER - EUROPE ONLY (HB580) Loader

1

6676691

PLUG

2

6679894

VALVE charge

3

86610920

BOLT

4

86620713

FLANGE upper

5

6676701

DIAPHRAGM Was 6693009 - A

6

86620705

FLANGE lower

7

O-RING NSS - Order Ref. 29 seal kit

8

O-RING NSS - Order Ref. 29 seal kit

9

86622263

COVER piston

10

SEAL quad ring - NSS - Order Ref. 29 seal kit

11

RING NSS - Order Ref. 29 seal kit

12

SEAL rod - NSS - Order Ref. 29 seal kit

13

86640745

VALVE pressure regulator - Was 86622271 - A

14

86622255

COVER distributor

15

86620671

DISTRIBUTOR

16

86622859

RING distributor

17

86620648

PISTON

18

86624160

PIN

19

86622842

CYLINDER

20

SEAL lip - NSS - Order Ref. 29 seal kit

21

SEAL scraper - NSS - Order Ref. 29 seal kit

22

86620689

CARRIER seals

23

86620622

HOUSING

24

6693011

GREASE ZERK Was 6676685 - A

25

86620762

PIN retaining

26

86620721

BUSHING

27

86626900

ADAPTER

28

79K12

O RING 10

29

86627882

SEAL KIT W/Ref. 7, 8, 10, 11, 12, 20 & 21

30

86638954

REBUILD KIT Includes Ref. 5, 13 & 29
