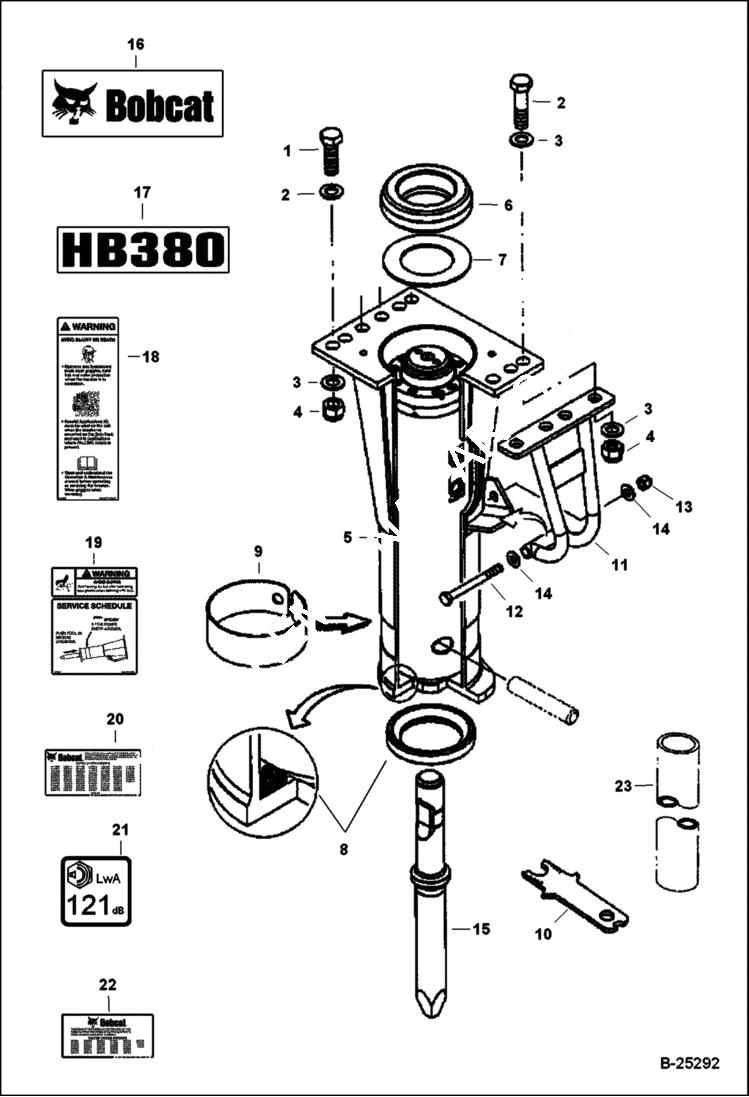

Запчасти Bobcat BREAKERS BREAKER - EUROPE ONLY (Main Frame & Attaching Parts) (HB380 A01Q) Loader

1

1CM2060

SCREW Was 86606019 - A

2

1CM2070

SCREW Was 86578051 - D

3

86228285

WASHER

4

40DM20

NUT Was 86259264 - A

5

86631108

HOUSING

6

86631173

MOUNT shock absorber - upper

7

86631124

DISK support

8

86631165

MOUNT shock absorber - lower

9

86631157

CLAMP retaining

10

86634581

TOOL

11

86636586

GUARD Was 86636578 - A

12

86636636

BOLT

13

86225133

NUT

14

86303351

WASHER

15

TOOL See Illustration BREAKER - EUROPE ONLY/ MS2127

16

7109473

DECAL, LOGO BOBCAT AND HEAD

17

7115516

DECAL HB380

18

7112677

DECAL, WARNING See Illustration BREAKER/ NA6236

18

7193690

DECAL, WARNING See Illustration BREAKER/ NA6236 - no-text

19

7112678

DECAL, SERVICE See Illustration BREAKER/ NA6236

19

7193689

DECAL, SERVICE See Illustration BREAKER/ NA6236 - no-text

20

DECAL NLA - patent - Was 6557224 - C

21

86602240

DECAL decibel

22

DECAL NLA - patent - Was 86638301 - A

22

DECAL NLA - patent - Was 7158126 - C

23

86632890

TUBE dismantling - HB380
