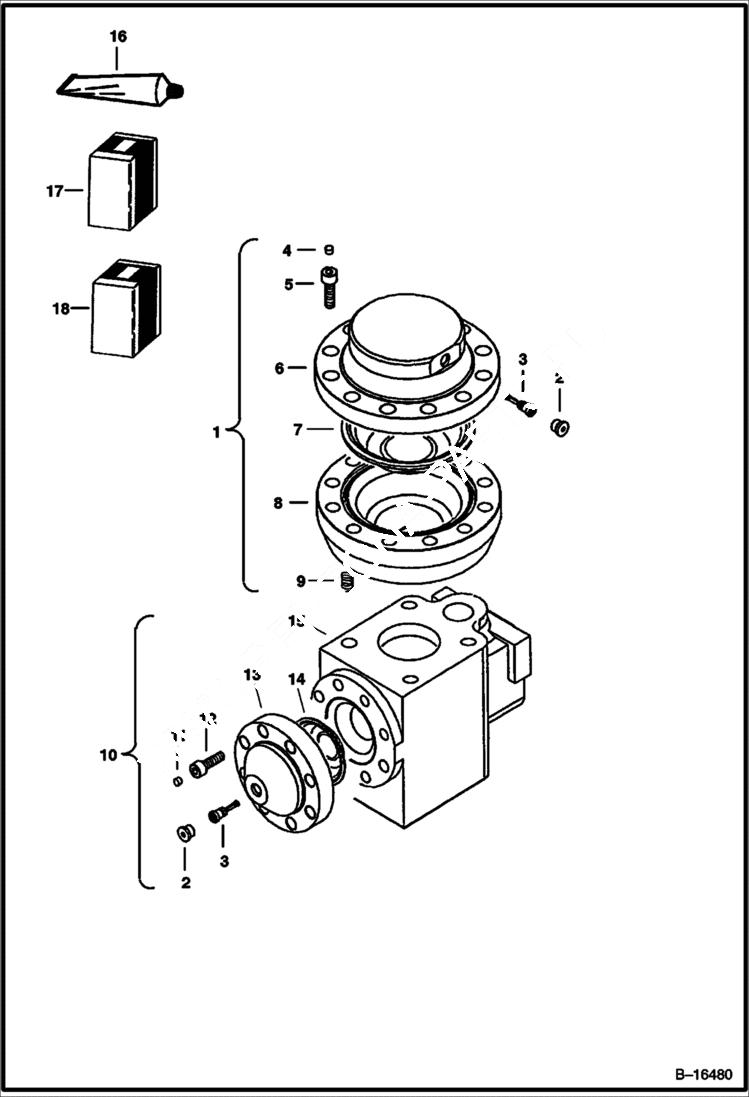

Запчасти Bobcat BREAKERS BREAKER (Energy Chambers) (B700) Loader

1

6676654

ACCUMULATOR energy - W/Ref. 2 - 9

2

6676691

PLUG

3

6679894

VALVE charge - Was 6676692 - A

4

6676693

PLUG

5

6676694

BOLT

6

6679895

COVER Was 6676695 - A

7

DIAPHRAGM NSS - Order Ref. 17 - Was 6676696 - A

8

6676697

FLANGE

9

6676655

HELICOIL

10

HOUSING NLA - Upper - W/Ref. 2, 3 & 11-15 - Order (1) each of 6676702 backhead, 6693009 diaphram, 6679896 cover, 6676699 bolt, 6679894 valve charge, 6676691 plug and (2) of 6693007 plug - Was 6676657

11

6676698

PLUG

12

6676699

PLUG

13

6679896

COVER Was 6676700 - A

14

DIAPHRAGM NSS - Order Ref. 18 - Was 6676701 - A

15

6676702

HOUSING

16

6678767

LUBRICANT Use on diaphragms

17

6731682

KIT diaphragm - W/Ref. 7 & 16

18

6731683

KIT diaphragm - W/Ref. 14 & 16
