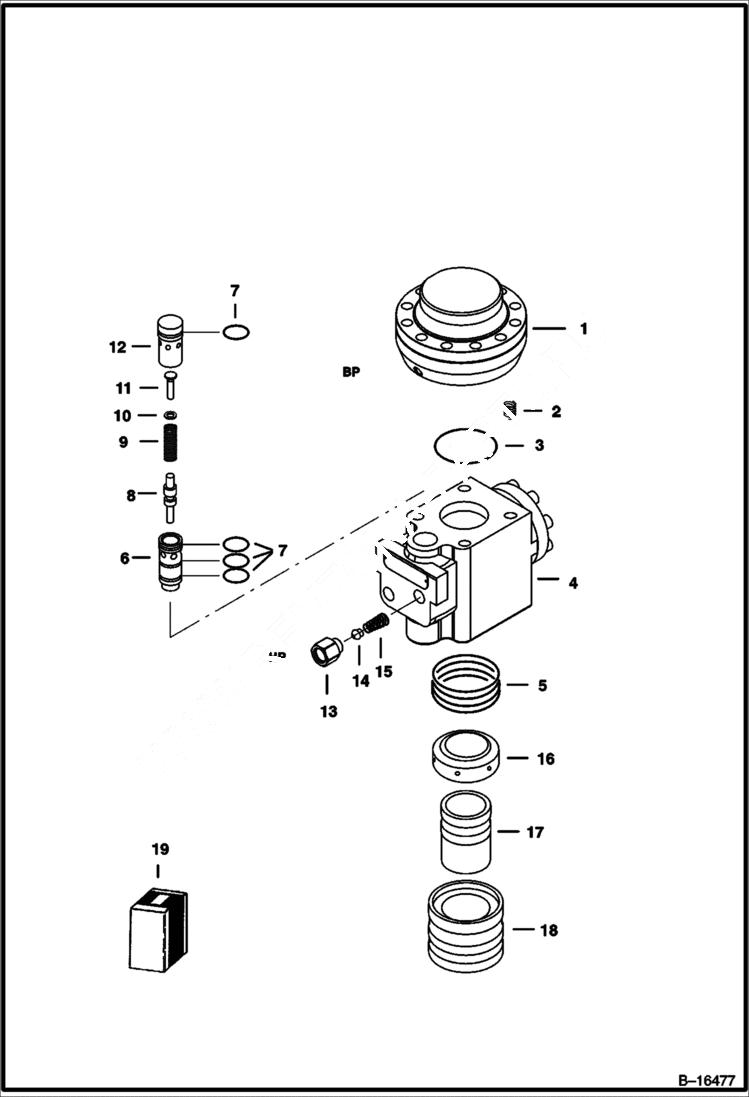

Запчасти Bobcat BREAKERS BREAKER (Upper Housing) (B700) Loader

1

6676654

ACCUMULATOR See Illustration BREAKER/ B16480 W/Ref. 2 - ENERGY

2

6676655

HELICOIL

3

6676656

O-RING

4

HOUSING See Illustration BREAKER/ B16480 NLA - Upper - Order (1) each of 6676702 backhead, 6693009 diaphram, 6679896 cover, 6676699 bolt, 6679894 valve charge, 6676691 plug and (2) of 6693007 plug - W

5

6676558

O-RING Was 6676658 - D

6

LINING NLA - Was 6676659 - A

7

6676660

O-RING

8

86718491

SLIDE Was 6676661 - A

9

6676662

SPRING

10

6676663

SHIM

11

6676664

STOP

12

6676665

PLUG

13

6693006

ADAPTER Was 6676666 - A

14

6676667

VALVE

15

6676668

SPRING

16

6676669

COVER

17

6676670

DISTRIBUTOR

18

6676671

SLEEVE

19

6688649

KIT, SEAL See Illustration BREAKER/ B17897 Ref. 4, 6 & 19 & Ref. 3, 5 & 7 from this ill. - Was 6682439 - A
