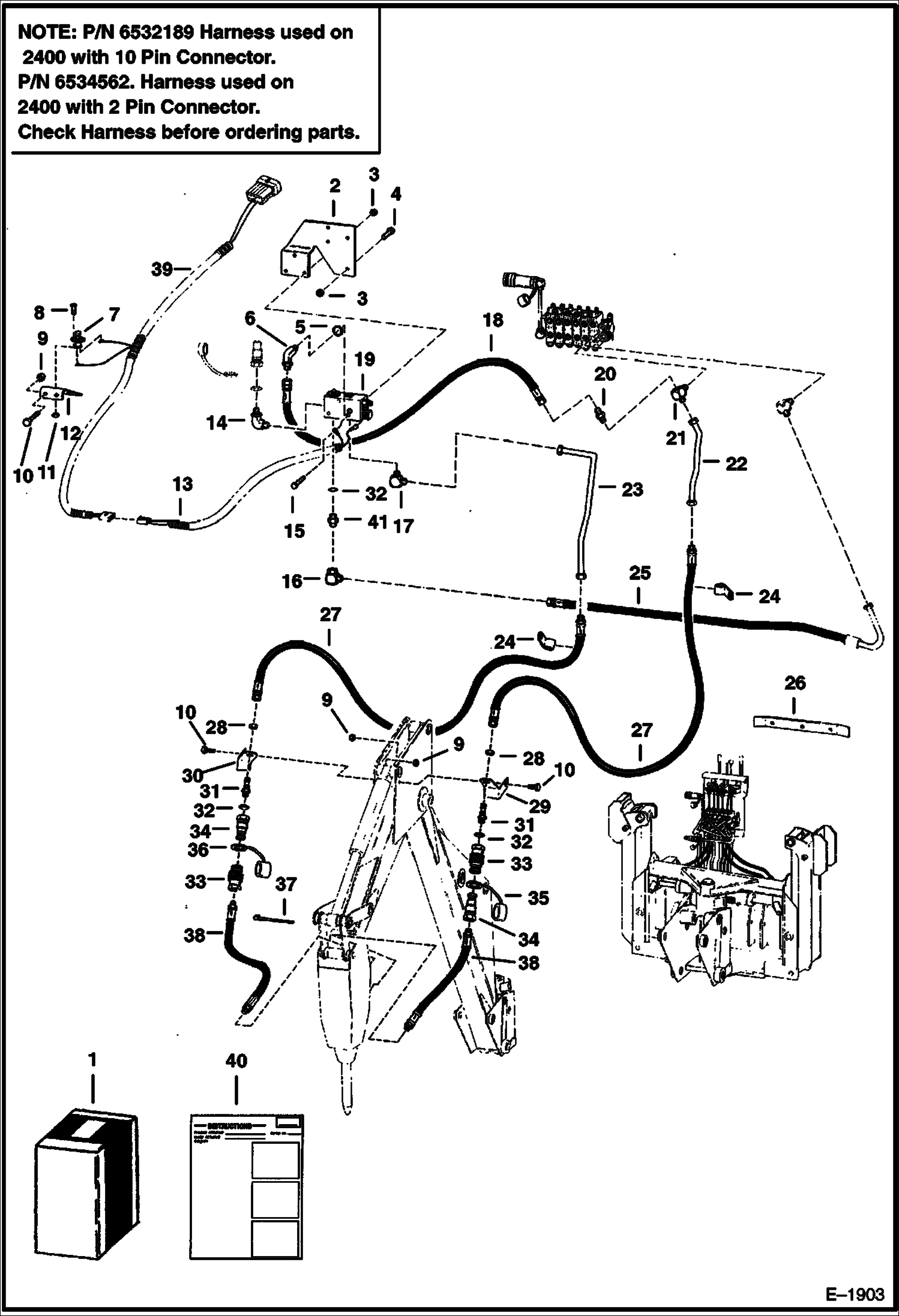

Запчасти Bobcat BREAKERS BREAKER (Breaker Mounting Kit) (5500) (Use on 914B Backhoe) Loader

1

6532183

KIT

2

6532185

MOUNT

3

85D5

NUT 5

4

17C548

BOLT

5

79K4

O RING 10

6

17K3

ELBOW

7

2533656

SWITCH

8

17C412

BOLT 5

9

85D6

NUT, 5

10

17C616

BOLT 5

11

61D4

NUT 5

12

6532215

BRACKET

13

6532190

HARNESS valve

14

6646496

ELBOW

15

17C536

BOLT

16

11K8

ELBOW Was 17K000008B - B

17

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

18

6501769

HOSE

19

6633758

VALVE See Illustration BREAKER/ B11907

20

1308081

ADAPTER

21

6565999

ELBOW

22

6532188

TUBE

23

6532187

TUBE

24

30H50

CLIP

25

6652880

HOSE Was 6651505 - A

26

6532236

CLAMP

27

6534388

HOSE Was 6532191 - A

28

86F8

NUT 5

29

6529525

BRACKET

30

6529524

BRACKET

31

45K8

ADAPTOR

32

79K12

O RING 10

33

6641359

COUPLER poppet

33

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

33

6680017

COUPLER, FF FEMALE heavy duty

34

6641358

COUPLER poppet

34

6674688

COUPLER, FF MALE straight - Was 6667808 - A

34

6679841

SEAL Was 6672026 - A

35

6645232

DUST COVER

36

6645231

DUST COVER

37

6610510

TIE

38

6529526

HOSE

39

6532189

HARNESS switch - 10 Pin Connector - SEE NOTE

39

6534562

HARNESS switch - 2 Pin Connector - SEE NOTE

40

6570782

INSTRUCTIONS

41

15K8

FITTING W/Ref. 32
