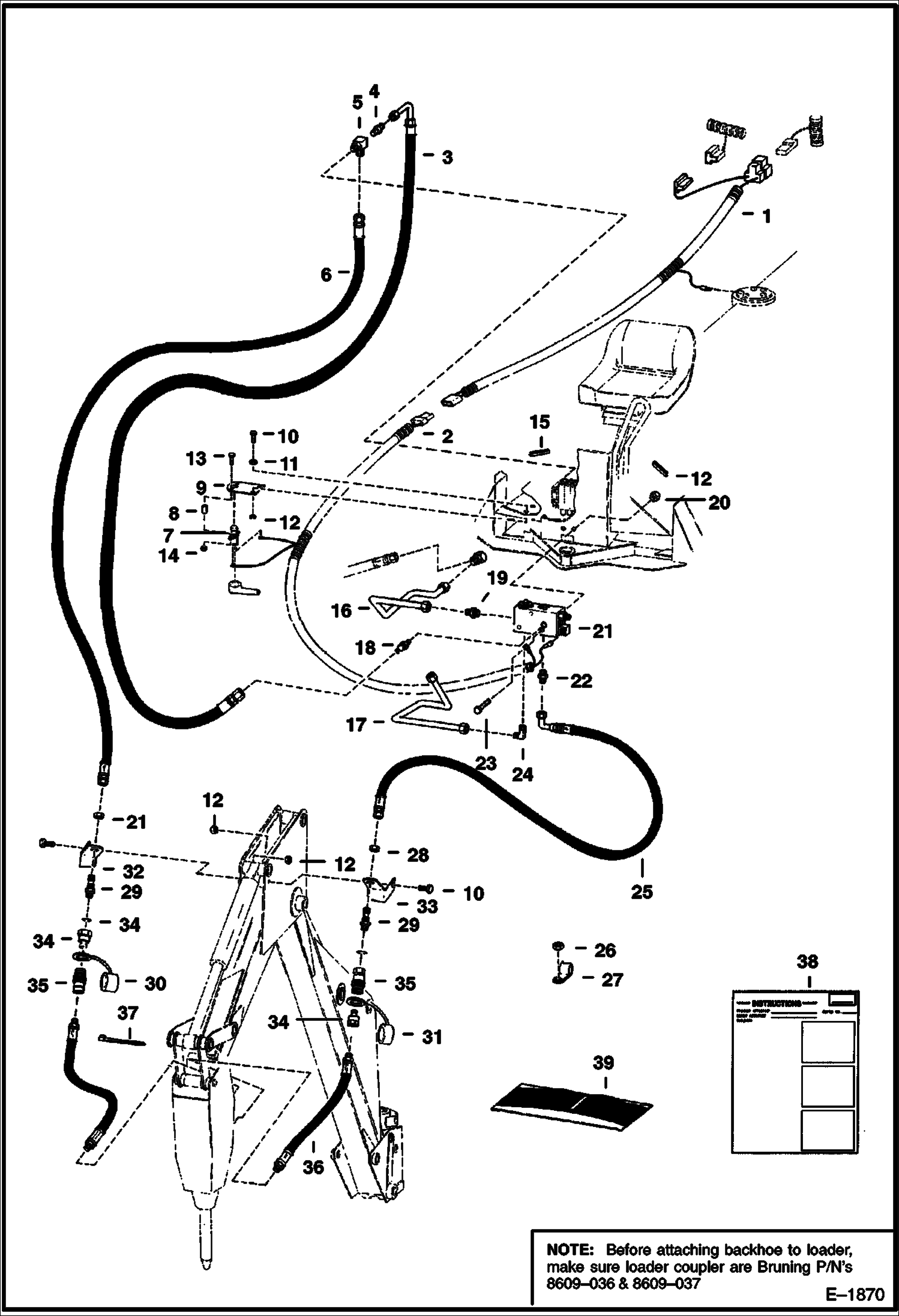

Запчасти Bobcat BREAKERS BREAKER (Backhoe Mtg Kit) (5500) (Use on 913 Backhoe W/Gresen Control Valve) Loader

1

6529522

HARNESS bobcat

2

6529523

HARNESS backhoe

3

6635453

HOSE assy

4

89F3

ADAPTOR hyd.

5

6531236

ELBOW hyd. 90 tapped

6

6635454

HOSE assy

7

2533656

SWITCH

8

791979

SPACER

9

6593219

BRACKET foot switch

10

17C616

BOLT 5 hex cap

11

25E17

WASHER 5 flat

12

85D6

NUT, 5 hex lock

13

17C424

BOLT hex

14

61D4

NUT 5 hex

15

6531350

STRIP *SEE NOTES* rubber

16

6531348

TUBELINE inlet

17

6531349

TUBELINE outlet

18

17K3

ELBOW hyd. 90

19

15K8

FITTING hyd.

20

61D5

NUT hex

21

VALVE See Illustration BREAKER/ B11907 ASSY

22

17KB1012

FITTING, HYD ELBOW hyd. - Was 755055B - A

23

17C540

BOLT hex cap

24

17K8

FITTING hyd. 90

25

6635425

HOSE assy

26

81D6

NUT

27

30H5

CLAMP

28

86F8

NUT 5 bulkhead

29

45K8

ADAPTOR bulkhead

30

6645231

DUST COVER dust

31

6645232

DUST COVER dust

32

6529524

BRACKET mtg

33

6529525

BRACKET mtg

34

6641358

COUPLER male (Bruning 8609-037)

34

6674688

COUPLER, FF MALE straight - Was 6667808 - A

34

6679841

SEAL Was 6672026 - A

35

6641359

COUPLER female (Bruning 8609-036)

35

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

35

6680017

COUPLER, FF FEMALE heavy duty

36

6529526

HOSE assy

37

6610510

TIE

38

6570640

INSTRUCTIONS

39

6648561

SEAL KIT for Both Ref. 34 & 35
