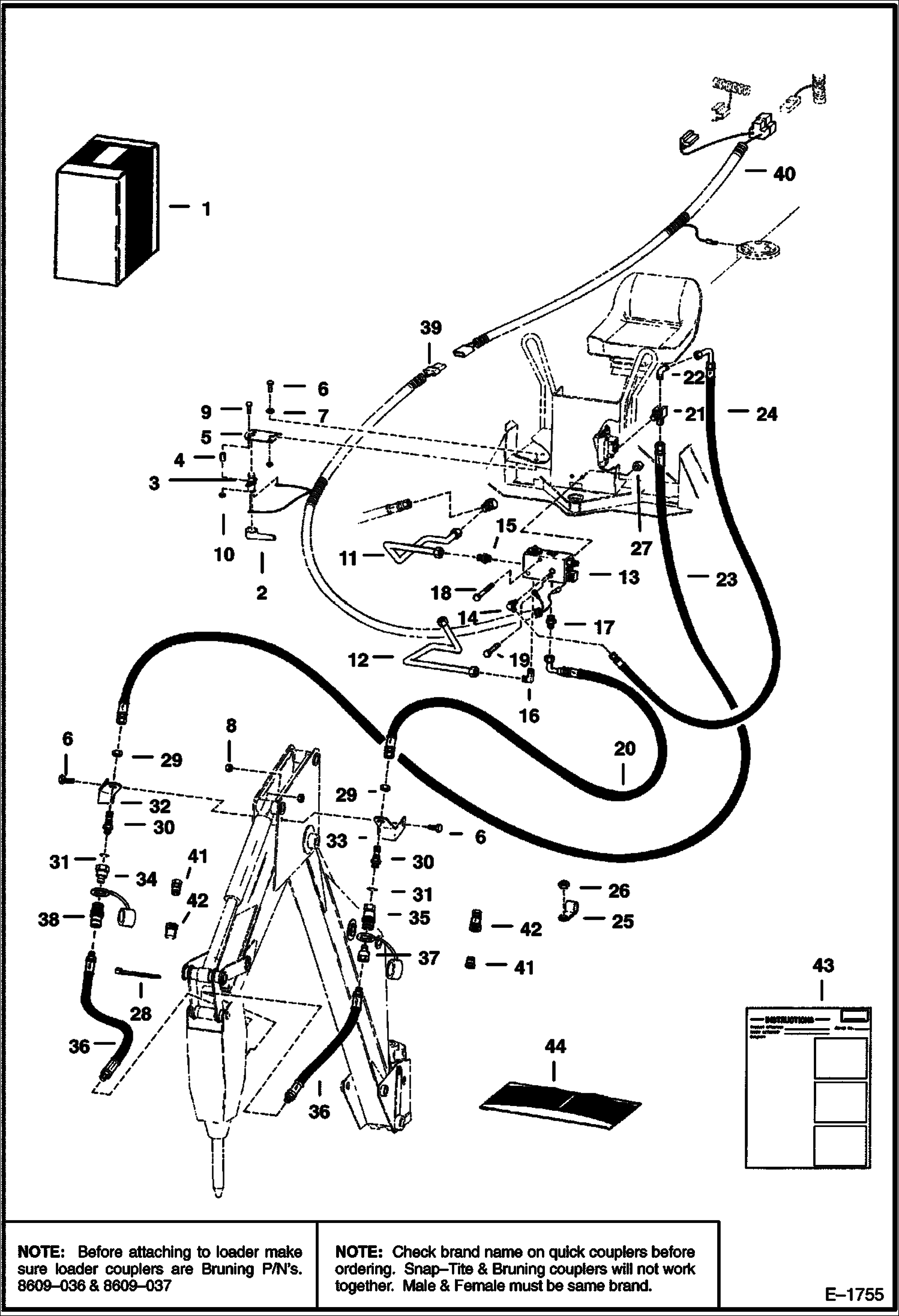

Запчасти Bobcat BREAKERS BREAKER (Backhoe Mtg Kit) (5500) (Use on 913 Backhoe W/Husco Control Valve) Loader

1

KIT NLA - W/Ref. 2 - 43 - Was SALES - A

2

6632453

BOOT

3

2533656

SWITCH

4

791979

SPACER

5

6593219

BRACKET foot switch

6

17C616

BOLT 5

7

25E17

WASHER 5

8

85D6

NUT, 5

9

17C424

BOLT

10

61D4

NUT 5

11

6529517

TUBELINE inlet

11

6530933

TUBELINE inlet

12

6529518

TUBELINE outlet

12

6530934

TUBELINE outlet

13

6633758

VALVE See Illustration BREAKER/ B11907 ASSY

14

17K3

ELBOW hydraulic 90

15

15K8

FITTING hydraulic

16

17K8

FITTING hydraulic 90

17

17KB1012

FITTING, HYD ELBOW Was 755055B - A

18

17C548

BOLT

19

17C540

BOLT

20

6635425

HOSE assy

21

6565630

ELBOW hydraulic 90

22

83F3

ELBOW 5

23

6635454

HOSE assy

24

6635453

HOSE assy

25

30H50

CLIP

26

81D6

NUT

27

61D5

NUT

28

6610510

TIE

29

86F8

NUT 5

30

45K8

ADAPTOR bulkhead

31

79K12

O RING 10

32

6529524

BRACKET mtg

33

6529525

BRACKET mtg

34

QUICK COUPLER NLA - male snap-tite - Order Ref. 41 & 42 - SEE NOTE - Was 2518027B - A

35

QUICK COUPLER NLA - female snap-tite - Order Ref. 41 & 42 - SEE NOTE - Was 2518026B - A

36

6529526

HOSE assy

37

QUICK COUPLER NLA - male snap-tite - Order Ref. 41 & 42 - SEE NOTE - Was 6631573 - A

38

QUICK COUPLER NLA - female snap-tite - Order Ref. 41 & 42 - SEE NOTE - Was 6631574 - A

39

6529523

HARNESS Bobcat

40

6529522

HARNESS Bobcat - W/Ref. 2

41

6641358

COUPLER Male Bruning - SEE NOTE - poppet

41

6674688

COUPLER, FF MALE straight - Was 6667808 - A

41

6679841

SEAL Was 6672026 - A

42

6641359

COUPLER Female Bruning - SEE NOTE - poppet

42

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

42

6680017

COUPLER, FF FEMALE heavy duty

43

6570205

INSTRUCTIONS

44

6648561

SEAL KIT For Both Bruning Couplers
