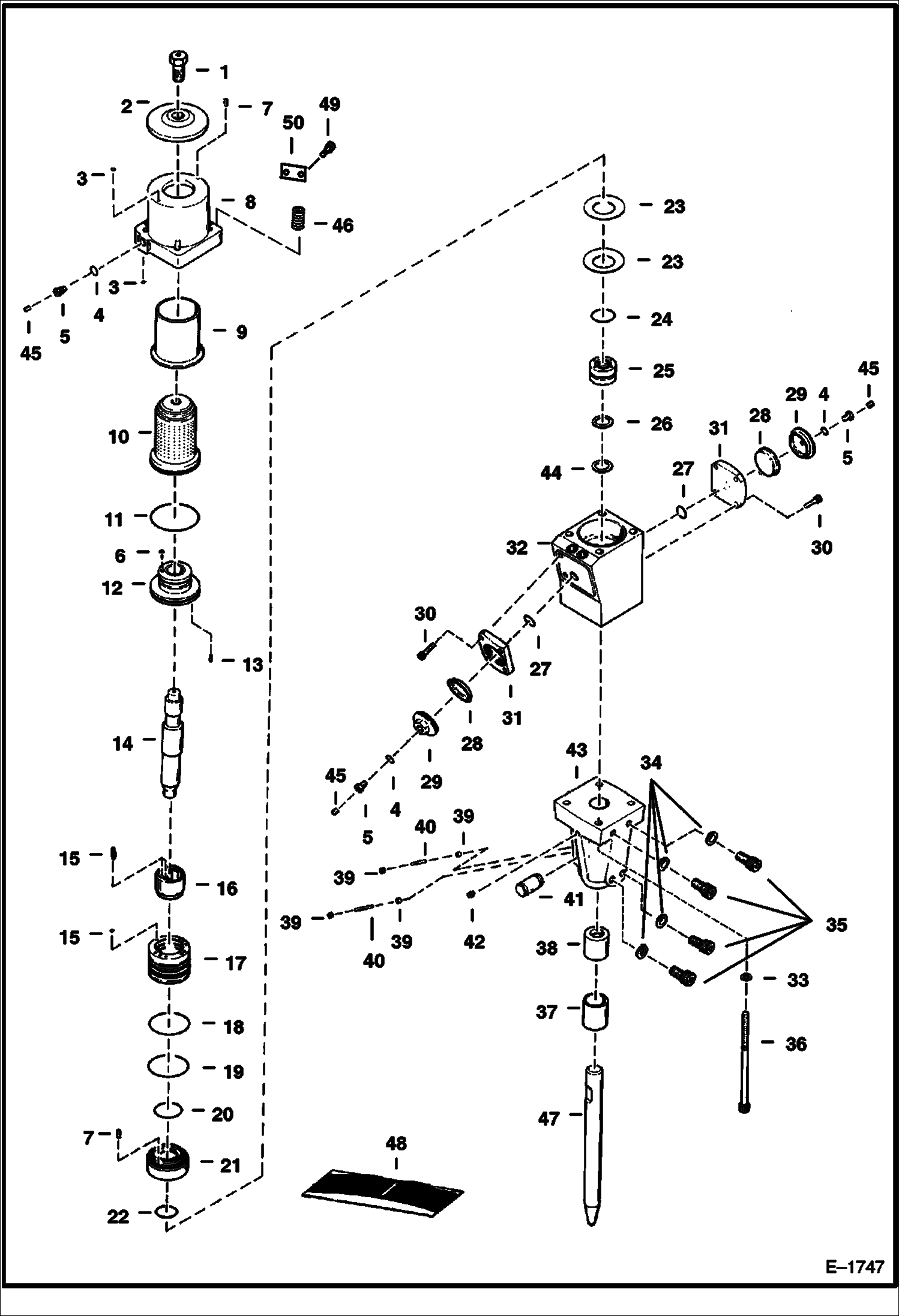

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker) (5500) Loader

1

BOLT NLA - Was 6630650 - A

2

PLATE NLA - Was 6630649 - A

3

6630641

O-RING

4

6633685

O-RING

5

6679827

VALVE charge - Was 6672859 - A

6

PLUG NLA - plug W.20'' hole - Was 6633700 - A

7

14J1812

PIN, ROLL

8

CHAMBER NLA - Was 6630648 - A

9

6630647

DIAPHRAGM Was 6633701 - A

10

6630646

SCREEN main

11

58K258

O RING 10

12

MANIFOLD NLA - assy - Was 6633699 - A

13

14J3128

PIN, ROLL

14

6633698

BREAKER

15

6633697

PIN push

16

VALVE NLA - Was 6633696 - A

17

VALVE NLA - cylinder - Was 6633695 - B

18

6633694

SEAL poly-pac

19

6633693

SEAL poly-pac

20

82K242

O-RING Was 58K000242B - A

21

6633691

SEAT NLA - valve - Was 6633691 - A

22

6633692

SEAL poly-pac - W/ O-Ring Removed

23

6633690

SPRING

24

58K241

O RING

25

BEARING NLA - lower - Was 6633689 - A

26

6630638

SEAL poly-pac

27

58K228

O RING 10

28

6633683

DIAPHRAM accumulator

29

6633684

PLUG accumulator

30

6633681

BOLT

31

6633682

SCREEN accumulator

32

6633679

BODY main

33

6631423

WASHER

34

WASHER NLA - cone - Order 6654810 & 6654811 - Was 6630515 - A

34

6654811

WASHER cone

35

BOLT NLA - Order 6654811 & 6654810 - Was 6633598 - A

35

6654810

BOLT

36

6656345

BOLT

37

BEARING NLA - Was 6633591 - A

38

6633592

STOP

39

6633594

SPRING retainer pin

40

6633593

PIN retainer

41

6633596

PIN retainer

42

6630626

GREASE ZERK

43

6648907

BODY lower - W/Ref. 37 - 42 - Was 6633597 - A

44

6633688

SEAL

45

6630682

PLUG 1/8'' NPT

45

6663956

PLUG 5/16'' NPT

46

6661237

HELICOIL

47

TOOL See Illustration BREAKER/ C3185B

48

6645840

SEAL KIT Ref. 3, 4, 11, 18 - 20, 22, 24, 26, 27 & 44

49

6673312

RIVET for serial no. plate

50

PLATE NLA - serial number
