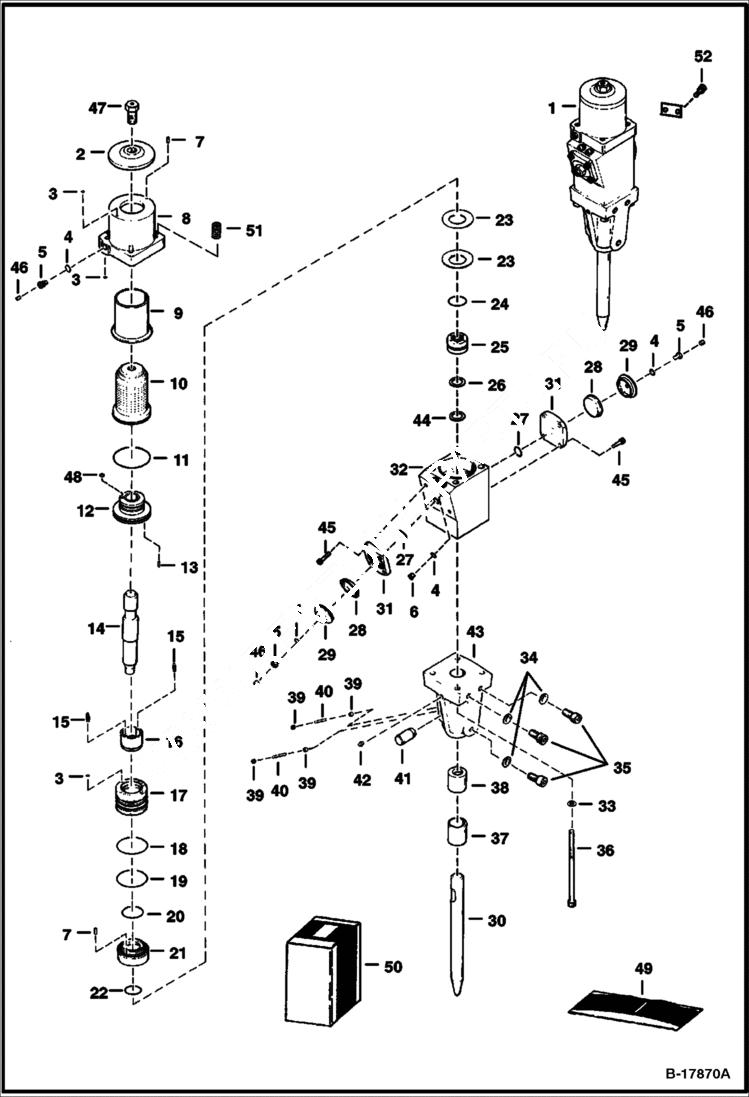

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker) (3500) Loader

1

6652380

BREAKER ref. 2-48

2

PLATE NLA - Was 6630649 - A

3

6630641

O-RING

4

79K8

O RING 10

5

6679827

VALVE charge - W/Relief - Was 6672859 - A

6

47K6

PLUG

7

209968

PIN

8

CHAMBER NLA - Was 6630648 - A

9

6630647

DIAPHRAGM

10

6630646

SCREEN main

11

58K258

O RING 10

12

MANIFOLD NLA - assy - Was 6653530 - B

13

742953

ROLL PIN

14

HAMMER NLA - See S/L Dated 10 May 1996 - Was 6653531 - A

14

HAMMER NLA - cross hatched - 16.7'' long - Was 6664852 - A

15

6630643

PIN push

16

VALVE NSS - Order Ref. 50

17

VALVE NSS - cylinder - Order Ref. 50

18

6630673

SEAL poly-pac - 1/8 x 5-1/4(3.175mm x 133.35mm)

19

6630672

SEAL poly-pac - 1/8 x 5-1/8(3.175mm x 130.18mm)

20

58K238

O-RING

21

VALVE NLA - seat - Was 6630639 - A

22

6630638

SEAL poly-pac - W/ O-Ring Removed

23

DISC NLA - Spring - Was 6630637 - A

24

58K235

O RING 10

25

BEARING NLA - lower - Was 6653529 - A

26

SEAL NLA - poly-pac - See S/L Dated 10 May 1996 - Was 6653533 - A

26

6664465

SEAL

27

58K224

O RING 10

28

6630631

DIAPHRAGM accumulator

29

6630632

PLUG accumulator

30

TOOL See Illustration BREAKER/ C3185

31

6630630

SCREEN accumulator

32

BODY NLA - main - Was 6630628 - A

33

6631423

WASHER

34

WASHER NLA - cone - order 6654810 & 6654811 - Was 6568537 - A

34

6654811

WASHER cone

35

BOLT NLA - order 6654810 & 6654811 - Was 73G001632B - A

35

6654810

BOLT

36

6656345

BOLT

37

BEARING NLA - Was 6630621 - A

38

STOP NLA - Was 6630622 - D

39

6630623

SPRING retainer pin

40

6630624

PIN retainer

41

6630625

PIN retainer

42

6630626

GREASE ZERK

43

6648906

BODY lower - W/Ref. 37-42

44

SEAL NLA - poly-pac - W/ O-Ring Removed - See S/L Dated 10 May 1996 - Was 6653532 - A

44

6665126

SEAL

45

73G1028

BOLT

46

6630682

PLUG 1/8 NPT

46

6663956

PLUG 5/16 NPT

47

BOLT NLA - Was 6630650 - A

48

PLUG NLA - orifice - plug W/.20'' hole - Was 6633700 - A

49

6666551

SEAL KIT ref. 3, 4, 6, 11, 18-20, 22, 24, 26, 27 & 44 - Was 6660116 - A

50

6632220

VALVE KIT Ref. 16 & 17

51

6661237

HELICOIL

52

6673312

RIVET for serial no. plate
