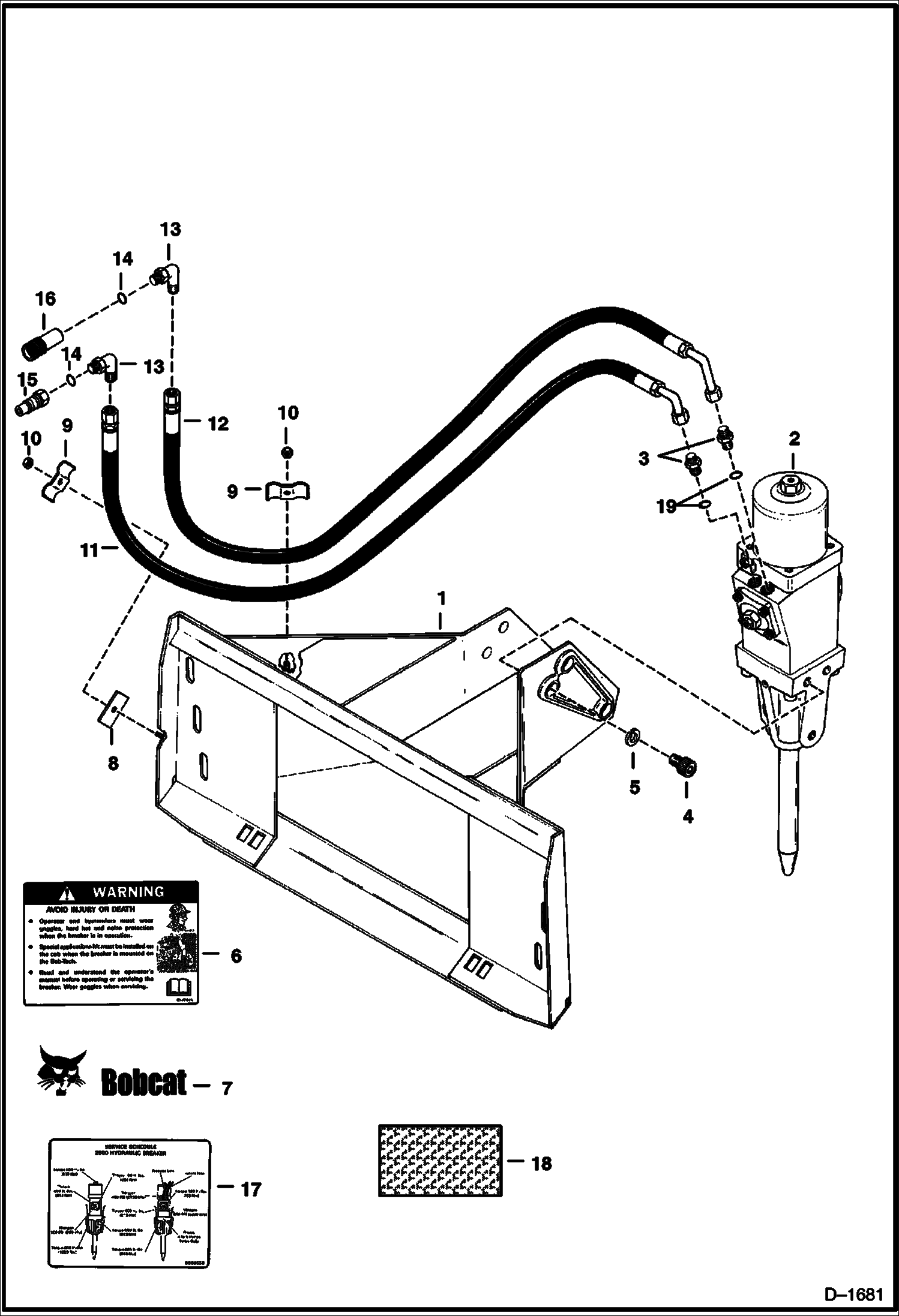

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker Bob-Tach Mtg) (One Position) (2500) Loader

1

FRAME NLA - Order 6709406 two position bracket & mount from parts

2

6630514

BREAKER See Illustration BREAKER/ B17870

3

15KB1012

FITTING, HYD CONNECTOR Was 755055B - A

4

6654810

BOLT NLA - Was 73G001632B - A

5

6654811

WASHER Was 6630515 - A

6

6572074

DECAL warning - Was 6568543 - A

7

6727323

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

7

6727324

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

8

6568169

CLAMP

9

6563353

CLAMP

10

85D6

NUT, 5

11

6568158

HOSE

12

6568159

HOSE

13

17K7

ELBOW W/Ref. 14 - used with poppet couplers

13

17KB1012

FITTING, HYD ELBOW W/Ref. 14 - used with flush face couplers - Was 1302104B - B

14

79K10

O RING 10 Use with poppet couplers

14

79K12

O RING 10 Use with flush face couplers

15

6598757

COUPLER, POPPET MALE straight

15

6674688

COUPLER, FF MALE straight - Was 6667808 - A

15

6679841

SEAL Was 6672026 - A

16

6598758

COUPLER, POPPET FEMALE straight

16

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

16

6680017

COUPLER, FF FEMALE heavy duty

16

48K16

O RING 10 Use with poppet coupler

17

6568536

DECAL service

18

6568402

SAFETY TREAD L.H.

18

6568404

SAFETY TREAD R.H.

19

79K12

O RING 10
