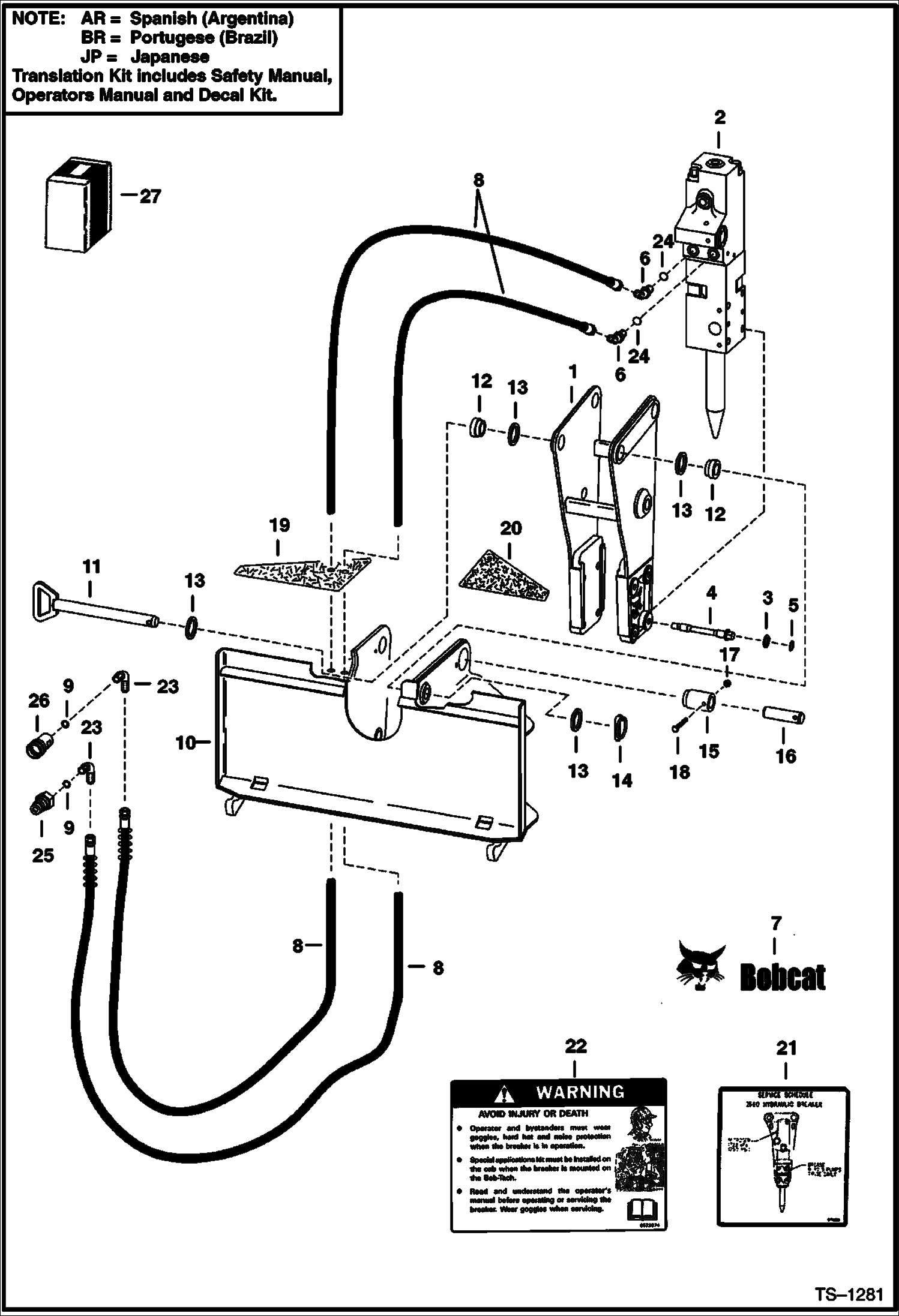

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker Bob-Tach Mtg) (Two Position) (1560) (Use on 400 Series) Loader

1

6706764

FRAME

2

BREAKER See Illustration BREAKER/ B17869

3

6728010

WASHER locking - Was 6662308 - A

4

6664544

BOLT

5

6662309

SNAP RING retaining

6

18K7

FITTING W/Ref. 24

7

6727323

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

7

6727324

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

8

6709838

HOSE

9

79K8

O RING 10

10

6531754

FRAME mounting

11

6576880

PIN

12

6705536

BUSHING

13

6584872

WASHER

14

6560382

PIN, LOCK lock ring

15

6707445

BUSHING Weld-in - Use with Ref. 16

16

6707444

PIN W/Bolt hole - 5''(127mm) long

17

85D6

NUT, 5

18

17C648

BOLT 5

19

6533397

SAFETY TREAD

20

6533398

SAFETY TREAD

21

6708628

DECAL service

22

6572074

DECAL warning

23

763818

ELBOW W/Ref. 24

24

79K10

O RING 10

25

QUICK COUPLER NLA - male - poppet - Was 6630093 - A

25

6667806

COUPLER male - flush face

26

QUICK COUPLER NLA - female - poppet - Was 6630092 - A

26

6667805

COUPLER, FF FEMALE straight

26

6680017

COUPLER, FF FEMALE heavy duty

27

6716672AR

KIT decal - SEE NOTE

27

6716672BR

KIT decal - SEE NOTE

27

6716672JP

KIT decal - SEE NOTE

27

6716671AR

KIT translation - SEE NOTE

27

6716671BR

KIT translation - SEE NOTE
