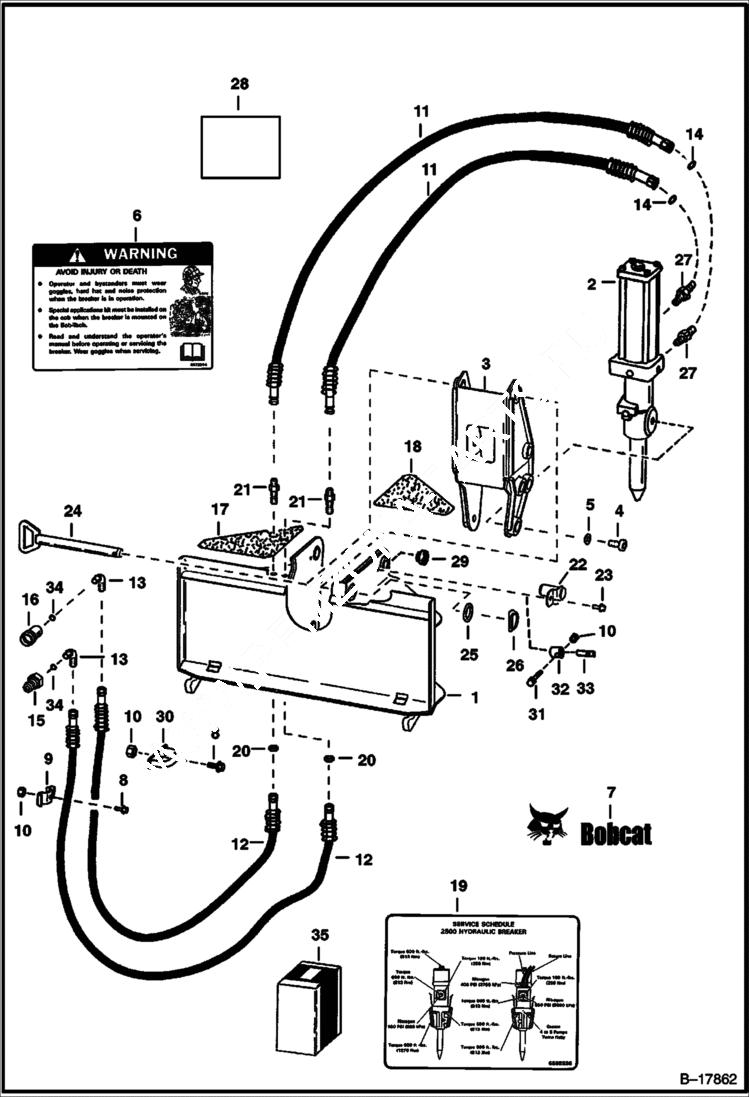

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker Bob-Tach Mtg) (Two Position) (1250) Loader

1

6709406

FRAME 2-position mtg.

2

6649335

BREAKER See Illustration BREAKER/ B12467

3

6530572

FRAME

4

BOLT NLA - Was 6665424 - A

5

WASHER NLA - Was 6650273 - A

6

6572074

DECAL warning

7

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

7

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

8

37C652

BOLT

9

6563353

CLAMP

10

85D6

NUT, 5

11

6532208

HOSE 30'' (762mm) long

11

6538061

HOSE 52'' (1320,8mm) long

12

6714880

HOSE, HYD ASSY Was 6710460 - A

13

17K7

ELBOW W/Ref. 34 - used with poppet couplers

13

17KB1012

FITTING, HYD ELBOW W/Ref. 34 - used with flush face couplers - Was 1302104B - B

14

79K10

O RING 10

15

6598757

COUPLER, POPPET MALE straight

15

6674688

COUPLER, FF MALE straight - Was 6667808 - A

15

6679841

SEAL Was 6672026 - A

16

6598758

COUPLER, POPPET FEMALE straight

16

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

16

6680017

COUPLER, FF FEMALE heavy duty

16

48K16

O RING 10 Use with poppet coupler

17

6575692

SAFETY TREAD

18

6575710

SAFETY TREAD

19

6568536

DECAL service

20

86F7

LOCK NUT

21

45K7

CONNECTR

22

6575689

PIN

23

84G3716

SCREW 5

24

6576880

PIN

25

6584872

WASHER

26

6560382

PIN, LOCK lock ring

27

15K7

FITTING W/Ref. 14 - Use W/30'' (762mm) Hose

27

730963

CONNECTR W/Ref. 14 - Use W/52'' (1321mm) Hose

28

6650685

DECAL

29

6576328

BUSHING Weld In

30

6706160

GUIDE

31

17C648

BOLT 5

32

6707445

BUSHING Weld-in

33

6707444

PIN W/Bolt hole - 5''(127mm) long

34

79K10

O RING 10 Use with poppet couplers

34

79K12

O RING 10 Use with flush face couplers

35

6718920AR

KIT translation

35

6718920BR

KIT translation
