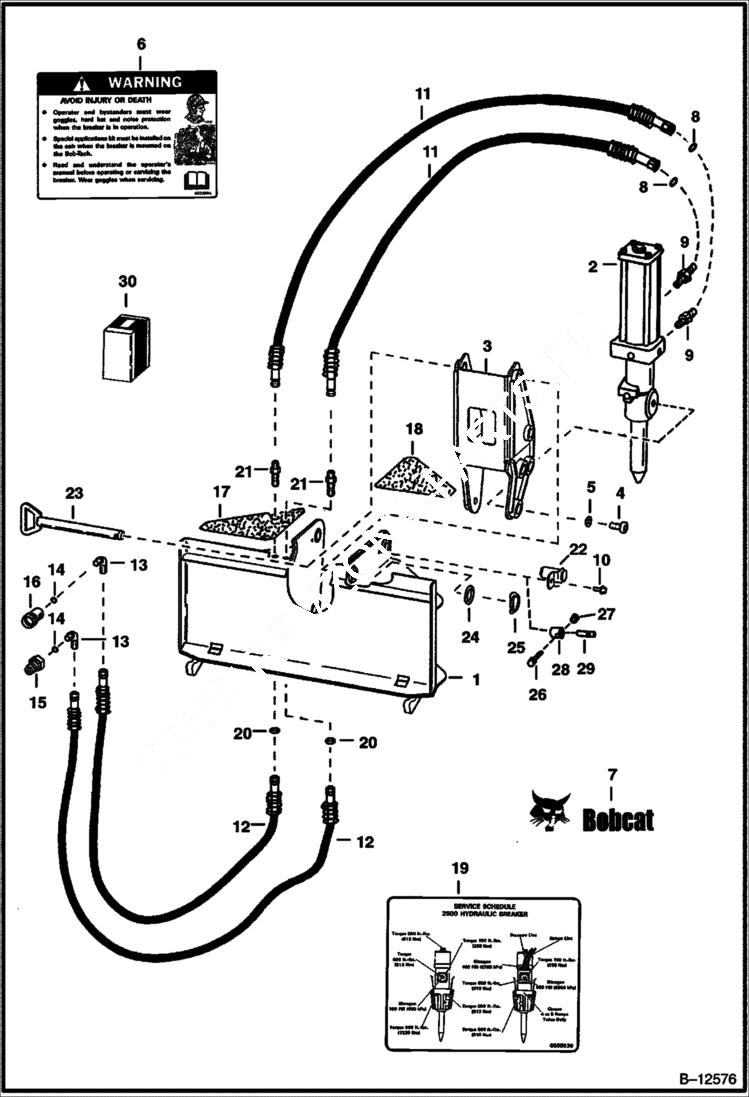

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Breaker Bob-Tach Mtg) (Two Position) (1250) (Use on 440 Series) Loader

1

FRAME NLA - mtg. - Order 1560 Frame From Gwinner Sales

2

6649335

BREAKER See Illustration BREAKER/ B12467

3

6530572

FRAME

4

BOLT NLA - Was 6665424 - A

5

WASHER NLA - Was 6650273 - A

6

6572074

DECAL warning

7

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567988 - A

7

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

8

79K8

O RING 10

9

15K7

FITTING W/Ref. 8

10

85D8

NUT, 5

11

6534385

HOSE

12

6534384

HOSE

13

763818

ELBOW W/Ref. 14

14

79K8

O RING 10

15

QUICK COUPLER NLA - male - poppet - Was 6630093 - A

15

6667806

COUPLER male - flush face

16

6630092

COUPLER female - poppet

16

6667805

COUPLER, FF FEMALE straight

16

6680017

COUPLER, FF FEMALE heavy duty

17

6533397

SAFETY TREAD

18

6533398

SAFETY TREAD

19

6533396

DECAL service

20

86F7

LOCK NUT

21

45K7

CONNECTR

22

6575689

PIN

23

6576880

PIN

24

6584872

WASHER

25

6560382

PIN, LOCK lock ring

26

17C648

BOLT 5

27

85D6

NUT, 5

28

6707445

BUSHING weld-in

29

6707444

PIN W/bolt hole

30

6718920AR

KIT translation

30

6718920BR

KIT translation
