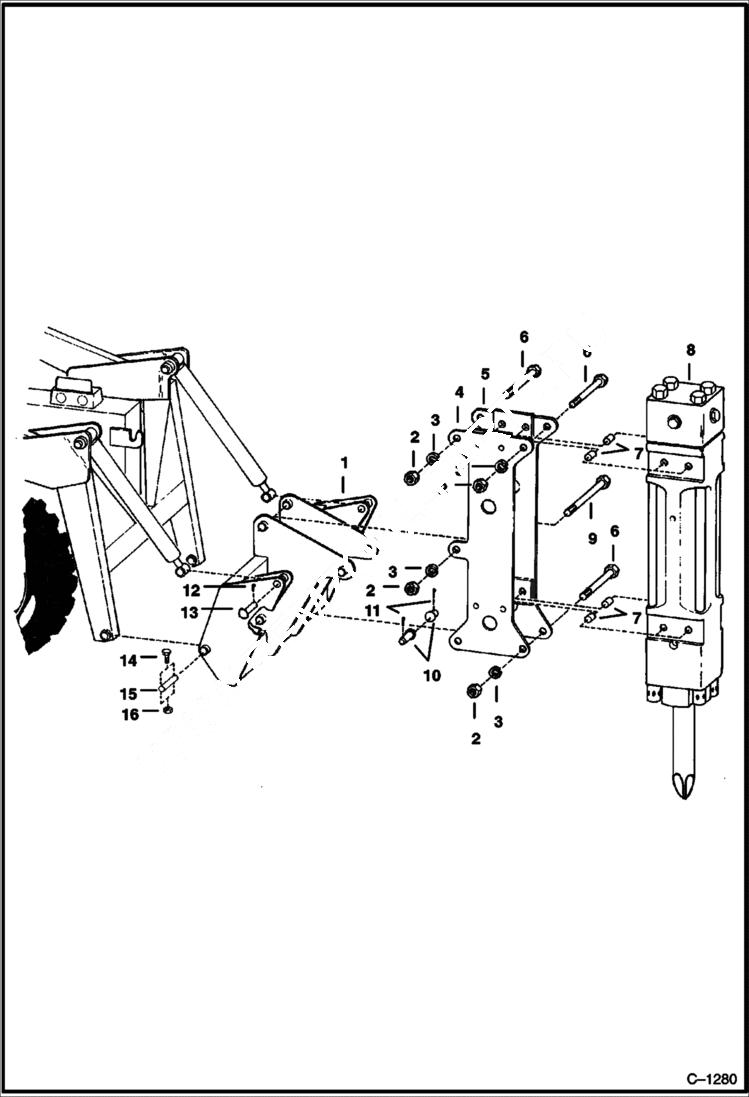

Запчасти Bobcat BREAKERS BREAKER (Demolition Hammer Mounting) Loader

1

FRAME NLA - mounting - Was 6501564 - A

2

61D16

LCKNUT

3

4E16

WASHER

4

6501562

PLATE mounting - L.H.

5

6501563

PLATE mounting - R.H.

6

6503594

SCREW

7

6503593

DOWEL PIN

8

HAMMER NLA - pneumatic unit

9

6503595

BOLT

10

6503592

HINGE PIN

11

1318566

PIN

12

PIN NLA - Was 1F820 - A

13

6502327

HINGE PIN

14

17C532

BOLT 5

15

6502783

PIN

16

91D5

NUT 5 Was 81D000005B - A
