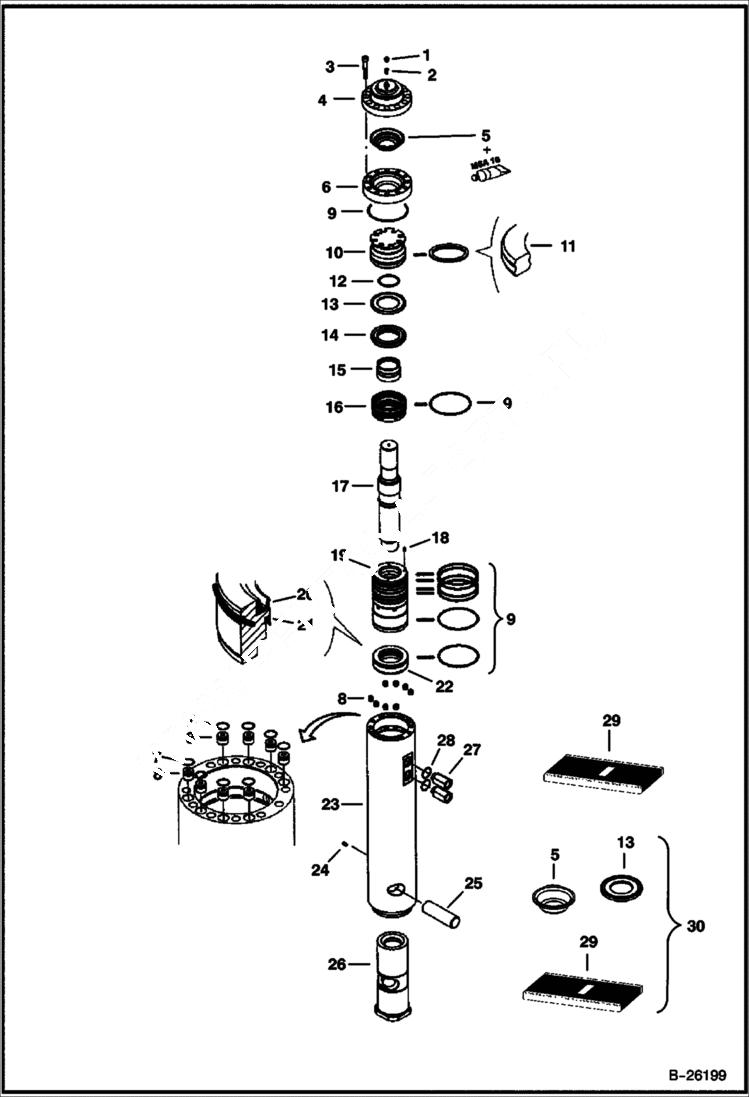

Запчасти Bobcat BREAKERS BREAKER (Internal Parts) (HB1180) (Use on 335, 337, 341, 435) Экскаваторы

1

6676691

PLUG

2

6679894

VALVE charge

3

86626009

BOLT

4

86639028

FLANGE upper

5

86639952

DIAPHRAGM

6

86639010

FLANGE lower

7

O-RING NSS - Order Ref 29 seal kit

8

86639275

PLUG

9

O-RING NSS - Order Ref 29 seal kit

10

86639127

COVER piston

11

SEAL NSS - quad ring - Order Ref 29 seal kit

12

SEAL NSS - rod - Order Ref 29 seal kit

13

86639119

VALVE pressure regulator

14

86639101

COVER distributor

15

86639093

DISTRIBUTOR

16

86639085

RING distributor

17

86639077

PISTON

18

86640976

PIN

19

86639069

CYLINDER

20

SEAL NSS - lip - Order Ref 29 seal kit

21

SEAL NSS - scraper - Order Ref 29 seal kit

22

86639051

CARRIER seal

23

86639044

HOUSING

24

6693011

GREASE ZERK Was 6676685 - A

25

86639143

PIN Use W/external clamp

25

86693801

PIN, RETAINER Use W/internal clamp

26

86639135

BUSHING

27

86640364

ADAPTER

28

79K12

O RING 10 O-ring

29

86639903

SEAL KIT W/Ref 7, 9, 11, 12, 20 & 21

30

86639960

REBUILD KIT includes Ref 5, 13 & 29
