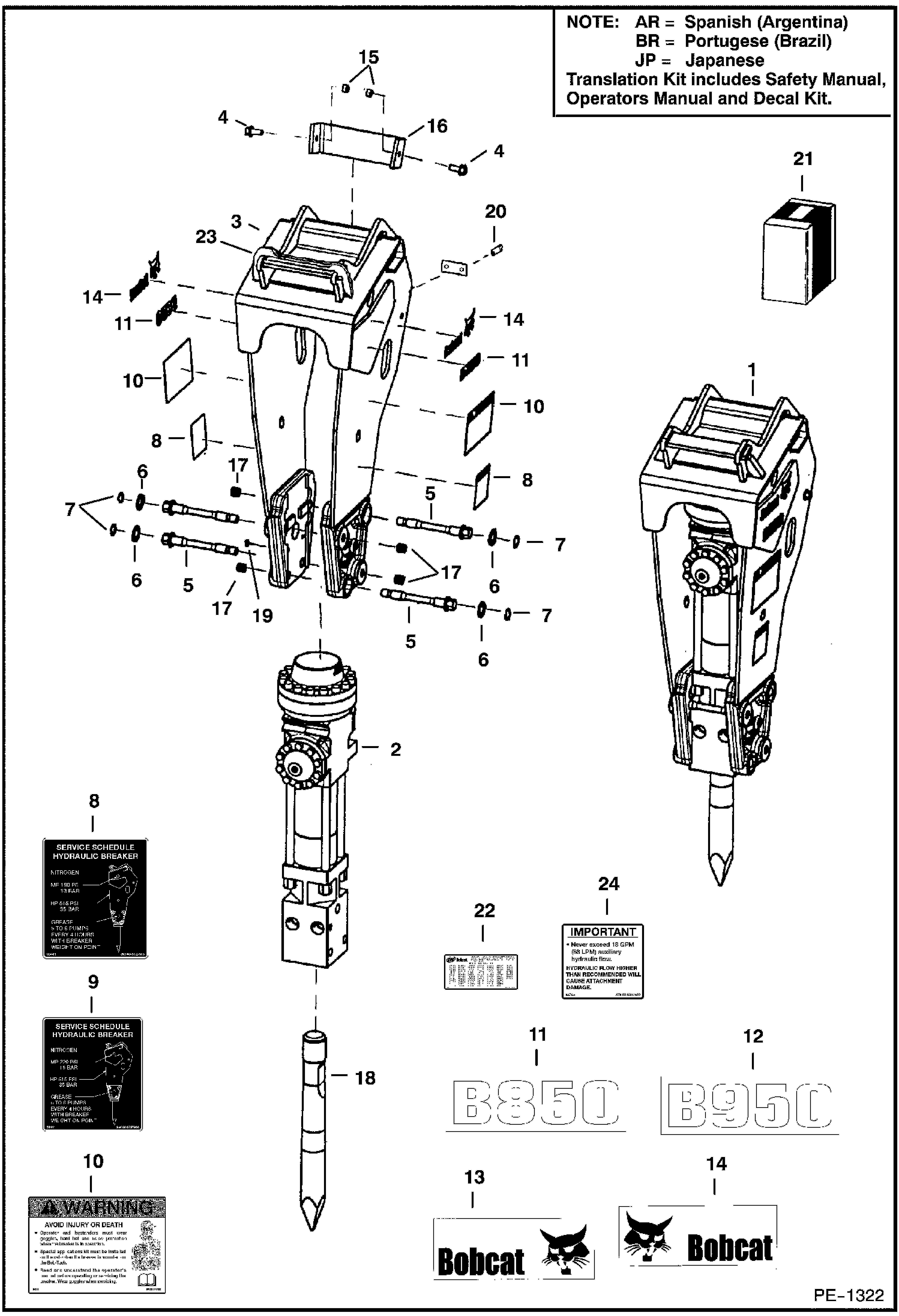

Запчасти Bobcat BREAKERS BREAKER (Frame) (B850) (B950) Экскаваторы

1

BREAKER SALES - B850 - W/Ref. 2 - 20 - SALES #6727940

1

BREAKER SALES - B950 - W/Ref. 2 - 20 - SALES #6727970

2

POWER CELL See Illustration BREAKER/ B17902 NSS - Order Ref. 1

3

6726861

FRAME Also Order Ref. 17

4

31C824

BOLT 10 Was 31C000820B - B

5

6816974

BOLT, FORGED Was 6726865 - A

6

6728010

WASHER cocking

7

6662309

SNAP RING retaining

8

6727965

DECAL B850 service

9

6727966

DECAL B950 service

10

6727330

DECAL warning

11

6727942

DECAL B850

12

6727943

DECAL B950

13

6727323

DECAL, LOGO BOBCAT AND HEAD LH

14

6727324

DECAL, LOGO BOBCAT AND HEAD RH

15

81D8

NUT

16

6727930

BRACE

17

6662803

HELI-COIL

18

TOOL See Illustration BREAKER/ B17905

19

6733051

RING,RETAINING retaining - Was 6678741 - B

20

6C404

SCREW

21

6728131AR

KIT translation - SEE NOTE - B850

21

6728131BR

KIT translation - SEE NOTE - B850

21

6728132AR

KIT translation - SEE NOTE - B950

21

6728132BR

KIT translation - SEE NOTE - B950

21

6728133AR

KIT decal - SEE NOTE - B850

21

6728133BR

KIT decal - SEE NOTE - B850

21

6728133JP

KIT decal - SEE NOTE - B850

21

6728134AR

KIT decal - SEE NOTE - B950

21

6728134BR

KIT decal - SEE NOTE - B950

21

6728134JP

KIT decal - SEE NOTE - B950

22

DECAL NLA - patent - Was 6557224 - C

23

6731964

BRACE, X-CHANGE x-change

24

6817532

DECAL, MAX FLOW max flow - for B850
