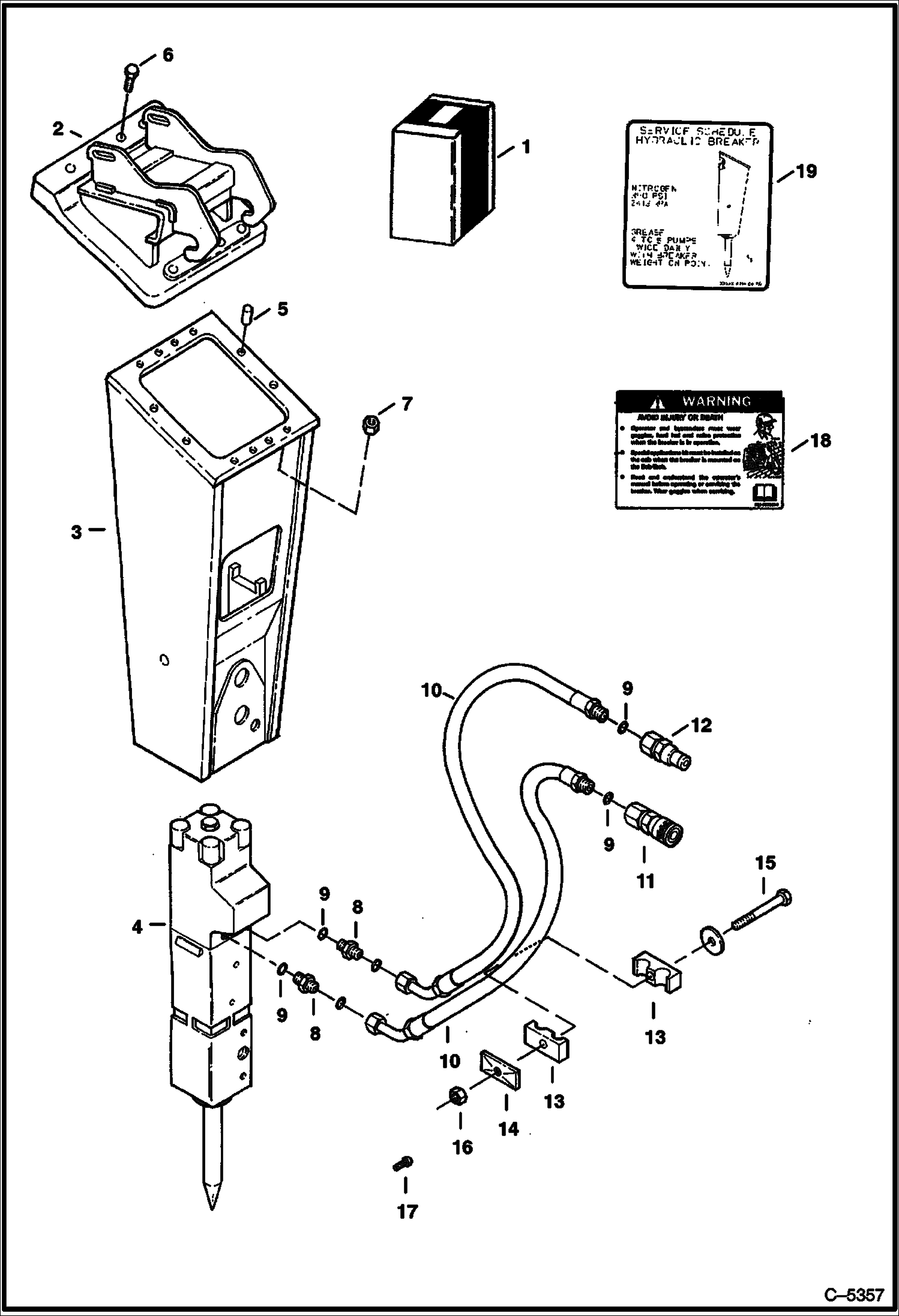

Запчасти Bobcat BREAKERS BREAKER (X-Change) (6560) (Use on 337, 341) Экскаваторы

1

BREAKER SALES - Include Refs. 2-19 - Sales #6714729

2

6714415

FRAME X-ChangeE Mount

3

6714286

HOUSING Breaker Mounting

4

BREAKER SALES - Assy.

5

6714480

DOWEL PIN

6

17C1448

BOLT

7

93D14

NUT

8

15KB1212

FITTING, HYD CONNECTOR W/Ref. 9 - Was 15KN00008B - A

8

97K12

O'RING flared end

8

99K12

O RING

9

79K12

O RING 10

10

6715085

HOSE 337 only - W/Ref. 9

10

6726700

HOSE 341 only - NOT IN KIT - W/Ref. 9

11

6672960

COUPLER, FF FEMALE straight

12

6674688

COUPLER, FF MALE straight

13

6595353

CLAMP

14

6595356

PLATE

15

17C652

BOLT

16

95D6

NUT

17

6C404

SCREW

18

6572074

DECAL Warning

19

6714104

DECAL Service Schedule
