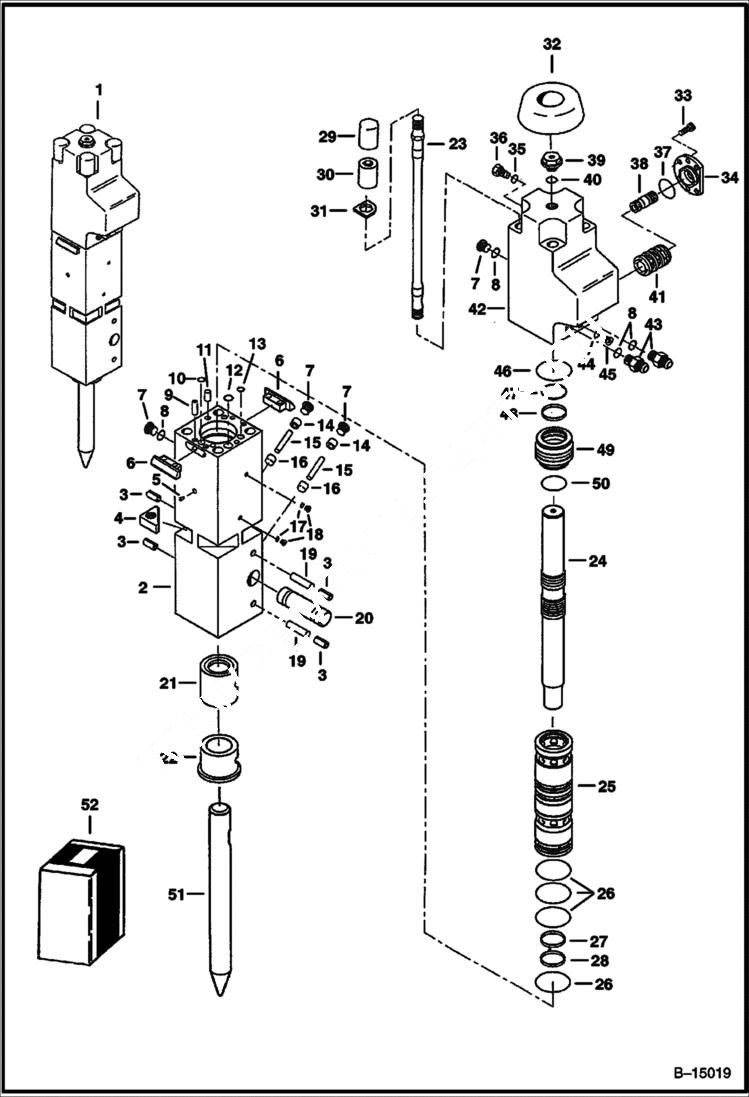

Запчасти Bobcat BREAKERS BREAKER (6560) (Use on 337, 341) Экскаваторы

1

BREAKER ASSY SALES - W/Ref. 2 - 51

2

6672076

HOUSING lower

3

6672077

ROLL PIN

4

6672078

NUT

5

6630626

GREASE ZERK

6

6672079

BUMPER PAD

7

6663950

PLUG

8

79K12

O RING 10

9

6672080

DOWEL PIN

10

6667983

O-RING

11

6663945

PIN

12

6672081

O-RING

13

6672082

O-RING

14

6666345

SPRING

15

6633593

PIN

16

6633594

SPRING

17

79K4

O RING 10

18

6641167

PLUG

19

6672083

PIN

20

6672084

RETAINER tool

21

6672085

STOP tool

22

6672086

BUSHING

23

6672087

TIE ROD

24

6672088

PISTON

25

6672089

SLEEVE

26

6672090

O-RING

27

6672091

SEAL rod

28

6672092

WIPER rod

29

6672093

CAP

30

6672094

NUT

31

6672095

LOCK PLATE

32

6671006

BUMPER

33

6672096

BOLT

34

6672097

CAP

35

79K8

O RING 10

36

6663914

VALVE charge

37

6672098

O-RING

38

6672099

SPOOL

39

6672100

PLUG

40

6672101

O-RING

41

6672102

SLEEVE

42

6672103

HOUSING upper

43

15K8

FITTING

44

79K6

O RING 10

45

6641169

PLUG

46

6672104

O-RING

47

6672105

QUAD RING

48

6672106

SEAL

49

6672107

CARRIER

50

6672108

O-RING

51

TOOL See Illustration BREAKER/ B17895

52

6672109

SEAL KIT W/Ref. 10, 12, 13, 26-28, 37, 46-48 & 50
