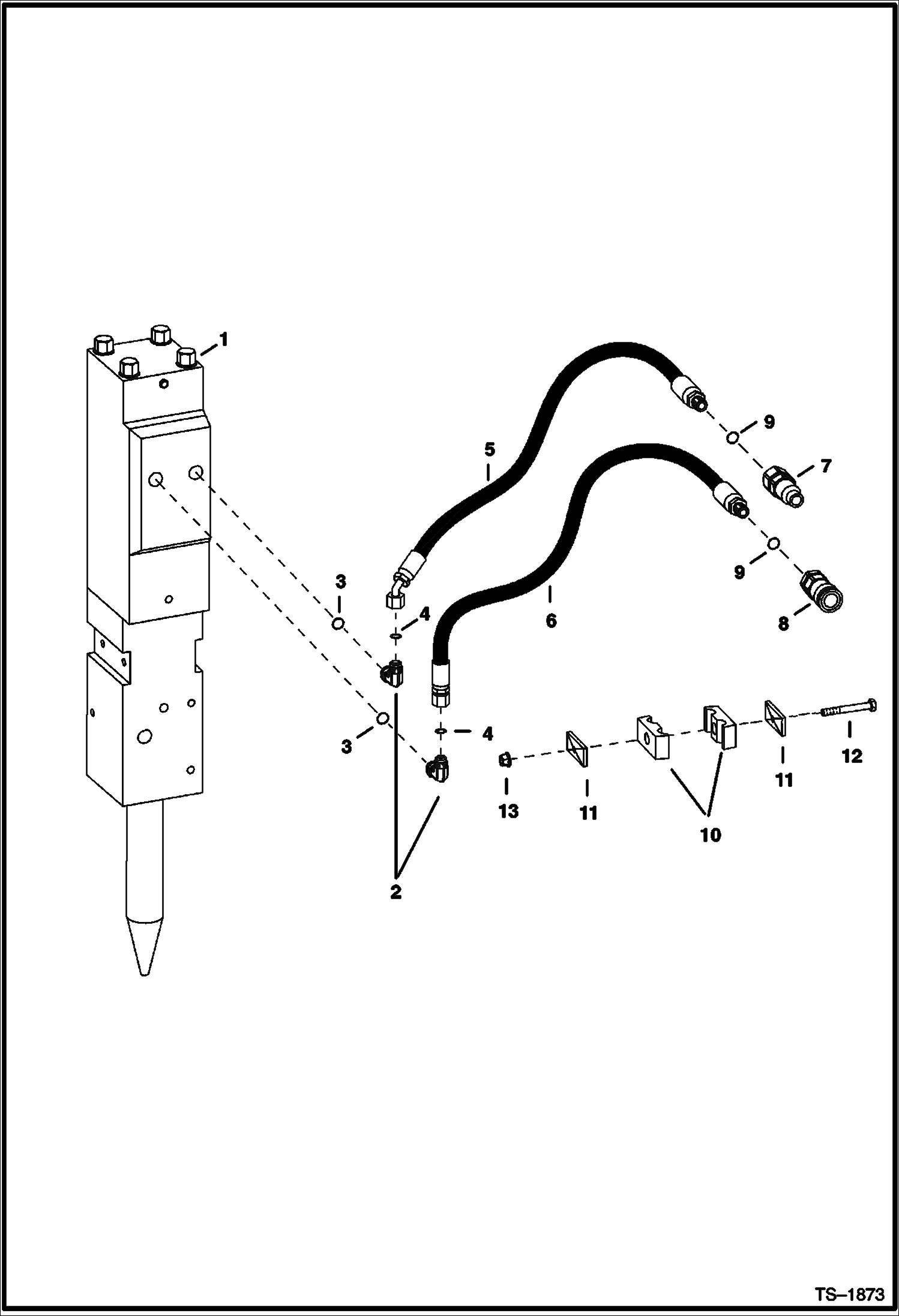

Запчасти Bobcat BREAKERS BREAKER (Hoses) (5060) (Use on 337, 341) Экскаваторы

1

BREAKER ASSY NLA - Order components - Was SALES

2

17KB1212

FITTING, HYD ELBOW Was 17KV00008B - A

3

99K12

O RING

4

97K12

O'RING flared end

5

6717807

HOSE 337 only W/Ref. 9

5

6726701

HOSE 341 only - NOT IN KIT - W/Ref. 9

6

6717808

HOSE 337 only W/Ref. 9

6

6726702

HOSE 341 only - NOT IN KIT - W/Ref. 9

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6672960

COUPLER, FF FEMALE straight

9

79K12

O RING 10

10

6595353

CLAMP

11

6595356

PLATE

12

17C652

BOLT

13

95D6

NUT
