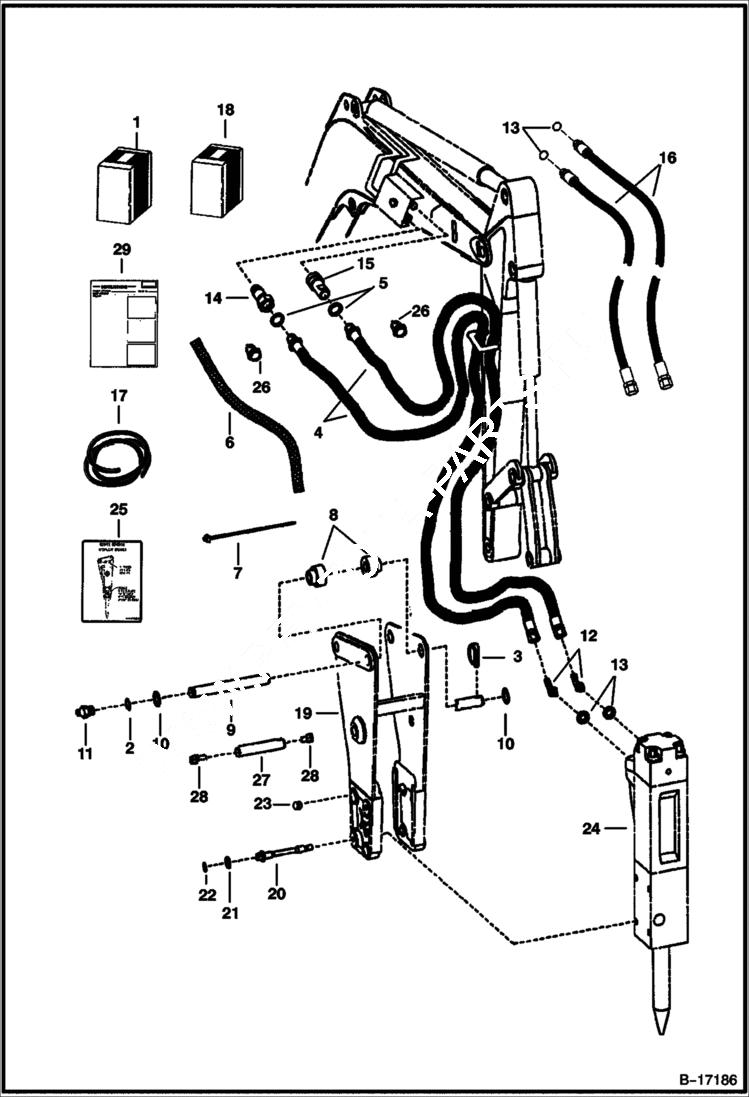

Запчасти Bobcat BREAKERS BREAKER (Mounting Kit) (2560) (3560) (2570) (3570) (Use on 225, 231, 325, 328, 331, 334) Экскаваторы

1

KIT NLA - Breaker mounting - W/Refs.2-16 - Order components - Was Sales #6711714

2

6534154

RING

3

6560382

PIN, LOCK Retaining

4

6588312

HOSE W/Refs. 5-7 - .875'' threads on male end

4

6714881

HOSE 1.06'' threads on male end - Was 6711709 - D

5

79K10

O RING 10

5

79K12

O RING 10

6

COVER NLA - Hose 70'' (1778mm) long - Order Ref. 17

7

6610510

TIE

8

6705537

BUSHING

9

6718686

PIN Was 6705594 - B

10

6705595

WASHER

11

10H25

FITTING, GREASE 5

12

18K8

FTG W/Ref. 13

13

79K12

O RING 10

14

6598757

COUPLER, POPPET MALE straight

14

6674688

COUPLER, FF MALE straight - Was 6667808 - A

14

6679841

SEAL Was 6672026 - A

15

6598758

COUPLER, POPPET FEMALE straight

15

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

16

6715167

HOSE extensions - W/Ref. 13 - For Model 337 Only - Not Included in Kit

17

6656155

HOSE COVER bulk - sold per foot

18

BREAKER SALES - W/Ref. 19-23

19

6705592

FRAME Breaker mounting

20

6662307

BOLT

21

6728010

WASHER Lockplate - Was 6662308 - A

22

6662309

SNAP RING

23

6662803

HELI-COIL

24

BREAKER SALES

25

6715874

DECAL Service - Was 6711874 - A

26

6668096

ADAPTER Use to adapt flush face couplers to 6588312 hose

27

6715741

BAR Support

28

31C832

BOLT

29

6722592

INSTRUCTION
