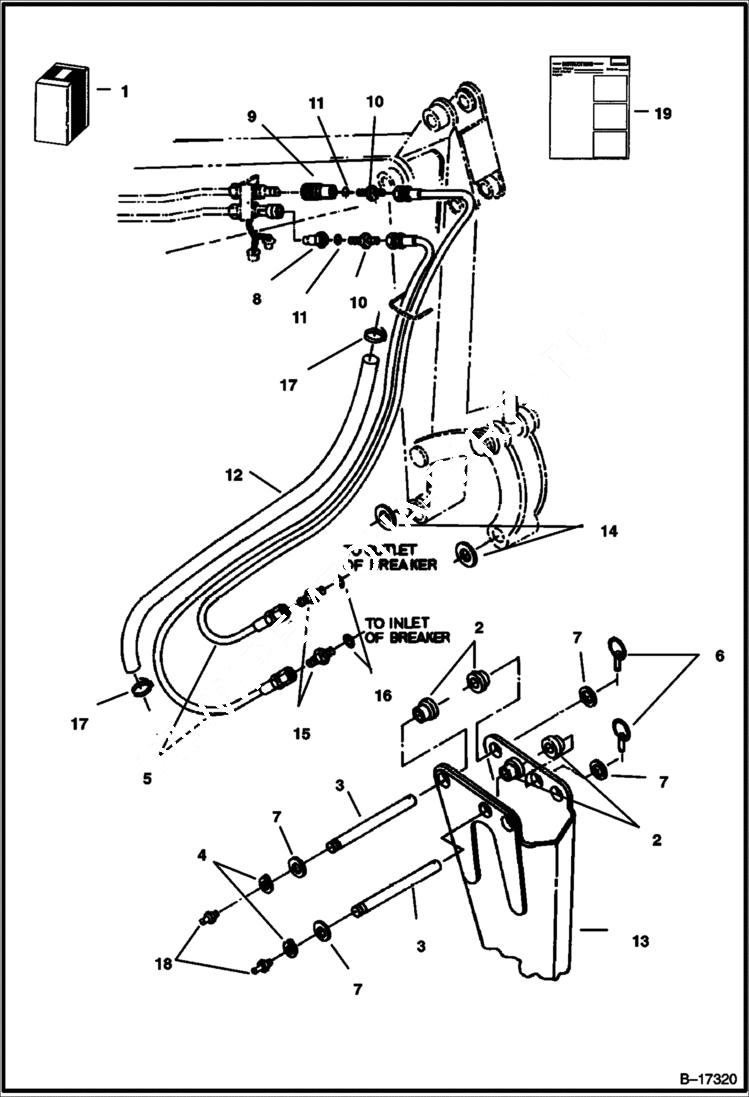

Запчасти Bobcat BREAKERS BREAKER (Mounting Kit) (2500) (3500) (Use on 225, 231, 331, 334) Экскаваторы

1

KIT NLA - Breaker Mounting - Order components - Was 6586354 - A

2

6536164

BUSHING

3

6536163

PIN Some pins do not have grease holes

4

6534154

RING

5

6536765

HOSE for Arm mounted Aux. Lines - not included in Kit - Order separately

5

6535912

HOSE for Boom mounted Aux. Lines

6

6560382

PIN, LOCK Retaining

7

6534111

WASHER

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

48K16

O RING 10 For Poppet Coupler

9

6665430

BACKUP RING For Poppet Coupler

10

18K7

FITTING W/Ref. 11 - for Arm mounted Aux. Lines - not included in Kit - order separately

10

15K7

FITTING W/Ref. 11 - Use W/poppet couplers

10

15KB1012

FITTING, HYD CONNECTOR W/Ref. 11 - Use W/flush face couplers - Was 755055B - A

11

79K10

O RING 10 Use W/poppet couplers

11

79K12

O RING 10 Use W/flush face couplers

12

6656155

HOSE COVER bulk - sold per foot

13

6657379

BRACKET Mounting - For 2500X & 3500X

14

6535313

SHIM

15

15K8

FITTING W/Ref. 16

16

79K12

O RING 10

17

6610510

TIE

18

10H25

FITTING, GREASE 5

19

6720424

INSTRUCTION
