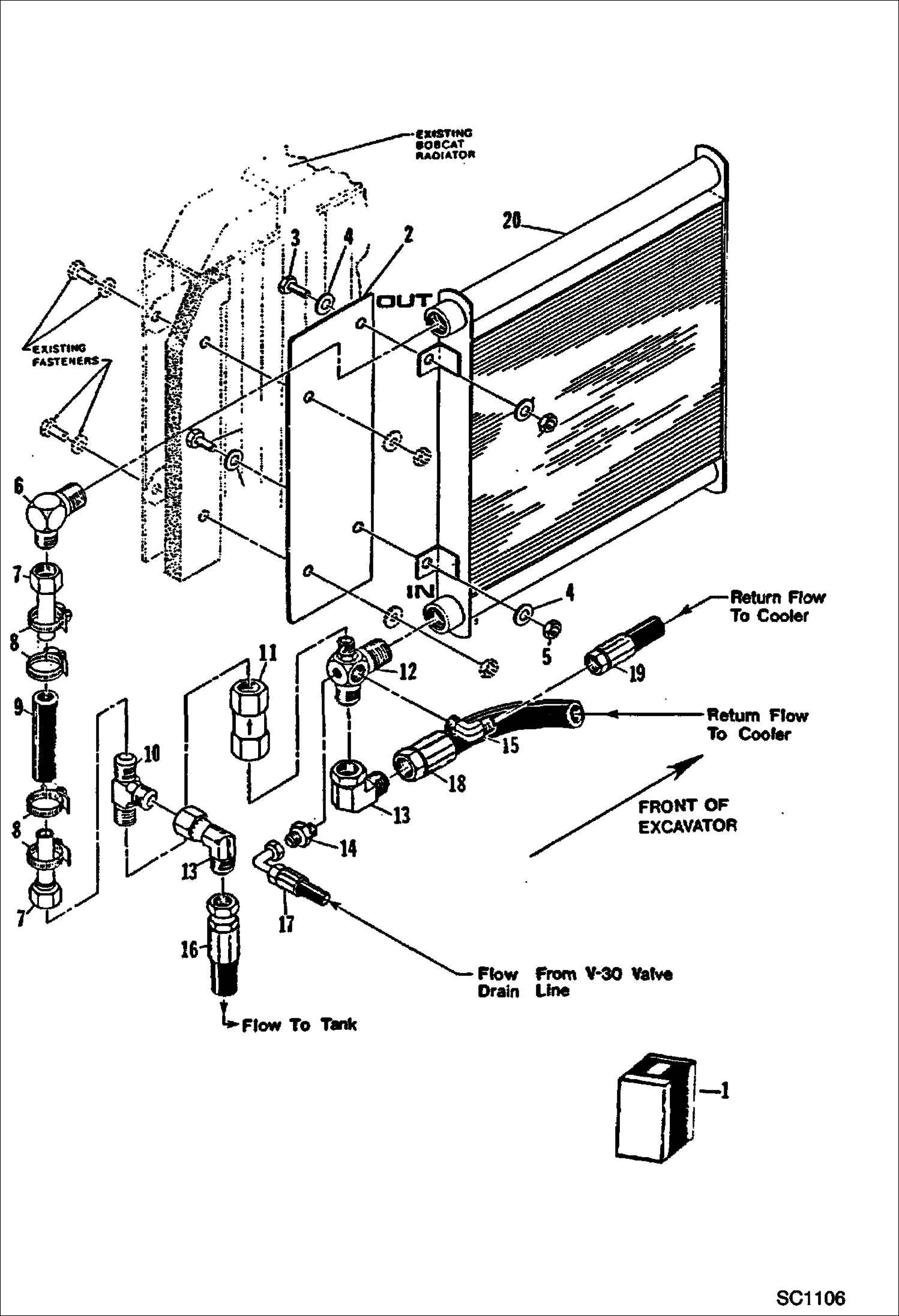

Запчасти Bobcat BREAKERS BREAKER (Cooler) (2500) (Use on 116 505012001 & Above) Экскаваторы

1

KIT See Illustration BREAKER/ SC1089 SALES

2

6651771

BRACKET

3

17C616

BOLT 5

4

25E17

WASHER 5

5

6651772

NUT

6

6651341

ELBOW

7

6651342

TUBE

8

6651343

CLAMP

9

6651344

HOSE

10

6651345

TEE

11

6651346

VALVE check

12

ELBOW NLA - Was 6651789 - A

13

6651349

ELBOW

14

6651775

CONNECTOR

15

ELBOW NLA - Was 6651790 - A

16

6651791

HOSE

17

6651746

HOSE

18

6651792

HOSE

19

6651782

HOSE

20

6651339

COOLER
