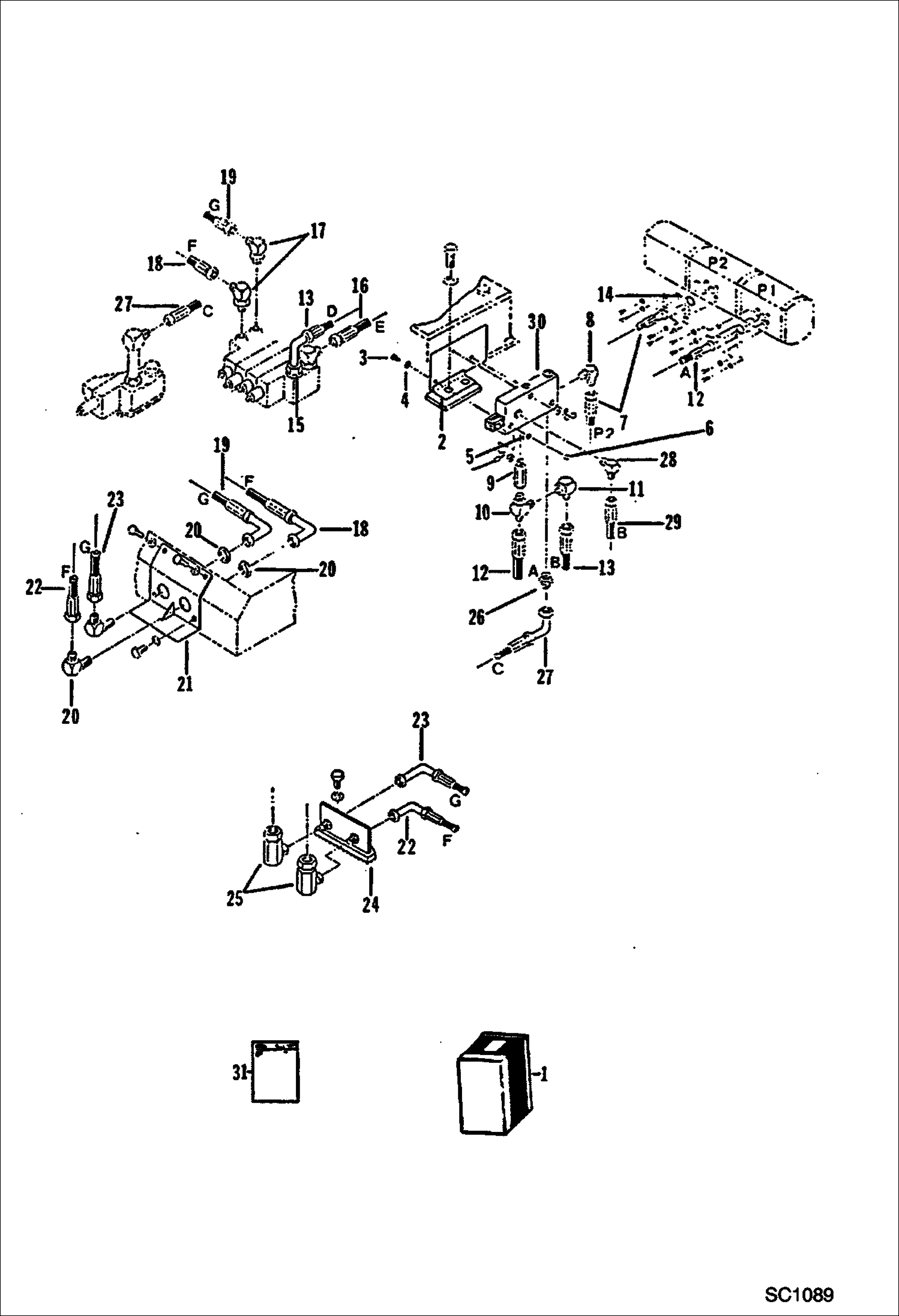

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Circuitry) (2500) (Use on 116 505012001 & Above) Экскаваторы

1

KIT See Illustration BREAKER/ B26073 See Illustration BREAKER/ B26074 See Illustration BREAKER/ SC1106 See Illustration BREAKER/ B26076 See Illustration BREAKER MODEL 116/ B26075 SALES - Includes Ref.

2

6651725

BRACKET

3

BOLT NLA - Was 7C000540B - A

4

25E16

WSHR

5

4E16

WASHER

6

85D5

NUT 5

7

HOSE NLA - Was 6651779 - A

8

6651727

ELBOW

9

6651728

VALVE CK.

10

6651729

TEE

11

6651349

ELBOW

12

6651780

HOSE

13

6651733

HOSE

14

6651781

O-RING

15

6651374

ADAPTER

16

6651782

HOSE

17

ELBOW NLA - Was 6651734 - A

18

6651783

HOSE

19

6651784

HOSE

20

6651739

ELBOW

21

6651785

BRACKET

22

6651786

HOSE

23

6651787

HOSE

24

6651742

BRACKET

25

6651373

ELBOW swivel

26

6651743

CONNECTOR

27

6651788

HOSE

28

6651745

ELBOW

29

6651746

HOSE

30

6651724

VALVE ASY

31

Instructions Packed in kit
