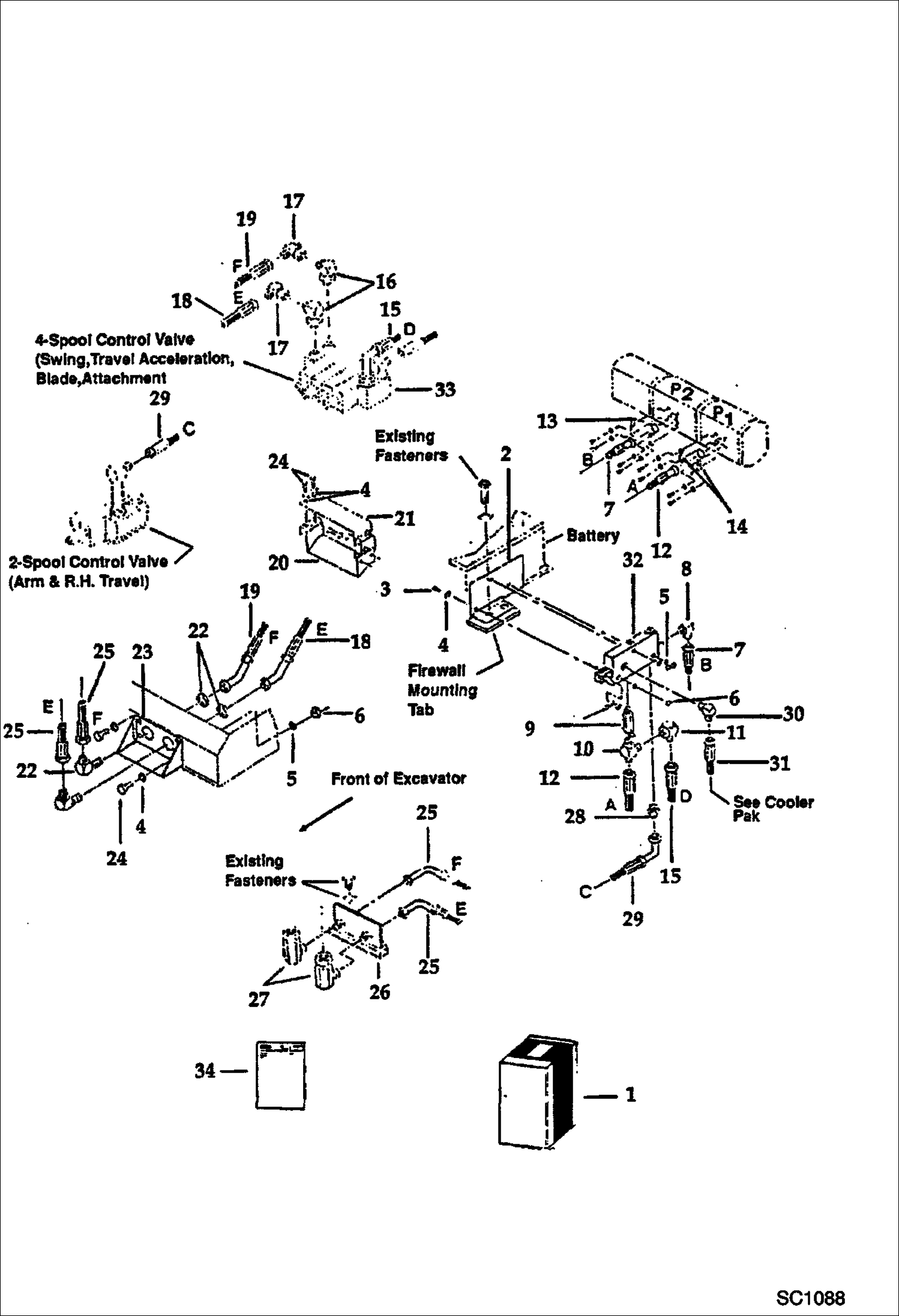

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Circuitry) (2500) (Use on 116 505011001 - 11999) Экскаваторы

1

KIT NLA - order individual parts

2

6651725

BRACKET

3

BOLT NLA - Was 7C000540B - A

4

25E16

WSHR

5

23E16

LOCK WSHR

6

85D5

NUT 5

7

6651726

HOSE

8

6651727

ELBOW

9

6651728

VALVE CK.

10

6651729

TEE

11

6651349

ELBOW

12

6651730

HOSE

13

6651731

O'RING

14

6651732

FLANGE split

15

6651733

HOSE

16

ELBOW NLA - Was 6651734 - A

17

6650571

ELBOW

18

6651735

HOSE

19

6651736

HOSE

20

6651737

BRACKET

21

6651738

BRACKET

22

6651739

ELBOW

23

6651740

BRACKET

24

17C516

BOLT

25

6651741

HOSE

26

6651742

BRACKET

27

6651373

ELBOW swivel

28

6651743

CONNECTOR

29

6651744

HOSE

30

6651745

ELBOW

31

6651746

HOSE

32

6651724

VALVE ASY

33

6651374

ADAPTER

34

INSTRUCTIONS packed with kit
