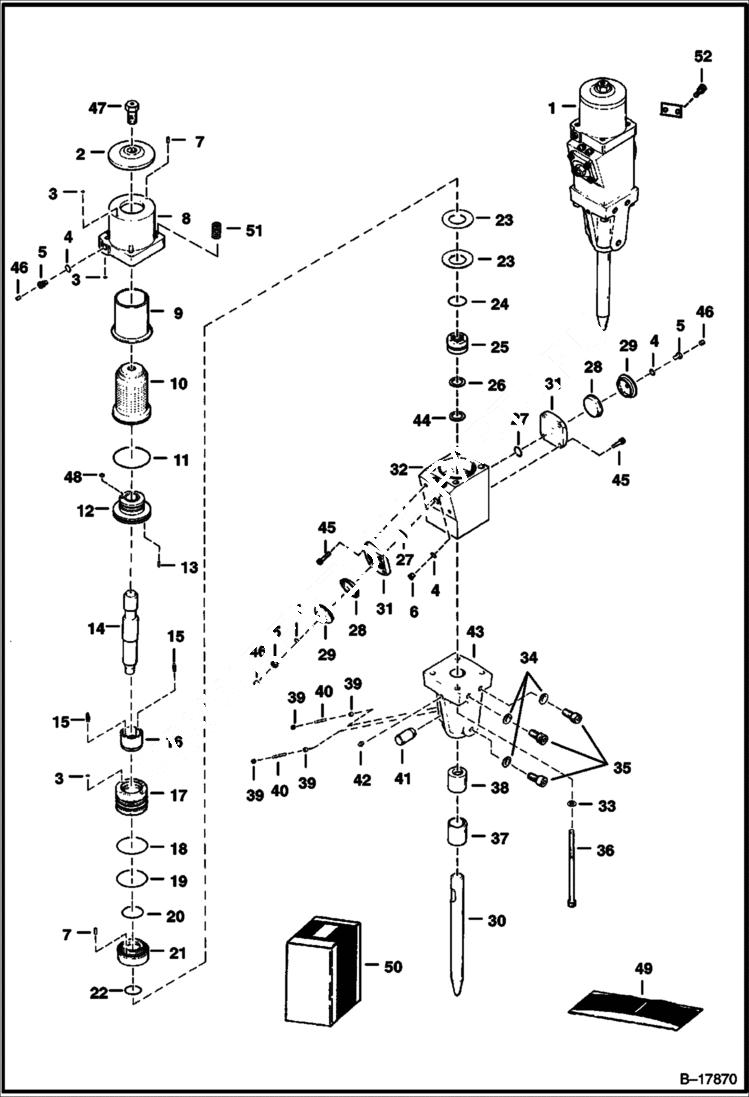

Запчасти Bobcat BREAKERS BREAKER (2500) (Use on 225, 231, 325, 328, 331, 334) Экскаваторы

1

BREAKER NLA - Ref. 2 - 48 - Was 6630514 - A

2

PLATE NLA - Was 6630649 - A

3

6630641

O-RING

4

79K8

O RING 10

5

6679827

VALVE charge - Was 6672859 - A

6

47K6

PLUG

7

209968

PIN

8

CHAMBER NLA - Was 6630648 - A

9

6630647

DIAPHRAGM

10

6630646

SCREEN main

11

58K258

O RING 10

12

MANIFOLD NLA - assy - newer manifolds do not require Ref. 48 - Was 6630645 - A

13

742953

ROLL PIN

14

HAMMER NLA - Was 6630644 - A

14

HAMMER NLA - crosshatched - 15.2'' long - Was 6664853 - A

15

6630643

PIN push

16

VALVE NLA - Order Ref. 50

16

VALVE NSS - Order Ref. 50

17

VALVE NSS - cylinder - Order Ref. 50

17

VALVE NSS - cylinder - Order Ref. 50

18

6630673

SEAL poly-pac - .125'' x 5.25'' (3,18mm x 133,35mm)

19

6630672

SEAL poly-pac - .125'' x 5.125'' (3,18mm x 130,18mm)

20

58K238

O-RING

21

VALVE NLA - seat - Was 6630639 - A

22

6630638

SEAL poly-pac - W/ O-ring removed

23

DISC NLA - Spring - Was 6630637 - A

24

58K235

O RING 10

25

6630636

BEARING lower

26

SEAL NLA - poly-pac - Was 6630634 - A

26

6664854

SEAL

27

58K224

O RING 10

28

6630631

DIAPHRAGM accumulator

29

6630632

PLUG accumulator

30

TOOL See Illustration BREAKER/ C3185

31

6630630

SCREEN accumulator

32

BODY NLA - main - Was 6630628 - A

33

6631423

WASHER

34

6654811

WASHER cone - Also Order Ref. 35 - Was 6630515 - A

35

6654810

BOLT Also Order Ref. 34 - Was 73G001632B - A

36

6656345

BOLT

37

BEARING NLA - Was 6630621 - A

38

STOP NLA - Was 6630622 - D

39

6630623

SPRING retainer pin

40

6630624

PIN retainer

41

6630625

PIN retainer

42

6630626

GREASE ZERK

43

BODY NLA - lower - W/Ref. 37 - 42 - Was 6648906 - A

44

SEAL NLA - poly-pac - W/ O-Ring Removed - Was 6630635 - A

44

6665125

SEAL

45

73G1028

BOLT

46

6630682

PLUG .125'' (3,18mm) NPT

46

6663956

PLUG .3125 (7,94mm) NPT

46

47K4

PLUG 1/2'' O-ring boss

47

BOLT NLA - Was 6630650 - A

48

PLUG NLA - orifice - not used with newer manifolds (Ref. 12) - plug W.20'' hole - Was 6633700 - A

49

6666550

KIT, SEAL Ref. 3, 4, 6, 11, 18 - 20, 22, 24, 26, 27 & 44 - Was 6660116 - A

50

6632220

VALVE KIT Ref. 16 & 17

51

6661237

HELICOIL

52

6673312

RIVET for serial no. plate
