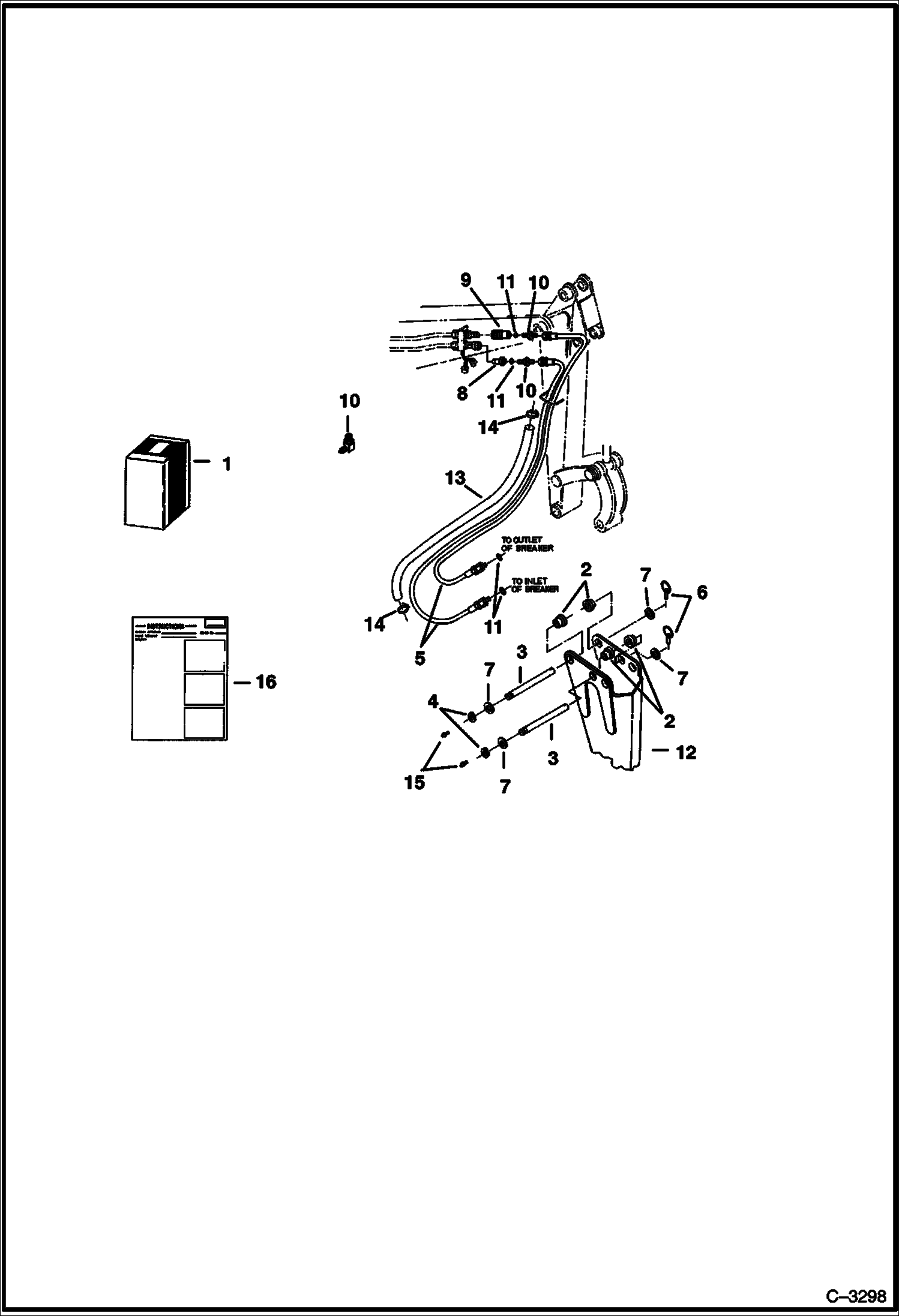

Запчасти Bobcat BREAKERS BREAKER (Mounting Kit) (1250X) (Use on 225, 325, 328) Экскаваторы

1

KIT NLA - Breaker Mounting - Order components - Was 6587109 - A

2

6535607

BUSHING

3

6535608

PIN

4

6534154

RING

5

6535622

HOSE For Arm mounted Aux. Lines on model 225- not included in Kit - order separately

5

6586452

HOSE For Boom Mounted Aux. Lines

6

6560382

PIN, LOCK Retaining

7

6534111

WASHER

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6669655

SEAL KIT

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

48K16

O RING 10 For Poppet Coupler

9

6665430

BACKUP RING For Poppet Coupler

10

18K7

FITTING W/Ref. 11 - for Arm mounted Aux. Lines - not included in Kit - order separately

10

15K7

FITTING W/Ref. 11 - For Boom Mounted Aux. Lines - used with Poppet Couplers

10

15KB1012

FITTING, HYD CONNECTOR W/Ref. 11 - For Boom Mounted Aux. Lines - used with Flush Face Couplers - Was 755055B - A

11

79K10

O RING 10 Use With Poppet Couplers

11

79K12

O RING 10 Use W/Flush Face Couplers

12

6650272

FRAME Not Included W/Kit - Order Separate

13

6656155

HOSE COVER bulk - sold per foot

14

6610510

TIE For Boom Mounted Aux. Lines

15

10H25

FITTING, GREASE 5

16

6720234

INSTRUCTIONS
