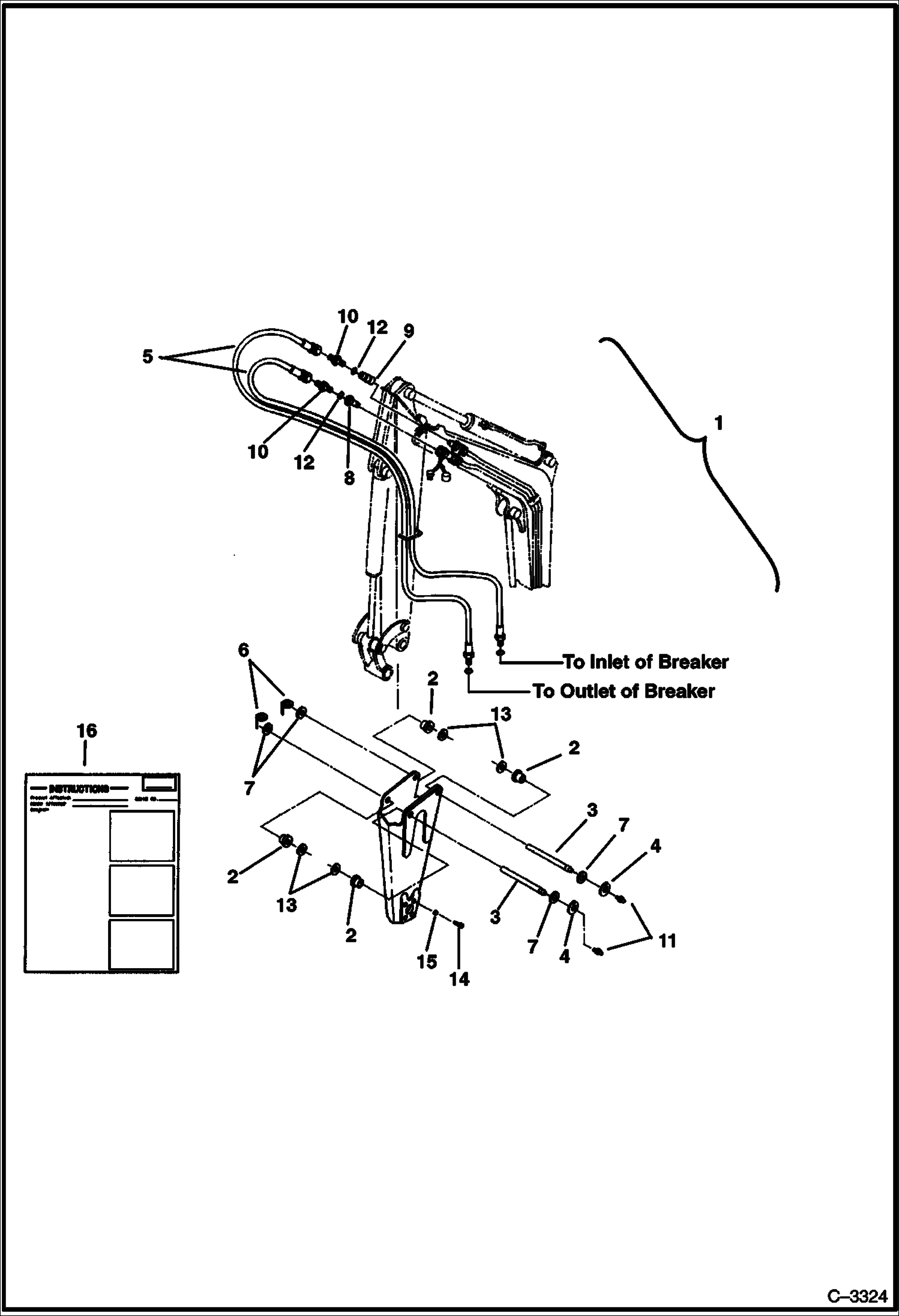

Запчасти Bobcat BREAKERS BREAKER (Mounting Kit) (1250X) (Use on 220, 320, 322) Экскаваторы

1

6587539

KIT breaker mounting - W/Ref. 2-14 - Was SALES

2

6537042

BUSHING

3

6533940

PIN

4

6534656

SNAP RING

5

6587540

HOSE W/Ref. 2

6

6560382

PIN, LOCK retaining

7

6599489

WASHER

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

15K7

FITTING W/Ref. 12 - Use W/Poppet Couplers

10

15KB1012

FITTING, HYD CONNECTOR W/Ref. 12 - Use W/Flush Face Couplers - Was 755055B - A

11

10H25

FITTING, GREASE 5

12

79K10

O RING 10 Use W/Poppet Style Couplers

12

79K12

O RING 10 Use W/Flush Face Couplers

13

6533856

SHIM

14

BOLT NLA - Was 6665424 - A

15

WASHER NLA - Was 6650273 - A

16

6720234

INSTRUCTIONS
