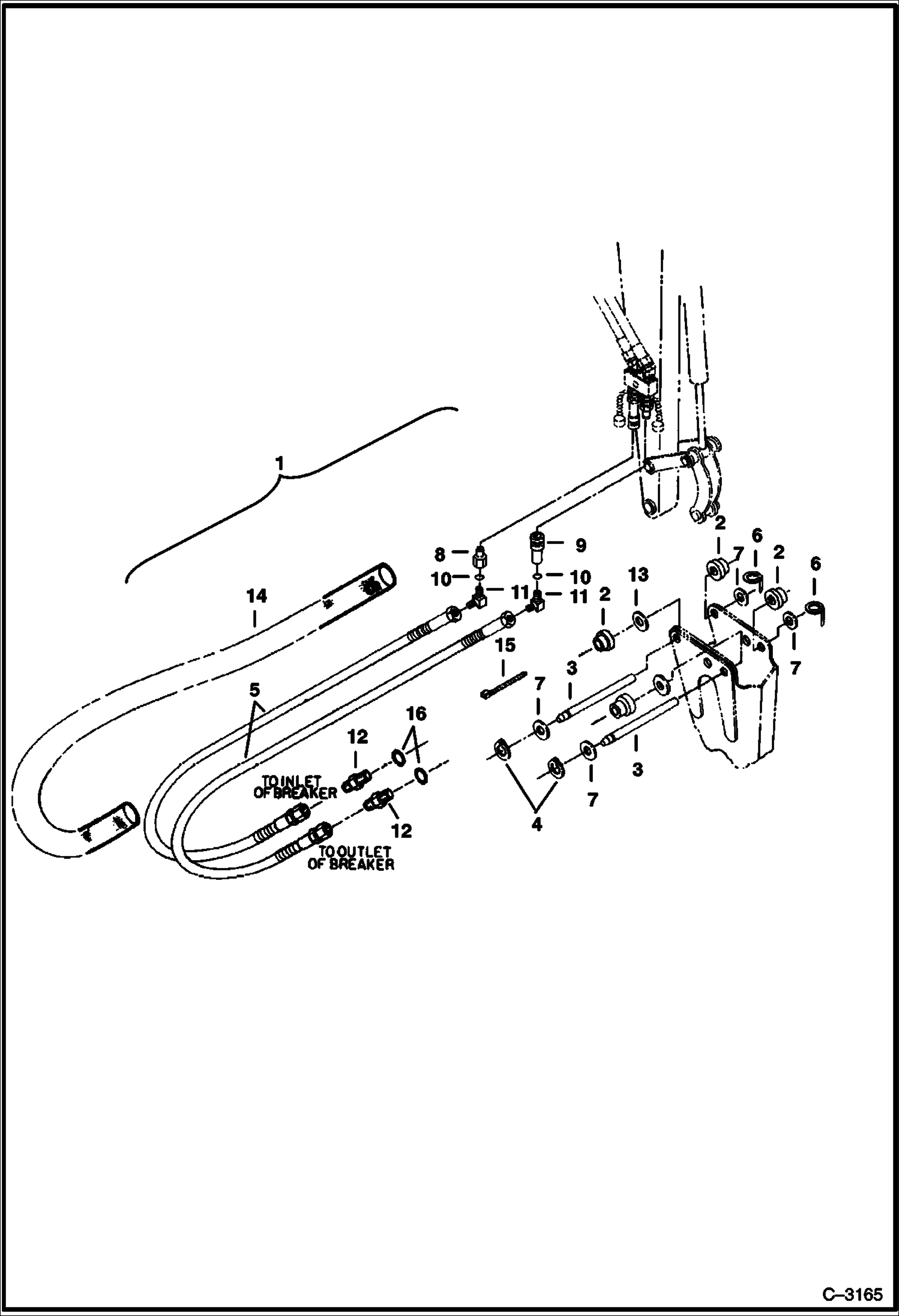

Запчасти Bobcat BREAKERS BREAKER (Mounting Kit) (1250X) (Use on 220 508212001 & Above) Экскаваторы

1

KIT NLA - Breaker mounting-W/Ref. 2-10 - Order Individual Parts

2

6537042

BUSHING

3

6533940

PIN some pins do not have grease holes

4

6534656

SNAP RING

5

6535622

HOSE

6

6560382

PIN, LOCK retaining

7

6599489

WASHER

8

6598757

COUPLER, POPPET MALE straight

8

6674688

COUPLER, FF MALE straight - Was 6667808 - A

8

6679841

SEAL Was 6672026 - A

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

10

79K10

O RING 10 Use W/Poppet Couplers

10

79K12

O RING 10 Use W/Flush Face Couplers

11

17K7

ELBOW 90 degree - W/Ref. 10 - Used W/Poppet Couplers

11

17KB1012

FITTING, HYD ELBOW 90 degree - W/Ref. 10 - used W/Flush Face Couplers - Was 1302104 - A

12

10H25

FITTING, GREASE 5

13

6533856

SHIM

14

6656155

HOSE COVER bulk - sold per foot

15

6610510

TIE

16

6666769

GASKET Included W/lower gasket kit - Was 3974108B - A
