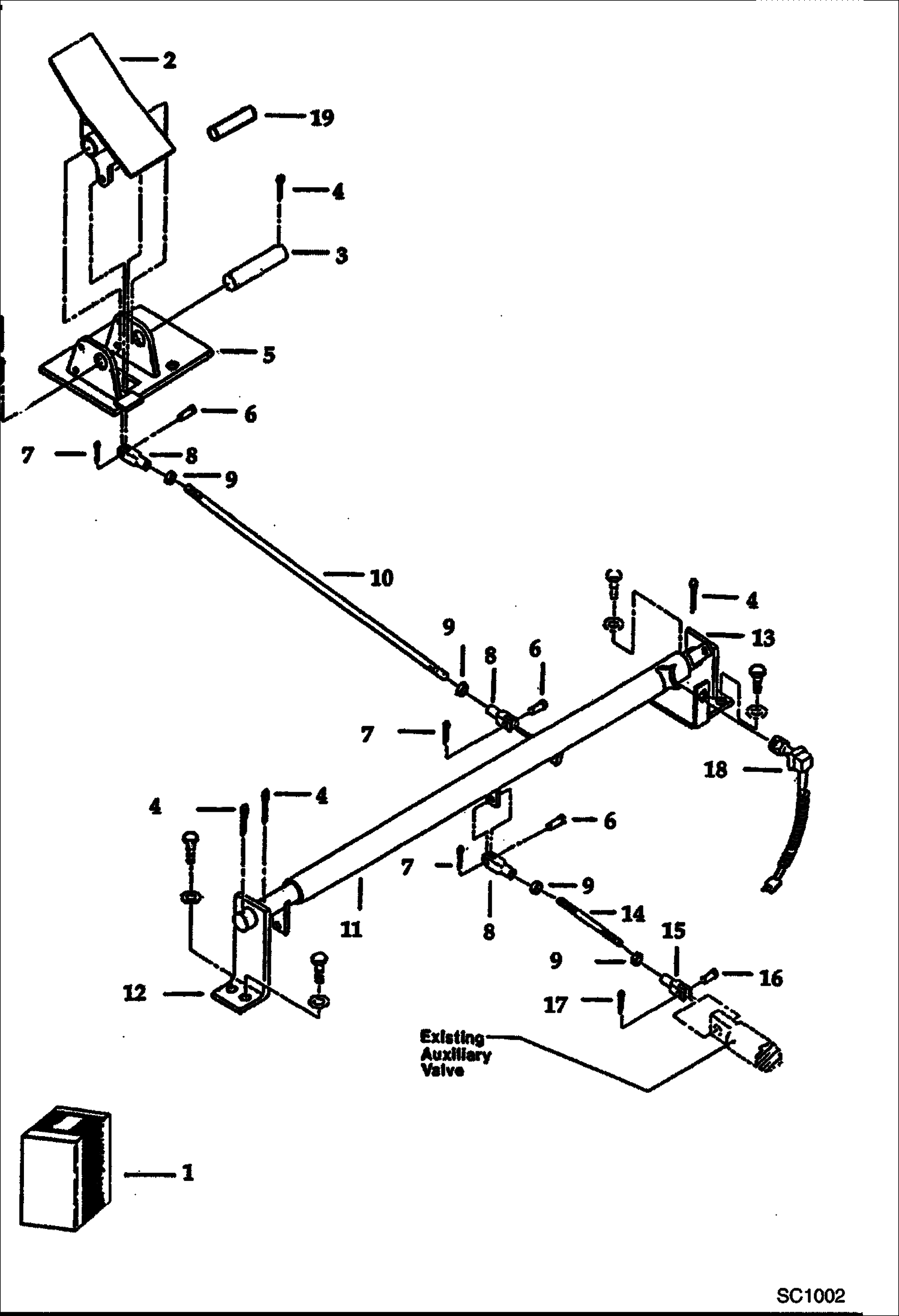

Запчасти Bobcat BREAKERS BREAKER (Control Pedal) (1250X) (2500) (Use on 100 504912001 & Above) Экскаваторы

1

KIT See Illustration BREAKER/ SC1002 NLA - Order all part numbers from these Illustions

2

6651393

PEDAL

3

6651394

ROD pin

4

COTTERPIN NLA - Was 1F432 - A

5

6651395

BASE bracket

6

PIN NLA - clevis - Was 6651398 - A

7

COTTER PIN NLA - Was 1F00324B - A

8

6651397

YOKE

9

85D5

NUT 5

10

6651396

ROD

11

6651404

ROD

12

6651403

BRACKET

13

6651405

PIVOT bracket

14

6651400

ROD

15

6651401

YOKE

16

6651402

CLEVIS PIN

17

COTTER PIN NLA - Was 1F000108B - A

18

6651406

SWITCH

19

6651415

PIN lock
