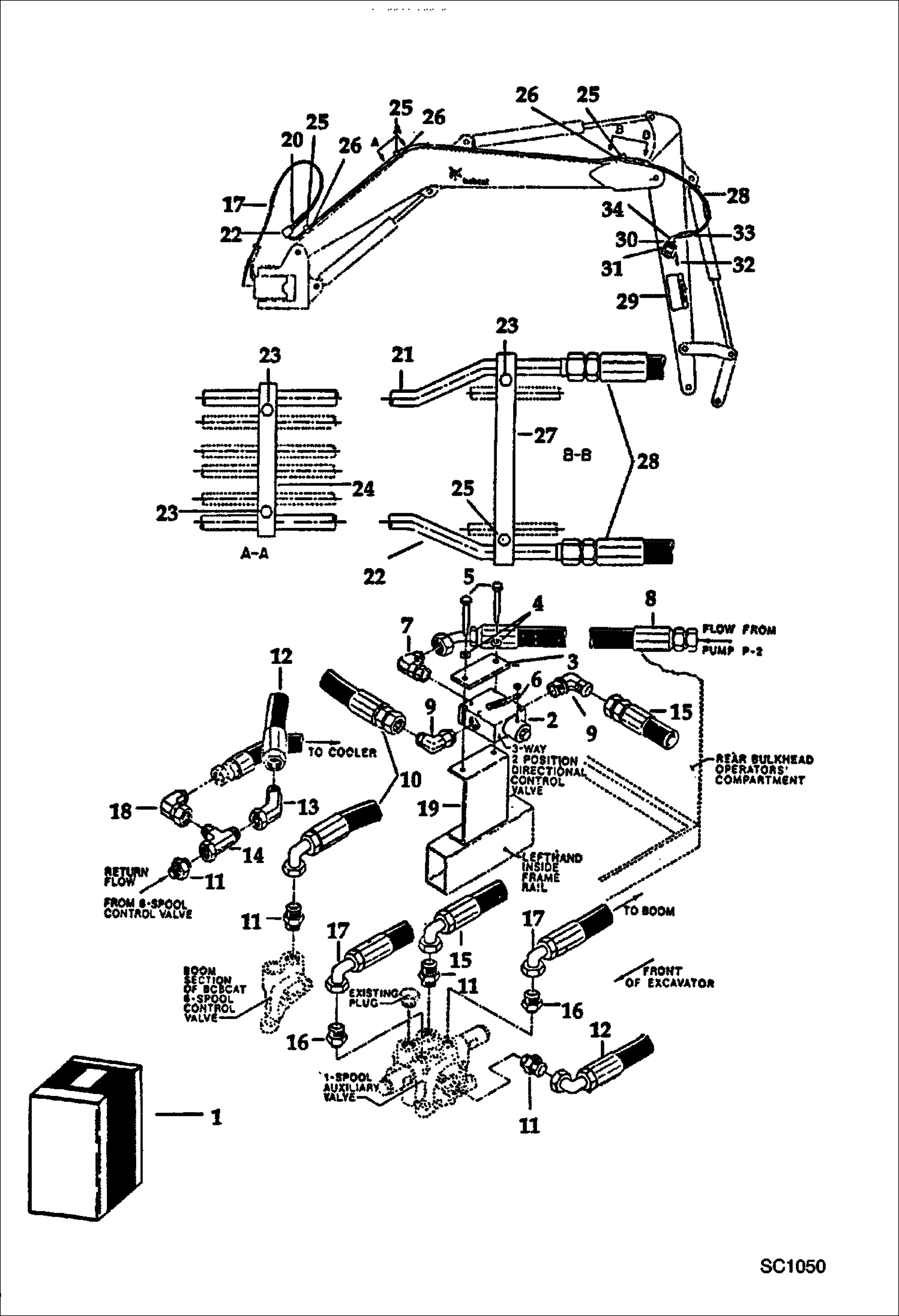

Запчасти Bobcat BREAKERS BREAKER (Hydraulic Circuitry) (1250X) (Use on 76 504811001 - 11999) Экскаваторы

1

KIT SALES

2

6650557

VALVE

3

6650558

MOUNT

4

WASHER NLA - Was 25E000004B - A

5

17C432

BOLT

6

6650559

HARNESS

7

6650560

ELBOW

8

6650561

HOSE

9

6650562

ELBOW

10

6650563

HOSE

11

6650564

CONNECTOR

12

6650565

HOSE

13

6650566

ELBOW

14

6650567

TEE

15

6650568

HOSE

16

6650569

CONNECTOR

17

6650570

HOSE

18

ELBOW NLA - Was 7760571 - A

19

6650556

BRACKET

20

6650572

CONNECTOR

21

TUBE NLA - l. h. - Purchase a hose locally to replace the tube - Was 6650573 - A

22

6650574

TUBE r.h.

23

17C624

BOLT 5

24

6650575

CLAMP

25

6650576

CLAMP

26

6650577

CLAMP

27

6650578

CLAMP

28

6650579

HOSE

29

6650580

DECAL warning

30

6650581

BRACKET

31

6598758

COUPLER, POPPET FEMALE straight

32

6598757

COUPLER, POPPET MALE straight

32

6515167

PLUG

32

6515168

CAP

33

86F7

LOCK NUT

34

45K7

CONNECTR
