BREAKER - B300 (EUROPE ONLY)

Запчасти Bobcat BREAKERS BREAKER - B300 (EUROPE ONLY) Экскаваторы

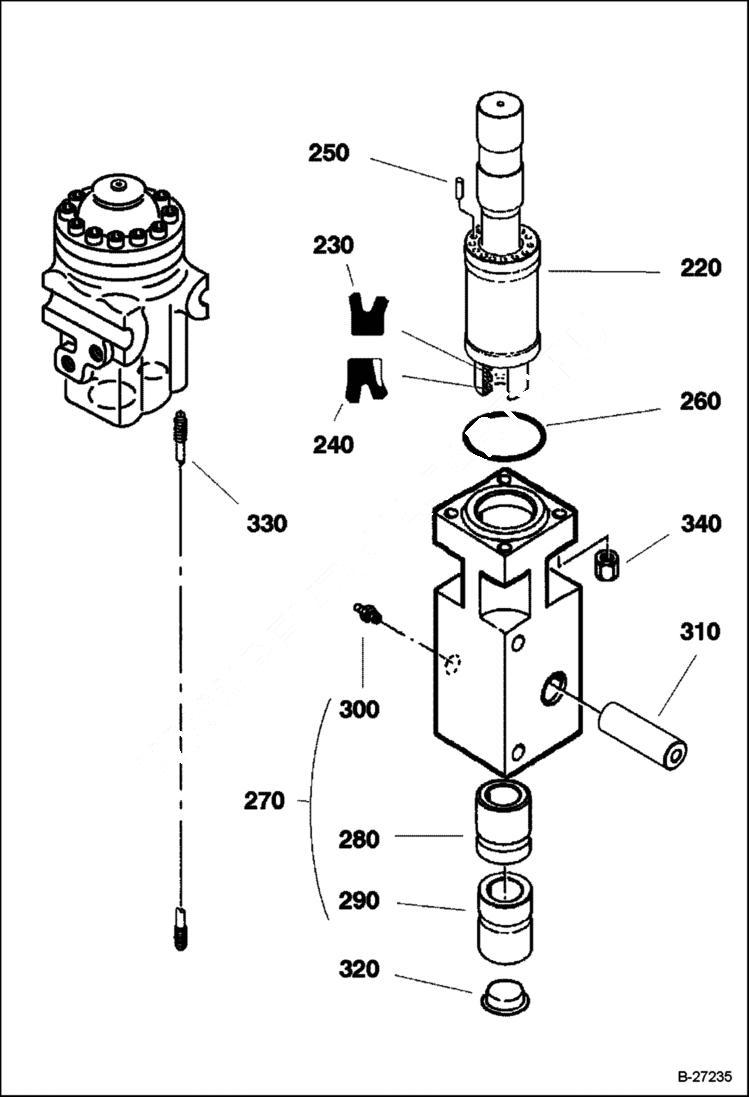

Схема запчастей Bobcat BREAKERS - BREAKER - B300 (EUROPE ONLY) Экскаваторы
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

220

86404662

CYLINDER

230

86400405

LIP SEAL part included in seal kit

240

86603099

LIP SEAL part included in seal kit

250

86302015

PIN

260

86222080

O-RING part included in seal kit

270

86577590

COMPLETE FRONT GUIDE INCLUDING

280

86397601

UPPER CHUCK BUSHING

290

86397619

LOWER CHUCK BUSHING

300

86230059

OILER

310

86592326

RETAINING PIN

320

86410537

PLASTIC PLUG

330

86474889

ASSEMBLING BOLT

340

86398021

NUT

340

86603602

SEAL PACKAGE
