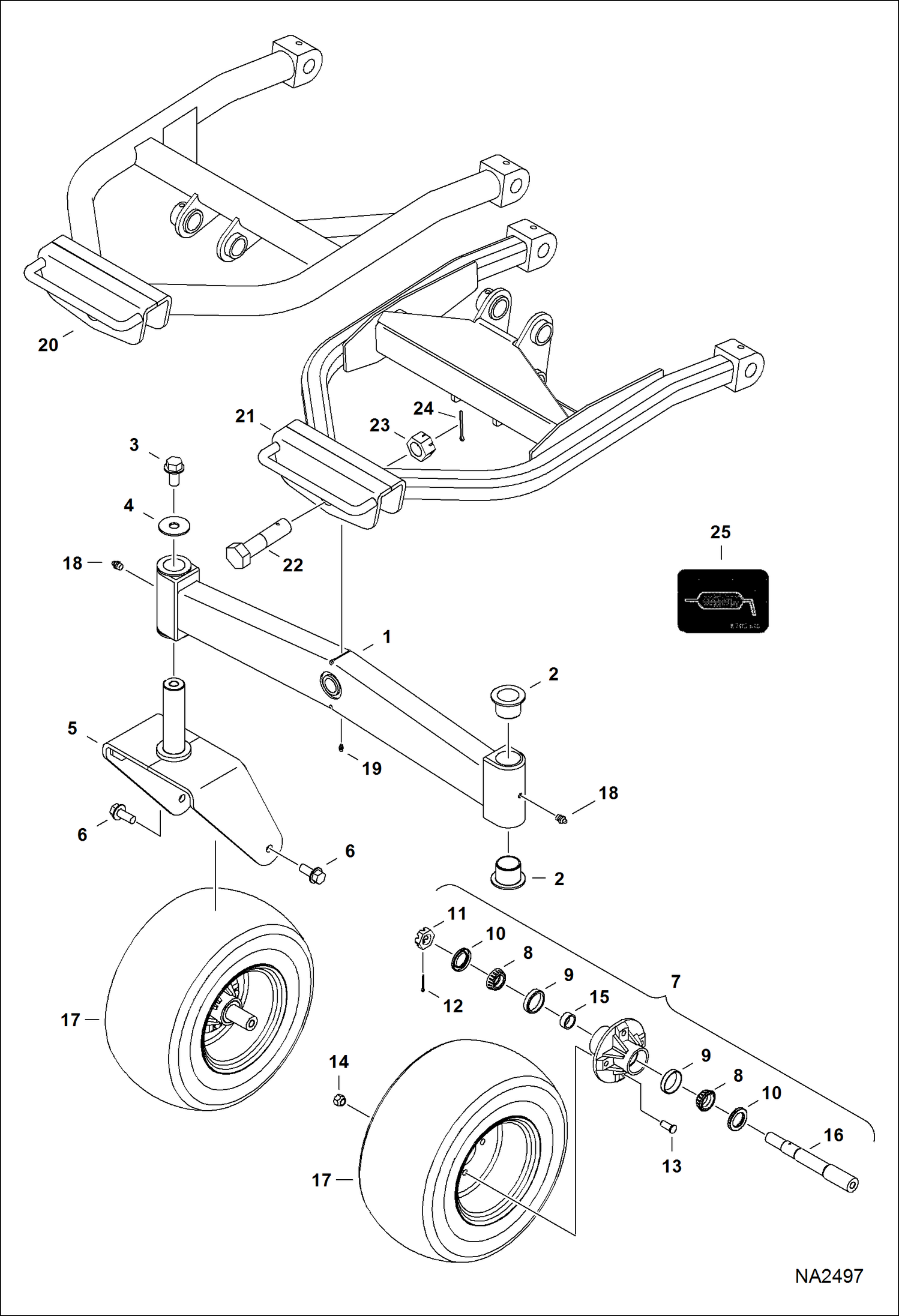

Запчасти Bobcat BOX BLADE BOX BLADE (Tire Mount Assembly) (84 6574) (84 Laser 6575) Loader

1

6905746

MOUNT W/Ref. 2

2

6905677

BUSHING

3

31C1224

BOLT Was 35C001224B - A

4

6905689

WASHER

5

6905748

YOKE

6

31C1024

BOLT

7

6906270

HUB ASSY W/Ref. 8-14

8

6674366

BEARING

9

6674367

RACE

10

6674368

SEAL

11

6674277

NUT

12

1F420

CTTR PIN

13

6679125

STUD

13

6674278

BOLT for threaded hub

14

6679123

NUT

15

6905755

BUSHING

16

6905680

SHAFT

17

6676595

TIRE ASSY pneumatic

17

6677511

TIRE

17

6677512

WHEEL

17

6906929

TIRE ASSY foam-filled

18

10H25

FITTING, GREASE 5

19

10H35

FITTING, GREASE 10

20

6906592

ARM

21

7125325

ARM

22

1F640

PIN

23

4D20

NUT

24

6906130

BOLT

25

6705340

DECAL, GREASE
