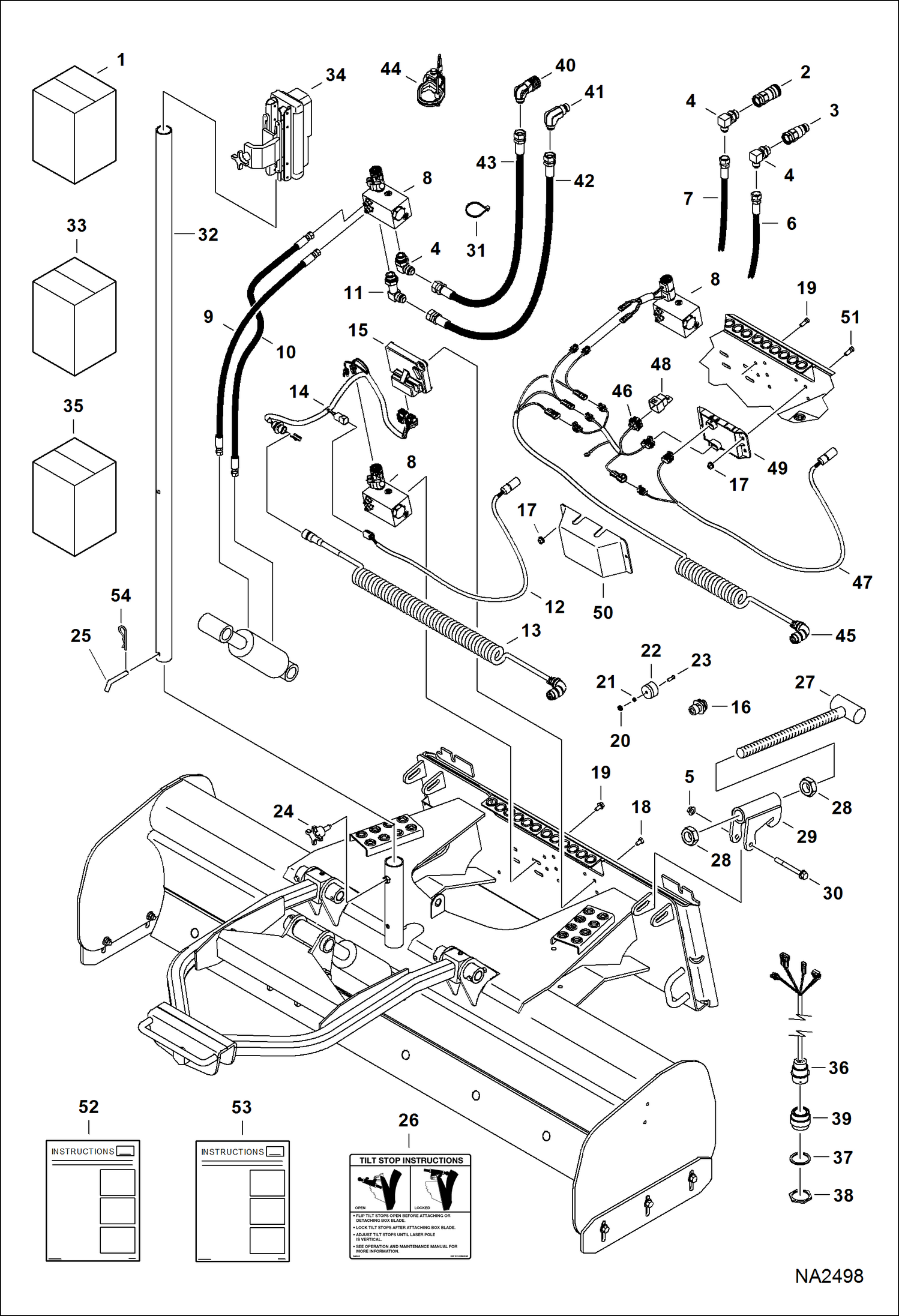

Запчасти Bobcat BOX BLADE BOX BLADE (Laser) (84 6574) (84 Laser 6575) Loader

1

KIT, BLADE BOX LASER SALES #6958471 - Ref. 4, 5, 8-15, 18, 19, 24, 25-32, 40-43 & 53

2

6672960

COUPLER, FF FEMALE straight - Faster #2FF112-34SAE-FL

3

6674688

COUPLER, FF MALE straight

4

ELBOW NLA - Use W/laser - tapered boss face - Was 17KV00008B - A

4

17KB1212

FITTING, HYD ELBOW Use W/laser - flat boss face

4

79K12

O RING 10

5

83D8

NUT 5 Was 55D8 - B

6

HOSE NLA - Order Ref. 43 - Use W/laser - Was 6906733 - A

7

HOSE NLA - Order Ref. 42 - Use W/laser - Was 6906734 - A

8

6677923

VALVE ASSY See Illustration BOX BLADE/ B18964

9

6906659

HOSE, HYD

10

6906660

HOSE, HYD

11

6716443

ELBOW

12

7150497

HARNESS, INPUT 7-PIN

13

7144375

CABLE, RECEIVER BLR2

14

7164097

HARNESS, CONTROLLER

15

6697951

CONTROLLER, ACD

16

6675128

CAP

17

83D6

NUT 5 Was 55D6 - B

18

1CM1020

BOLT Was 1CM1016 - B

19

31C612

BOLT Was 35C612 - A

20

12D10

NUT

21

17E10

WASHER

22

6679017

DUST CAP

23

1G1010

SCREW

24

6906655

KNOB

25

6906654

PIN, W/SNAP PIN W/Ref. 54

26

6906930

DECAL tilt stop instructions

27

6906889

STOP

28

6906903

NUT

29

6906879

STOP

30

31C872

SCREW Was 35C000872B - A

31

6624289

STRAP, TIE

32

6906559

ROD laser mount

33

LASER KIT NLA - Ref. 22, 34 & 45 - Order components - Was 6678994 - A

33

BEACON SALES #6679015 - laser transmitter

33

TRIPOD STAND SALES #6679016

34

RECEIVER LASER BLR2 - NLA - Order SALES #7160486 - Was SALES #7160486 - A

35

6958772

KIT, LASER 14-PIN TEE 14-pin - for 7-pin laser box blade use W/ 14-pin loader - Ref. 36-39 & 52

36

6814956

HARNESS 14-pin conversion - for laser box blade

37

6664037

WASHER

38

6664036

NUT

39

6673680

RECEPTACLE, TWIST-LOC

40

7168433

COUPLER, FF FEMALE 90 degree

41

7168432

COUPLER, FF MALE 90 degree

42

7181232

HOSE, HYD 1778 mm (70'') long - 1.0625'' threads - Use 90 degree couplers

43

7181233

HOSE, HYD 1829 mm (72'') long - 1.0625'' threads - Use 90 degree couplers

44

7161953

GUIDE, HOSE ASSY

45

7137148

CABLE laser receiver - Was 6679018 - A

46

6906678

HARNESS ACD to valve

47

6719853

HARNESS 7-pin

48

6670312

SWITCH, MAGNETIC relay

49

6678677

CONTROLLER, ACD BASE Was 6674944 - A

50

6905670

COVER

51

25G616

SCREW

52

6901005

INSTRUCTIONS - adapter harness

53

6902036

INSTRUCTIONS - box blade laser kit

54

6648587

PIN, SNAP
