BACKHOE 7TB & 8TB (Mounting Kit)

Запчасти Bobcat BACKHOE BACKHOE 7TB & 8TB (Mounting Kit) BACKHOE

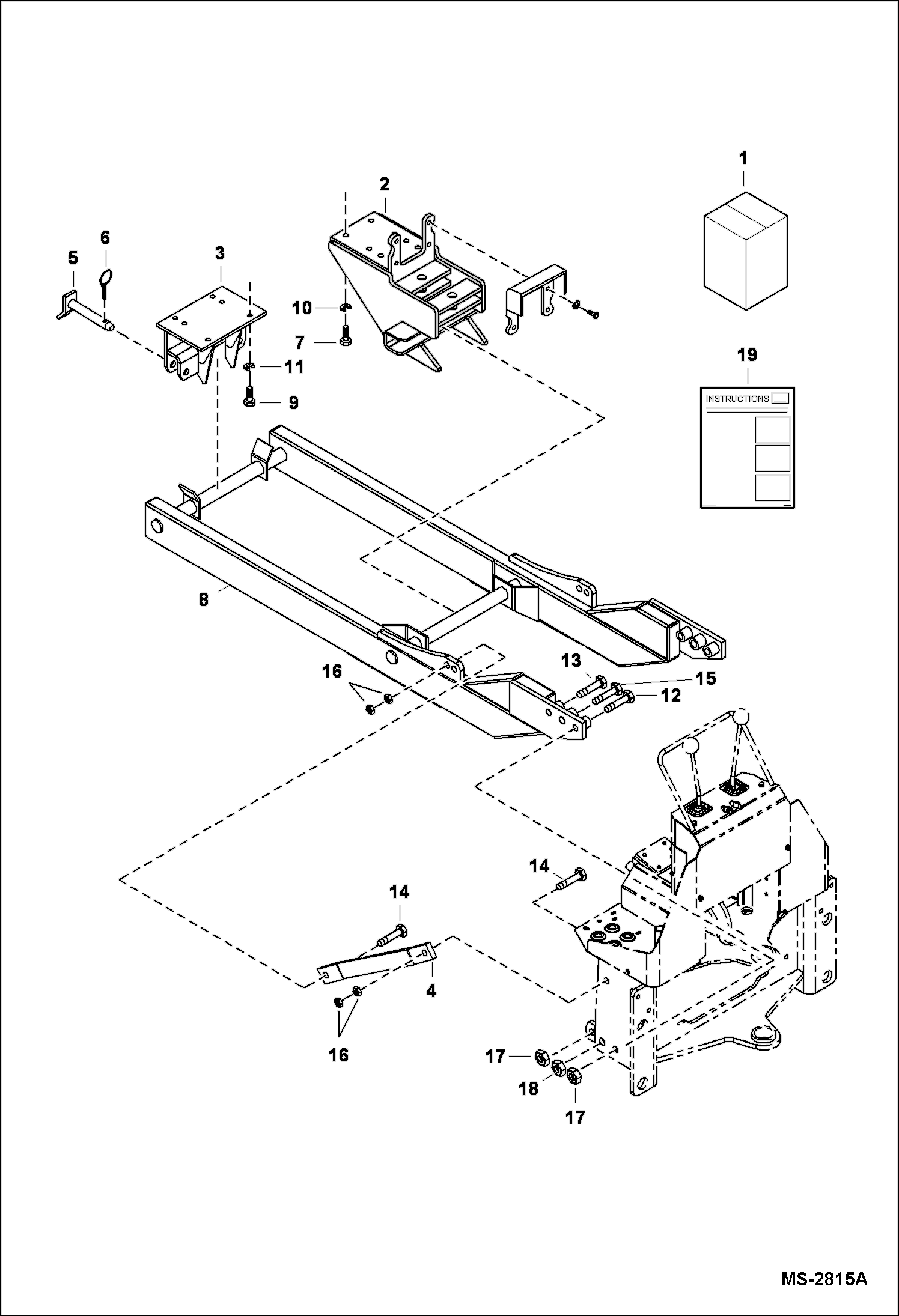

Схема запчастей Bobcat BACKHOE - BACKHOE 7TB & 8TB (Mounting Kit) BACKHOE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KIT, BACKHOE MOUNT SALES #7164648 - Ref. 2-19

2

7164673

MOUNT, REAR

3

7164672

MOUNT, FRONT

4

7170957

MOUNT

5

6693845

PIN ASSY

6

6693589

PIN

7

6698073

BOLT

8

7164674

FRAME, MOUNT

9

7170960

BOLT

10

7170387

WASHER

11

7170388

WASHER

12

17C1264

BOLT

13

17C1256

BOLT

14

17C1244

BOLT

15

17C1464

BOLT

16

85D12

NUT, 5

17

7170958

NUT

18

7170959

NUT

19

6986709

INSTRUCTIONS
