Запчасти Bobcat BACKHOE BACKHOE 8TB (Swing Frame) BACKHOE

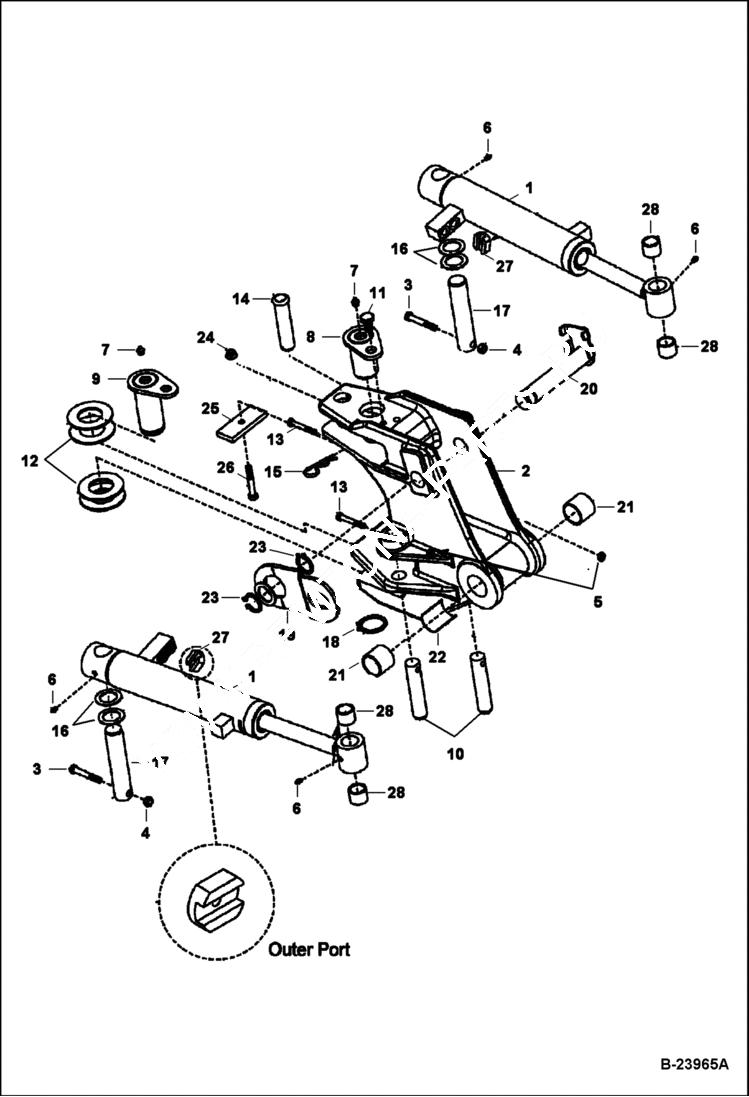

Схема запчастей Bobcat BACKHOE - BACKHOE 8TB (Swing Frame) BACKHOE

Артикул

Название

Примечание

Количество

1

7003561

CYLINDER, SWING See Illustration BACKHOE 8TB/ B23971A

2

7003562

FRAME, SWING

3

17C640

BOLT 5

4

85D6

NUT, 5

5

85D5

NUT 5

6

10H35

FITTING, GREASE 10

7

10H25

FITTING, GREASE 5

8

7003563

PIN

9

7003564

PIN

10

7003565

PIN

11

7003566

BOLT

12

7003567

WASHER

13

17C536

BOLT

14

7003568

PIN, CLEVIS

15

6693685

PIN, COTTER

16

7003569

BUSHING

17

7003570

PIN

18

7003571

RING, RETAINING

19

7003572

LOCK, BOOM

20

7003573

PIN

21

7003533

BUSHING

22

7003530

SPACER

23

7003574

RING, RETAINING

24

57D6

NUT 5

25

7003575

CLAMP

26

17C640

BOLT 5

27

7003522

ORIFICE

28

6698031

BUSHING, PRESS IN

Выбрано товаров: 28
