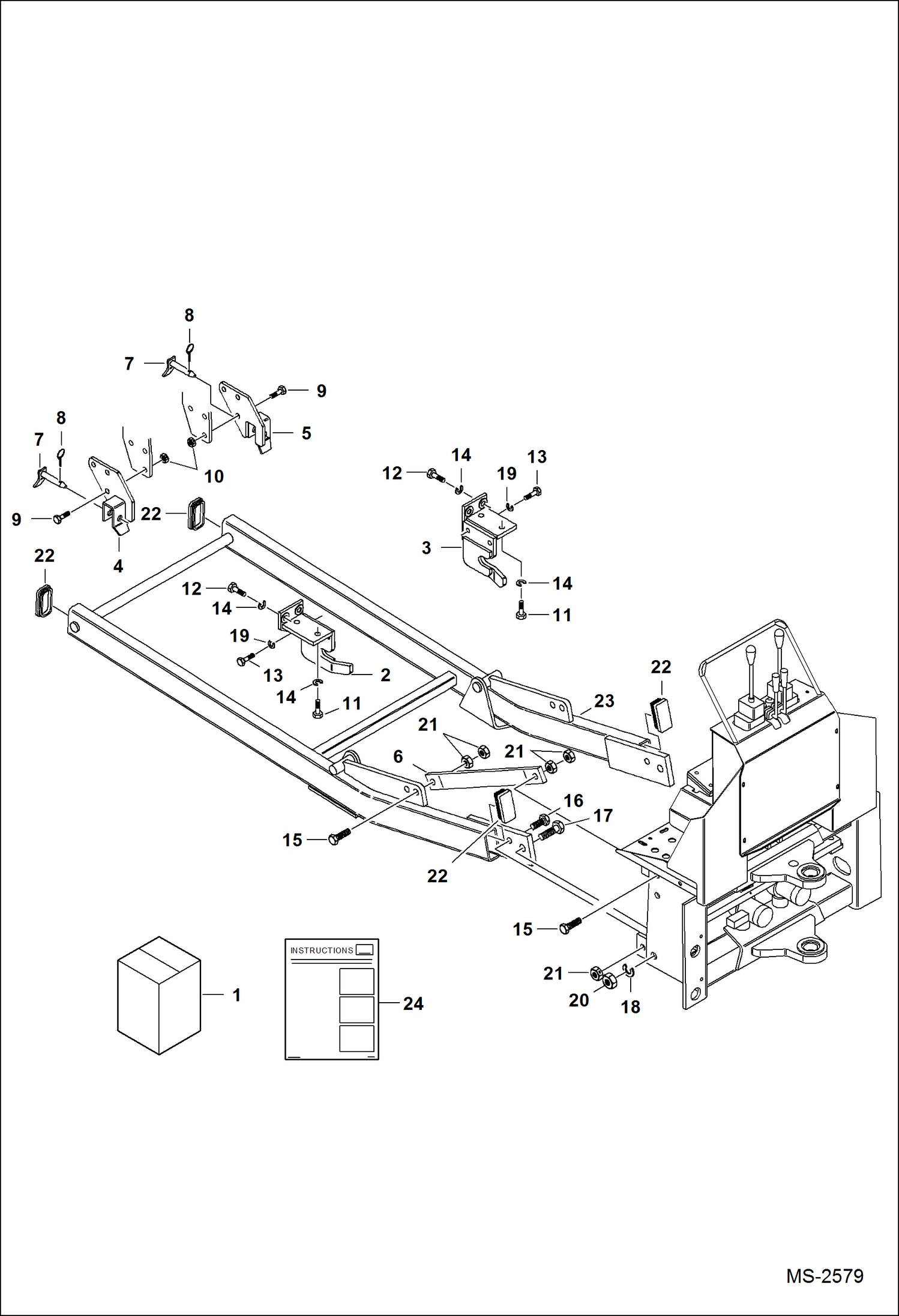

Запчасти Bobcat BACKHOE BACKHOE 6TB (Mounting Kit) (CT225) (CT230) (A914) BACKHOE

1

FRAME MOUNTING KIT SALES #7151804 - 6TB

2

6693838

BRACKET, HANGER REAR LH

3

6693839

BRACKET, HANGER REAR RH

4

6693840

BRACKET, HANGER FRONT LH

5

6693841

BRACKET, HANGER FRONT RH

6

6693844

BAR, MOUNT

7

6693845

PIN ASSY

8

6693589

PIN

9

17C924

BOLT

10

85D9

NUT

11

1CM1440

BOLT

12

5CM1440

BOLT, 14MM

13

6CM1240

BOLT

14

4E9

WASHER

15

17C1244

BOLT

16

17C1264

BOLT Was 17C1240 - B,D

17

17C1472

BOLT Was 17C1448 - B,D

18

4E14

LOCKWSHR

19

4E8

WASHER

20

61D14

NUT

21

85D12

NUT, 5

22

6693843

PLUG, TUBE

23

7153188

FRAME, 6TB CT225 6TB - CT225

24

6986709

INSTRUCTIONS
