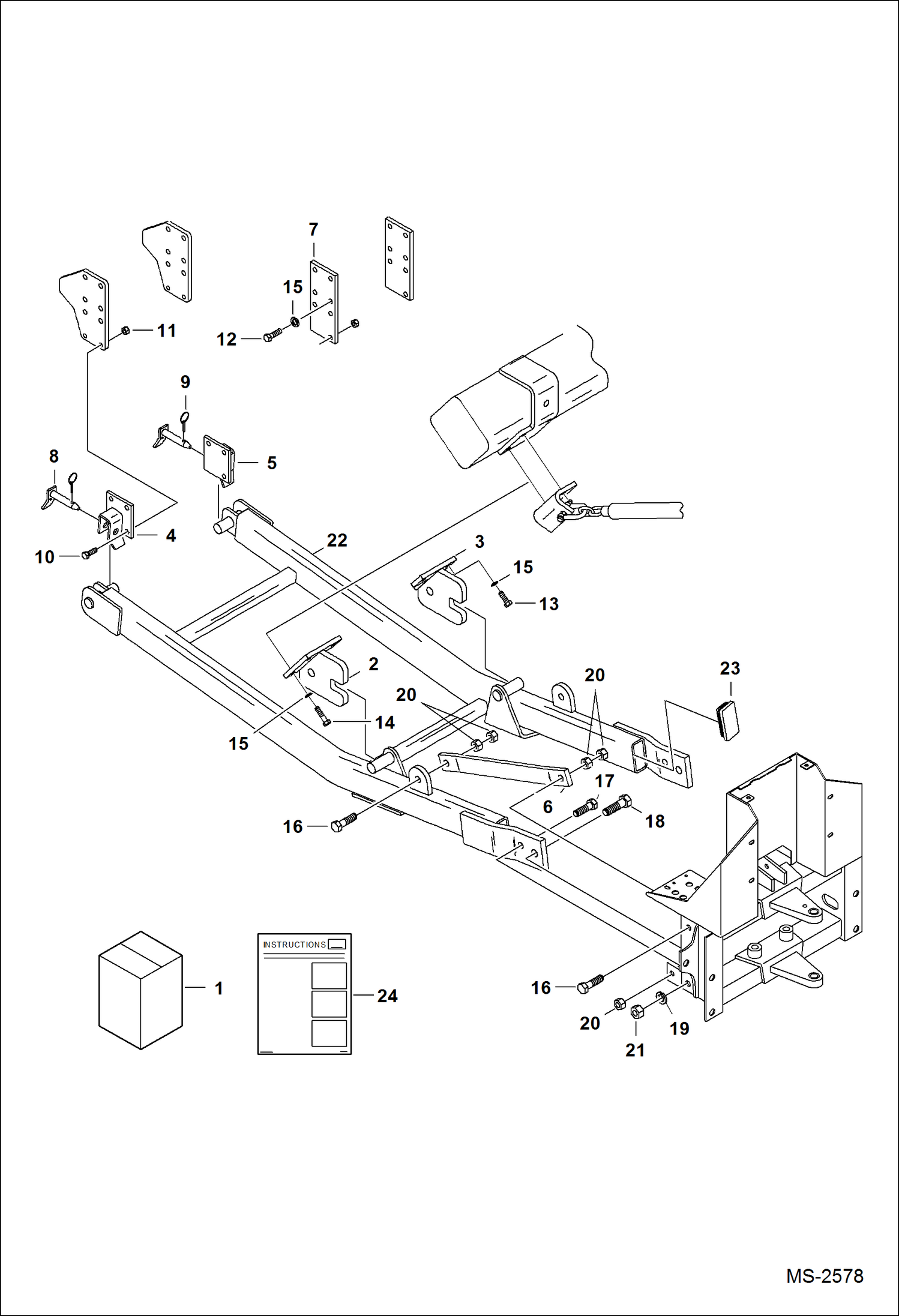

Запчасти Bobcat BACKHOE BACKHOE 6TB (Mounting Kit) (CT120) (C122) (A914) BACKHOE

1

FRAME MOUNTING KIT SALES #7151803 - 6TB

2

6693846

BRACKET, LUG LH

3

6693847

BRACKET, LUG RH

4

6693848

BRACKET, HANGER LH

5

6693849

BRACKET, HANGER RH

6

6693844

BAR, MOUNT

7

6693650

PLATE, SUPPORT

8

6693845

PIN ASSY

9

6693589

PIN

10

17C824

BOLT 5

11

85D8

NUT, 5

12

5CM1445

BOLT, 14MM

13

5CM1440

BOLT, 14MM

14

5CM1450

BOLT, 14MM

15

4E9

WASHER

16

17C1244

BOLT

17

17C1240

BOLT

18

17C1448

BOLT

19

4E14

LOCKWSHR

20

85D10

NUT, 5

21

61D14

NUT

22

7153187

FRAME, 6TB CT120 6TB - CT120

23

6693843

PLUG, TUBE

24

6986709

INSTRUCTIONS
