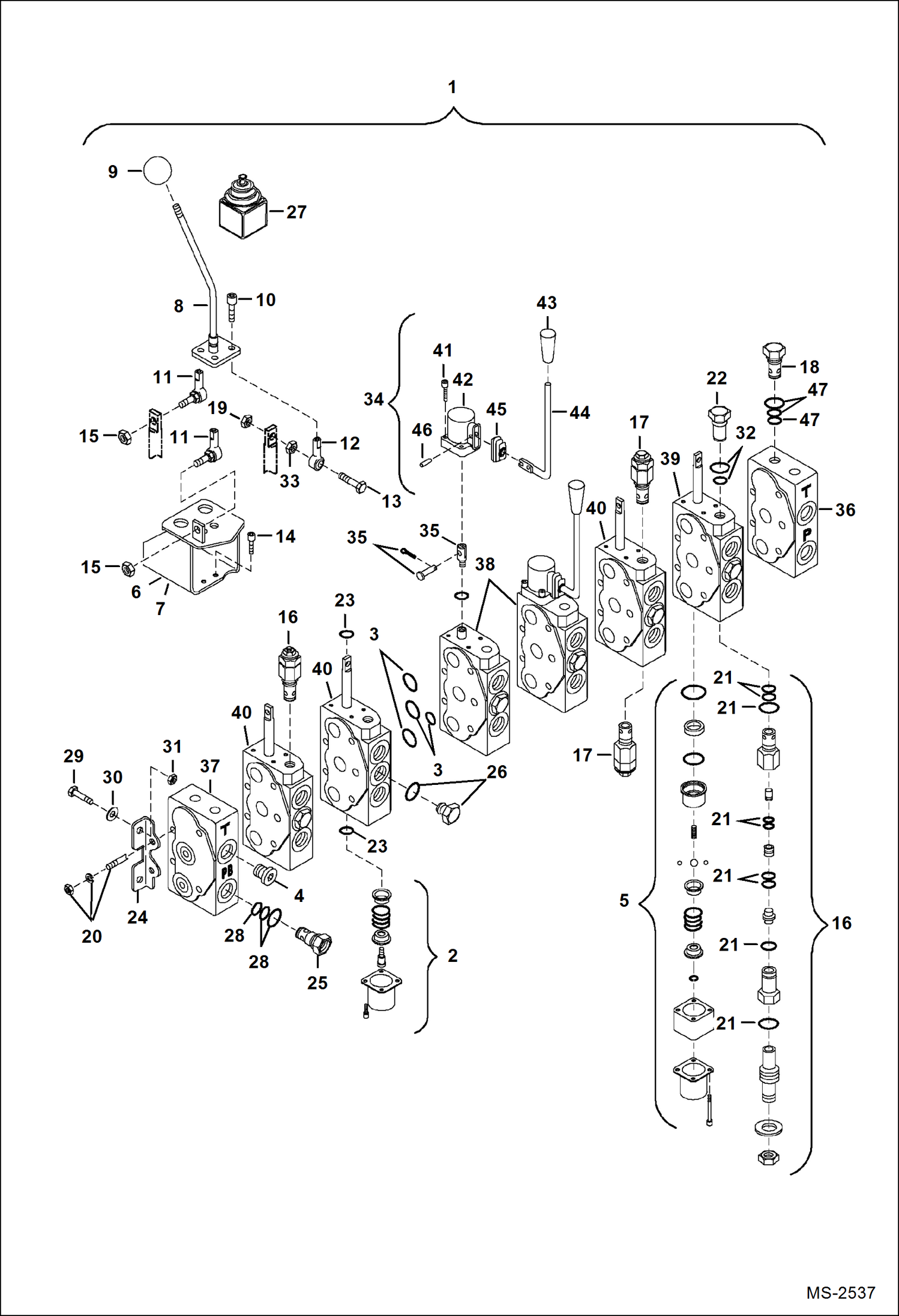

Запчасти Bobcat BACKHOE BACKHOE 6TB (Control Valve) (Sectioned Valve) (A91400101-00532) BACKHOE

1

VALVE, CONTROL See Illustration BACKHOE 6TB/ NA6477 - NLA - Ref. 2-47 - Order 7024524 valve kit - Was 6693763 - A

2

6693765

KIT, POSITIONER

3

6693766

KIT, SEAL VALVE SECTION

4

6693767

PLUG, PORT

5

6693786

VALVE, SECTION FLOAT NLA - Was 6693768 - A

6

6693723

MOUNT, CONTROL RH

7

6693722

MOUNT, CONTROL LH

8

6693721

HANDLE, VALVE

9

6693692

KNOB, HANDLE

10

29G412

BOLT

11

6693655

ROD END

12

6693670

BALL JOINT

13

17C432

BOLT

14

BOLT

15

62D4

NUT

16

6693769

VALVE, PORT RELIEF

17

6693770

VALVE, PORT RELIEF ANTI-CAV

18

6693771

VALVE, MAIN RELIEF

19

85D4

NUT 5 lock

20

6693772

KIT, STUD includes 4 studs and hardware

21

6693773

KIT, SEAL RELIEF VALVE

22

6693774

PLUG, PORT

23

6693775

KIT, SEAL SPOOL

24

6693776

BRACKET, VALVE

25

6693777

SLEEVE, POWER BEYOND

26

6693778

PLUG, LOAD CHECK

27

6693734

BOOT, HANDLE

28

6693779

KIT, SEAL POWER BEYOND

29

17C516

BOLT

30

25E15

WASHER

31

85D5

NUT 5

32

6693780

KIT, SEAL PORT PLUG

33

61D4

NUT 5

34

6693781

KIT, HANDLE

35

6693782

KIT, CLEVIS & PIN

36

6693783

COVER, INLET

37

6693784

COVER, OUTLET

38

6693785

VALVE, SECTION 4 way, 3 position

39

6693786

VALVE, SECTION FLOAT 4 position float

40

6693787

VALVE, SECTION W/ long spool

41

6693788

BOLT

42

6693789

BRACKET, HANDLE

43

6693790

KNOB, HANDLE

44

6693791

HANDLE, VALVE

45

6693792

BOOT, HANDLE

46

6693793

PIN, DOWEL

47

6693764

KIT, SEAL VALVE MAIN RELIEF
