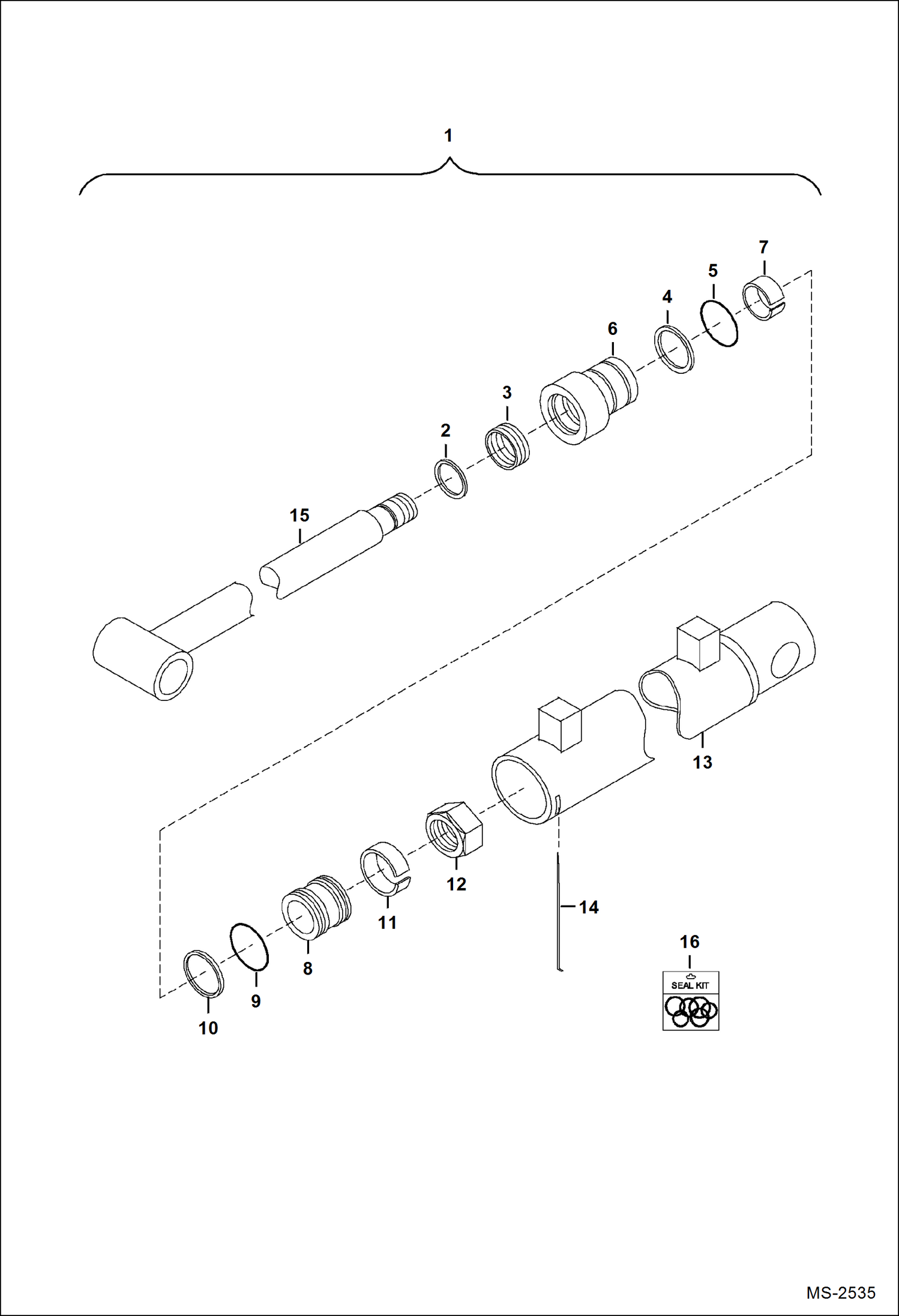

Запчасти Bobcat BACKHOE BACKHOE 6TB (Bucket & Stabilizer Cylinder) (A914) BACKHOE

1

6693700

CYLINDER, BUCKET bucket - W/Ref. 2-15

1

6693693

CYLINDER, STABILIZER stabilizer - W/Ref. 2-15

2

RING NSS - wiper - Order Ref. 16

3

SEAL NSS - V cup - Order Ref. 16

4

RING NSS - backup - Order Ref. 16

5

O-RING NSS - Order Ref. 16

6

6693699

HEAD, CYLINDER cylinder

7

RING NSS - wear - Order Ref. 16

8

6693698

PISTON, CYLINDER

9

O-RING NSS - Order Ref. 16

10

SEAL NSS - piston - Order Ref. 16

11

RING NSS - wear - Order Ref. 16

12

6693701

NUT lock

13

6693703

TUBE, CYLINDER cylinder - bucket

13

6693697

TUBE, CYLINDER cylinder - stabilizer

14

WIRE NSS - retainer - Order Ref. 16

15

6693702

ROD, CYLINDER cylinder - bucket

15

6693696

ROD, CYLINDER cylinder - stabilizer

16

6693695

KIT, SEAL CYLINDER seal - W/Ref. 2-5, 7, 9-11 & 14
