Запчасти Bobcat BACKHOE BACKHOE (Hydraulic Cylinder) (Rear Stabilizer With Replaceable Tube) REAR STABILIZERS

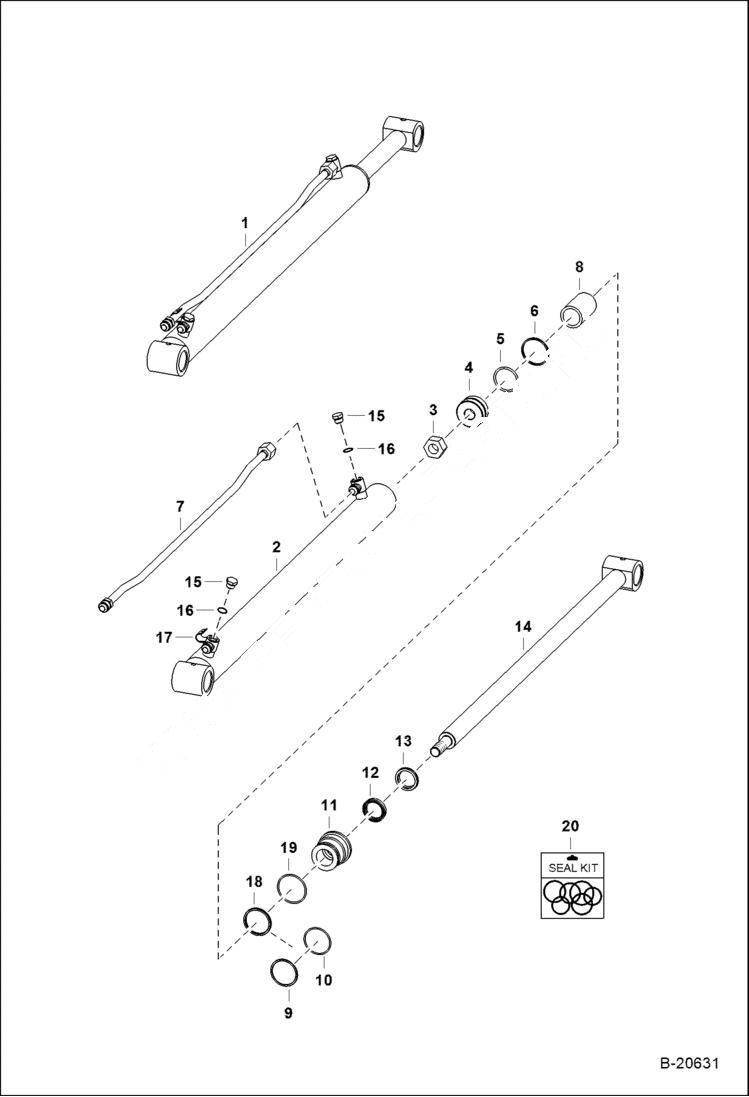

Схема запчастей Bobcat BACKHOE - BACKHOE (Hydraulic Cylinder) (Rear Stabilizer With Replaceable Tube) REAR STABILIZERS

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - Ref. 2-8 - Order 6587789 - Was 6592983 - A

1

6587789

CYLINDER, LIFT

2

CASE NLA - Order 6587792 & 6588189 - Was 6592989 - A

2

6587792

CASE

3

92D12

NUT Was 86D000012B - A

4

6504931

PISTON Was 6558196 - A

5

6516231

SEAL Was NSS - D

6

54K30118

O-RING Was 25K030118B - A

7

6529382

TUBE non inertia welded cyl. - Was 6592984 - A

7

6588189

TUBE for inertia welded cyl.

8

6500892

SPACER

9

54K40124

O-RING Was 25K040124B - A

10

73K224

RING back-up - Was NSS - D

11

6538595

HEAD, CYL HYD Was 6504933 - A

12

6667323

SEAL rod - Was 6704243 - A

13

1657083

WIPER ROD wiper - Was NSS - D

14

6592903

ROD

15

PLUG NLA - flat boss face - Was 47K-2 - A

15

PLUG NLA - tapered boss face - Was 90KV2 - A

15

6812170

PLUG flat boss - hex head

16

79K3

O RING 10 for flat boss face

16

95K3

O'RING for tapered boss face

17

6690910

CLAMP

18

7008781

SEAL, QUAD

19

82K136

O-RING

20

7137771

SEAL KIT Ref. 3, 5, 6, 12, 18, & 19 - Was 6803472 - A

Выбрано товаров: 26
